Application Scenarios
A combined-cycle power plant in the U.S. Gulf Coast region experienced recurring “Node Offline” alarms on its remote cooling tower I/O rack whenever large fan motors started across the yard. The root cause was traced to a degraded remote interface board that could no longer maintain reliable bus synchronization under electrical noise transients. After replacing the faulty unit with a bench-tested 1C31203G01, the plant restored crisp fiber optic communication and eliminated false trip signals during peak generation runs . This scenario illustrates the 1C31203G01‘s role as a critical link in distributed Ovation architectures, where I/O racks for cooling towers, water treatment skids, or remote pump stations must communicate reliably with the central control room despite harsh electrical environments and physical separation.
Parameter

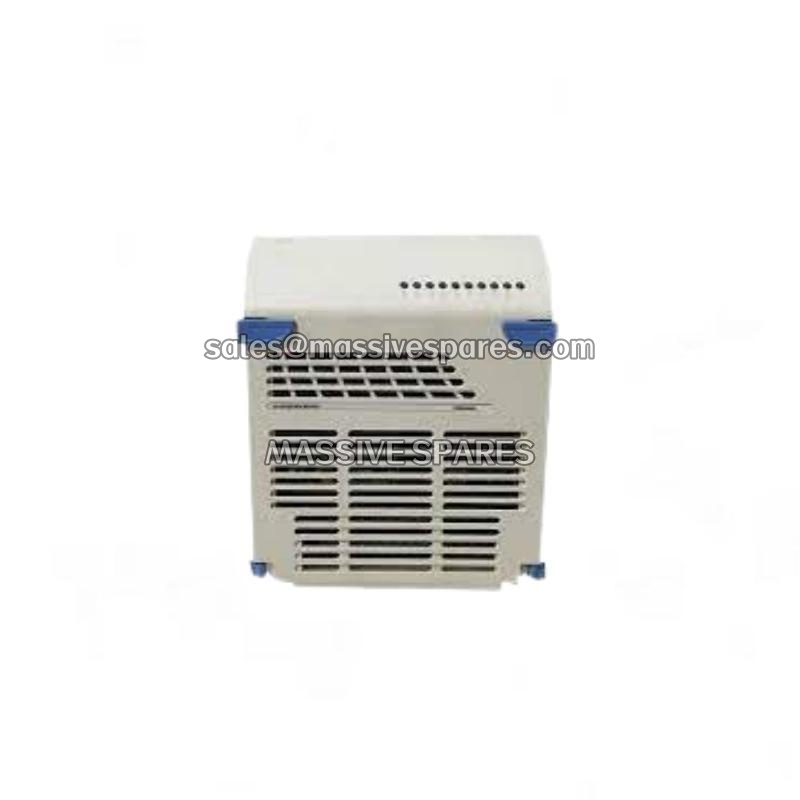

| Parameter | Value/Description |
|---|---|
| Product Model | 1C31203G01 |
| Manufacturer | Westinghouse / Emerson |
| Product Category | Remote Node Controller Electronics Module (EMOD) |
| System Compatibility | Ovation™ DCS |
| Communication Media | Fiber optic link to remote I/O controller |
| Power Supply | 24 VDC from Ovation backplane |
| Power Output | Provides +5 V for the module |
| I/O Module Capacity | Up to 8 I/O modules per node |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 12.1 cm × 5.1 cm × 14.0 cm |
| Weight | Approximately 0.3 kg |
| Mounting | Ovation I/O base (electronics module) |
| Typical Pairing | Requires matching personality module (e.g., 1C31204 series) |
Technical Principles and Innovative Values
Innovation Point 1: Fiber Optic Communication for Electrical Isolation. The 1C31203G01 uses fiber optic media for communication between the remote node and the central Ovation controller, providing galvanic isolation that copper-based solutions cannot match. This design eliminates ground loop currents and common-mode voltage issues that plague long-distance copper runs in industrial settings, ensuring reliable data transmission even across electrically noisy plant environments .
Innovation Point 2: Integrated Remote Node Logic and Field Board Functions. The 1C31203G01 houses both the Remote Node Logic Board (LND) and Field Board (FND) functions within a single electronics module. The LND manages message preparation and +5 V power regulation, while the FND handles the interface to local I/O modules. This integration reduces component count, simplifies troubleshooting, and provides a single replacement point for remote node communication failures .
Innovation Point 3: Deterministic Message Handling for Real-Time Control. The 1C31203G01 prepares messages received from the remote I/O controller for local I/O module consumption and packages response data for high-speed transmission back to the controller. This store-and-forward architecture ensures that remote I/O operations maintain deterministic timing despite the physical separation from the main processor, critical for control loops that cannot tolerate variable latency .
Innovation Point 4: Designed for Legacy Ovation System Continuity. As a discontinued component, the 1C31203G01 remains available through specialized surplus and repair channels, enabling power plants and water treatment facilities to maintain their existing Ovation installations without costly system-wide upgrades. The module’s compatibility with established Ovation backplanes and personality modules preserves capital investment in legacy control infrastructure .
