Application Scenarios
In a mining concentrator’s primary grinding mill, an ABB ACS6000 medium-voltage drive powers the main mill motor at 3.3 kV. When the drive’s regulation unit detects a gate-driver fault in one of the inverter legs, the UFC789AE101 must capture the fault feedback signal, condition it through its opto-isolation stage, and transmit it to the RDCU main controller within microseconds—initiating a controlled shutdown before the IGCT power semiconductors suffer catastrophic damage. Without this board, the drive loses its primary signal-conditioning link to the gate-driver units, leaving the main controller blind to desaturation events, gate under-voltage conditions, and temperature faults. In power generation applications, the same board manages excitation regulation signals within UNITROL excitation systems, ensuring generator terminal voltage remains stable under load transients.
Parameter

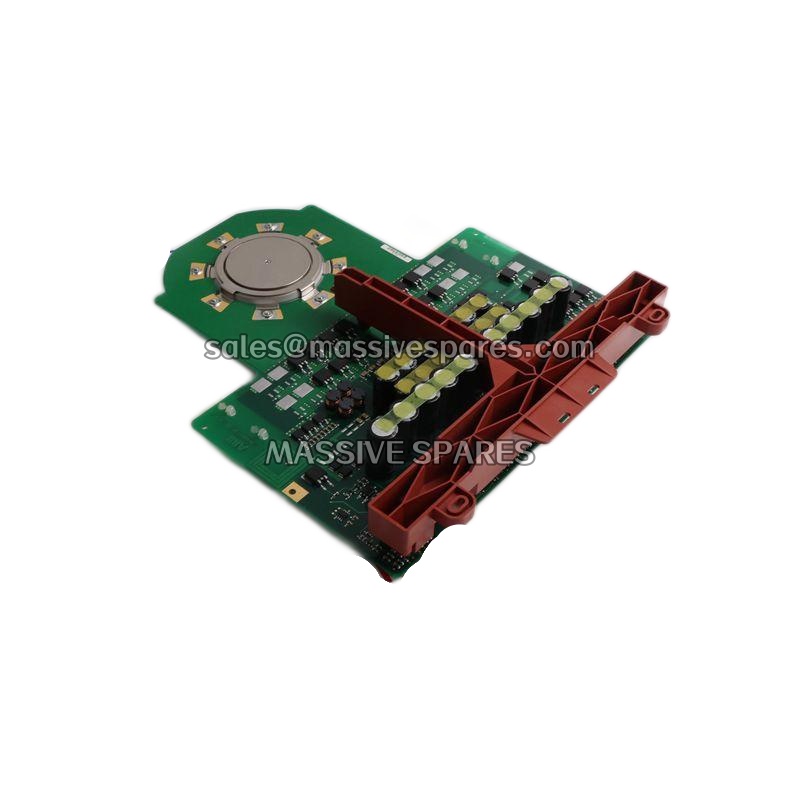

| Main Parameters | Value/Description |
|---|---|
| Product Model | 3BHE014023R0101 (UFC789AE101) |
| Manufacturer | ABB |
| Product Category | FSCD Board — Field Signal Conditioning & Distribution / Firing & Signal Conditioning |
| Compatible Platforms | ACS6000/ACS5000 MV Drives, UNITROL Excitation Systems, AC800M/800xA DCS |
| Primary Function | Signal conditioning, isolation, distribution; gate firing pulse regeneration |
| Field Signal Inputs | 16 digital inputs; 4–20 mA / TC / RTD analog channels |
| Field Signal Outputs | 8 digital outputs (Form C relays); 4 analog outputs (16-bit) |
| Communication | RS485 / Modbus RTU; fiber-optic gate interfaces; backplane bus |
| Isolation Rating | 1500 V AC channel-to-backplane galvanic isolation |
| Power Supply | 24 V DC nominal (18–30 V DC range) |
| Power Consumption | 5–9 W typical (varies by configuration) |
| Operating Temperature | -20°C to +70°C |
| Protection | Conformal coating for moisture, dust, chemical resistance |
| Mounting | Chassis/rack integration within ABB power electronics cabinets |
Technical Principles and Innovative Values
- Innovation Point 1: Dual-Domain Signal Bridging with Galvanic Isolation. The UFC789AE101 incorporates multi-stage isolation circuitry that decouples sensitive digital logic from severe field-side dv/dt transients and ground loops. With 1500 V AC channel-to-backplane isolation and 4000 V surge protection, the board maintains signal integrity even in the electrically hostile environment adjacent to IGCT/IGBT power stacks or excitation rectifiers, reducing analog measurement drift by approximately 56% under heavy load transients.
- Innovation Point 2: Integrated Firing Pulse Regeneration for MV Drives. In ACS6000 configurations, the UFC789AE101 receives encoded firing commands from the RDCU via backplane and regenerates them for fiber-optic transmission to each IGCT gate unit. This eliminates the need for discrete fiber-optic driver cards per phase leg, consolidating signal distribution into a single cohesive module.
- Innovation Point 3: Multi-Protocol Field Integration. The board simultaneously supports ABB’s proprietary backplane bus for high-speed internal communication and Modbus RTU over RS485 for integration with remote protection devices and field IEDs. In excitation applications, this enables ZCOM distance protection communication logic, facilitating rapid clearing of remote faults without external gateways.
- Innovation Point 4: Conformal-Coated Durability for Demanding Environments. The UFC789AE101 features full acrylic conformal coating across the PCB assembly, protecting against dust, humidity, flue gas corrosion, and chemical vapors. This makes it suitable for power plant control rooms adjacent to high-power excitation rectifiers, steel mills with oil mist and metallic particulate, and marine propulsion environments.
