Application Scenarios
In a gas turbine-driven compressor train, the control system must continuously verify that the turbine is rotating in the correct direction and that shaft speed remains within safe limits. During startup, if the turbine begins rotating in reverse due to a steam or gas leak, or if speed feedback is lost, the protection system must detect the condition and initiate a trip before bearing damage occurs. The A6312/08 addresses this by monitoring each channel independently, detecting zero speed, reverse rotation, and keyphasor events with microsecond-level precision . For plant operators, the module’s redundant sensor configuration provides an additional layer of assurance: if the primary speed probe fails, the A6312/08 automatically switches to the backup sensor without interrupting protection coverage, maintaining phase continuity for vibration analysis .
Parameter
| Main Parameters | Value/Description |
|---|---|

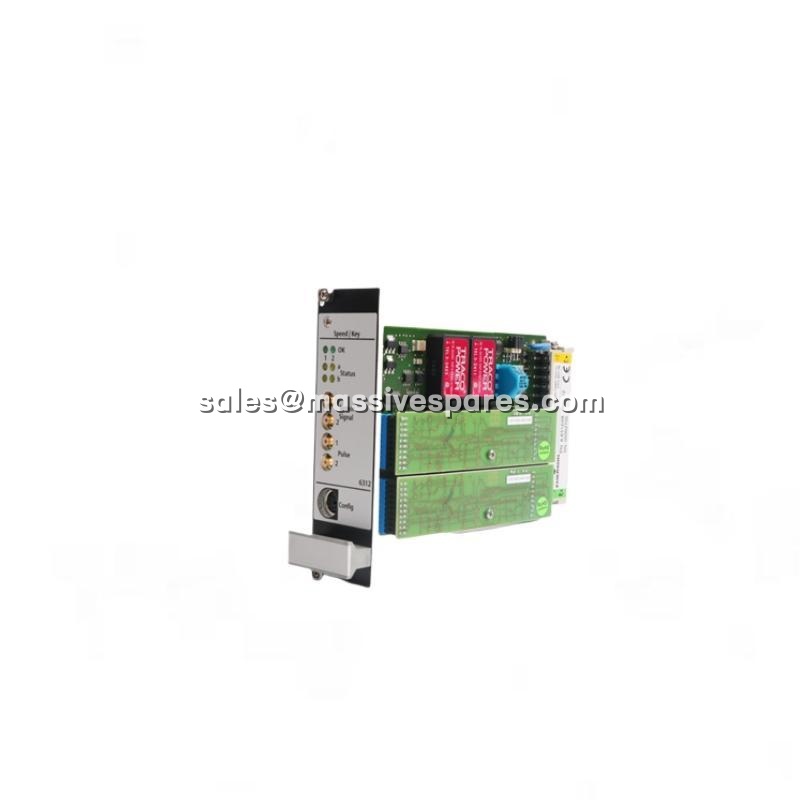

| Product Model | A6312/08 |
| Manufacturer | Emerson (EPRO) |
| Product Category | Dual-Channel Speed and Key Monitor |
| System Compatibility | AMS 6500, CSI 6500, IMR 6000 |
| Input Channels | 2 independent channels |
| Input Frequency Range | 0 to 20,000 Hz, up to 65,535 RPM |
| Input Voltage Range | 0 to ±27.3 VDC |
| Sensor Type | Eddy current probes (PR642x), Hall-effect sensors (PR9376) |
| Sensor Supply | -26.75 VDC nominal, independent buffered |
| Outputs | 0/4-20 mA per channel, TTL pulse up to 20 kHz, front buffered ±10 V |
| Isolation | Galvanically isolated from supply and system |
| Front Indicators | Green LEDs (channel OK), Yellow LEDs (alert/danger) |
| Mounting | 3U, 8HP plug-in module for 19-inch rack |
| Dimensions | Approximately 128 × 40 × 190 mm |
| Weight | 0.28 kg |
| Compliance | API 670, hot-swappable |
Innovation Point 1: Dual-Channel Independent and Combined Operation. The A6312/08 supports both independent and combined channel configurations. Each channel can measure speed or keyphasor signals from separate shafts, or the two channels can work together to detect rotation direction or speed difference between two trigger wheels . This flexibility allows a single module to replace multiple dedicated monitors, reducing cabinet space by half compared to traditional four-channel 6U cards .
Innovation Point 2: Redundant Sensor Switching with Phase Continuity. When configured for redundant mode, the A6312/08 continuously monitors sensor gap voltage and pulse integrity. If the primary sensor signal degrades, the module automatically switches to the backup sensor . Critically, the main and failover sensors must be installed in the same axial plane to preserve phase continuity during switchover—ensuring that vibration analysis data remains valid across the transition .
Innovation Point 3: Comprehensive Self-Diagnostics and Sensor Health Monitoring. The A6312/08 performs continuous self-checks on internal hardware, power input, hardware temperature, sensor condition, and cable integrity . These diagnostics detect developing faults before they cause false trips or missed protection events, allowing maintenance to act on sensor degradation during planned windows rather than during unplanned shutdowns.
Innovation Point 4: High-Frequency Capability for Fast-Rotating Machinery. With an input frequency range extending to 20,000 Hz, the /08 accommodates high-speed turbomachinery applications including gas turbines and centrifugal compressors where rotational speeds can exceed 30,000 RPM depending on trigger mark configuration .
