Application Scenarios
In a pumped-storage hydroelectric unit, the static frequency converter must start a large synchronous machine as a motor, ramp it smoothly, and then transition to generator mode—all while the converter valve stack is exposed to high dv/dt, high di/dt, and the constant vibration of a powerhouse. A conventional discrete-IGBT-and-snubber design would need dozens of components, several series-connected devices, and an external free-wheeling diode per switch position. Here, the 5SHX1060H0003 reverse-conducting IGCT replaces that complexity with a single press-pack device whose free-wheeling diode is already integrated into the chip. Its matched gate unit 3BHB020538R0001 supplies precisely timed, high-current gate pulses and monitors the device during every switching event. For the asymmetric topology used in other bridges, the 5SGX1060H0003 is paired with the GVC714A101 driver (3BHE024415R0101, code 5SXE07-0164), which accepts fiber commands from the converter controller and reports gate status and faults back optically. The result is a valve stack that switches hard without an RC snubber, stays synchronized across series-connected devices, and identifies a failed device instead of simply tripping the whole converter.
Parameter
| Main Parameters | Value/Description |
|---|---|

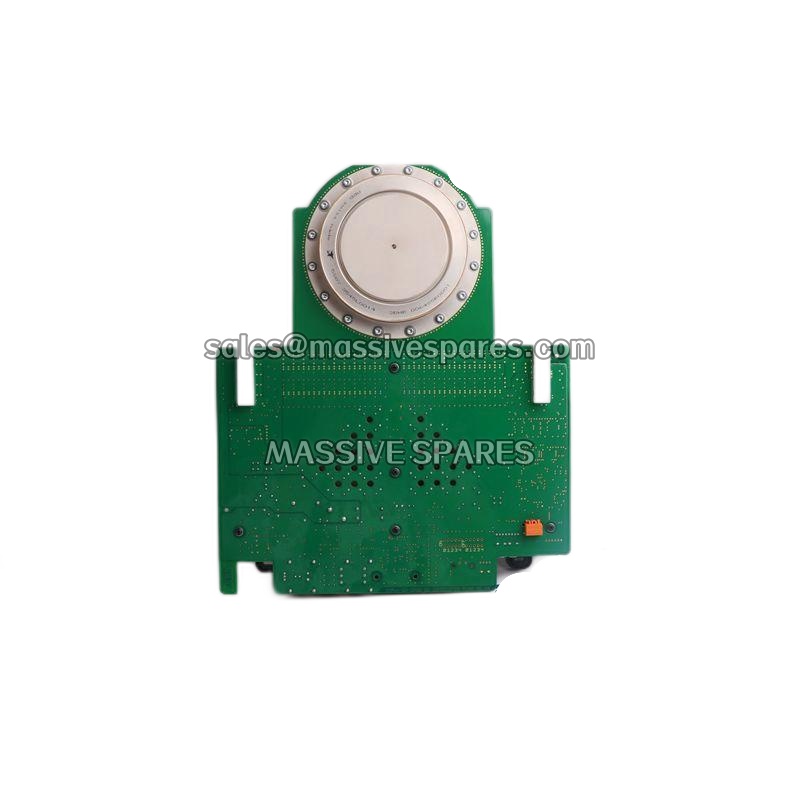

| Product Models | 3BHB020538R0001 / 5SHX1060H0003; 3BHE024415R0101 / GVC714A101 / 5SGX1060H0003 / 5SXE07-0164 |
| Manufacturer | ABB Switzerland Ltd. (ABB Semiconductors) |
| Product Category | IGCT power pellet + matched gate-drive / valve-control board |
| Power Device Type | 5SHX1060H0003 = Reverse-Conducting (RC) IGCT; 5SGX1060H0003 = Asymmetric IGCT (external free-wheeling diode required) |
| Voltage Class | 6 kV class (repetitive peak off-state voltage VDRM approx. 5500–6500 V per device family) |
| Rated Current | 1060 A (drive-bridge nominal; average on-state current at specified case temperature) |
| Surge Current Capability | Very high short-term surge rating (kA class), device-family dependent |
| Turn-off Time | ≤ 1 µs for the RC-IGCT family; matched gate timing for fast protection |
| Switching Frequency | Up to 500 Hz hard switching; higher in soft-switching topologies |
| Gate Driver Supply | 24 V DC (±10%), supplied by the power-unit auxiliary supply |
| Signal Interface | Fiber-optic RX for PWM; optically isolated fault and status feedback |
| Isolation | Optical isolation between control side and high-voltage power side; ≥ 2.5–6 kV isolation class depending on driver revision |
| Protection Functions | Desaturation (DESAT) detection, overcurrent / short-circuit, undervoltage lockout, gate-fault monitoring |
| Mounting (IGCT) | Press-pack, high-force clamping to heatsink; double-sided cooling, liquid-cooled in most installations |
| Mounting (Driver) | Plug-in / DIN-rail or power-unit slot mounting (GVC714A101 / 5SXE07-0164) |
| Driver Status Indication | On-board LEDs (READY / RUN / FAULT) per driver revision |
| Operating Temperature | Driver: –20 °C to +60 °C; IGCT case: –25 °C to +70 °C (junction rating higher) |
| Protection Rating | IP00 for press-pack pellet; IP20 for driver board (cabinet installation) |
| Dimensions / Weight | Driver board approx. 278 × 195 × 60 mm, approx. 1.5 kg; IGCT pellet approx. 1.3–1.7 kg |
Note: Voltage, current, and switching figures vary between the 5SHX (RC) and 5SGX (asymmetric) device families and by chip revision. Always confirm the code on the device label and the power-unit BOM before ordering or making a substitution.
Technical Principles and Innovative Values
- Innovation Point 1 — Two IGCT topologies, one driver platform. The GVC714A101 driver family covers both the 5SHX1060H0003 reverse-conducting IGCT and the 5SGX1060H0003 asymmetric IGCT. The critical difference is built into the pellet: the RC device carries current in both directions with no external diode, while the asymmetric device needs an external free-wheeler. Using the right topology for the bridge saves components and prevents unexpected phase-arm behavior.
- Innovation Point 2 — Integrated reverse conduction. The 5SHX1060H0003 builds the anti-parallel free-wheeling diode into the same chip. That removes an entire external diode, its connections, and a source of stray inductance—something a conventional “IGBT plus separate diode” stack cannot offer in the same footprint.
- Innovation Point 3 — Snubberless hard switching. With sub-microsecond turn-off and tightly controlled gate drive from the 3BHB020538R0001, the RC-IGCT family switches without the bulky RC snubber networks GTO designs require. Fewer parts mean fewer failure points, less cabinet volume, and lower losses.
- Innovation Point 4 — Fiber-optic control in a noisy environment. The GVC714A101 receives PWM commands as light pulses and reports gate status optically. In a medium-voltage converter, where a single switching edge can disturb nearby wiring, this eliminates ground loops and keeps gate timing clean.
- Innovation Point 5 — Fast hardware-level protection. Desaturation, overcurrent, short-circuit, undervoltage, and gate-fault detection react in microseconds—far faster than a protective breaker. A single device failure is contained instead of cascading into a whole valve-stack loss.
- Innovation Point 6 — Press-pack reliability under thermal cycling. Both IGCT variants use a disc-type press-pack package clamped between heatsink surfaces. With no solder joints to fatigue, the design handles the thermal cycling and vibration of continuous heavy industrial duty far better than conventional soldered modules.
