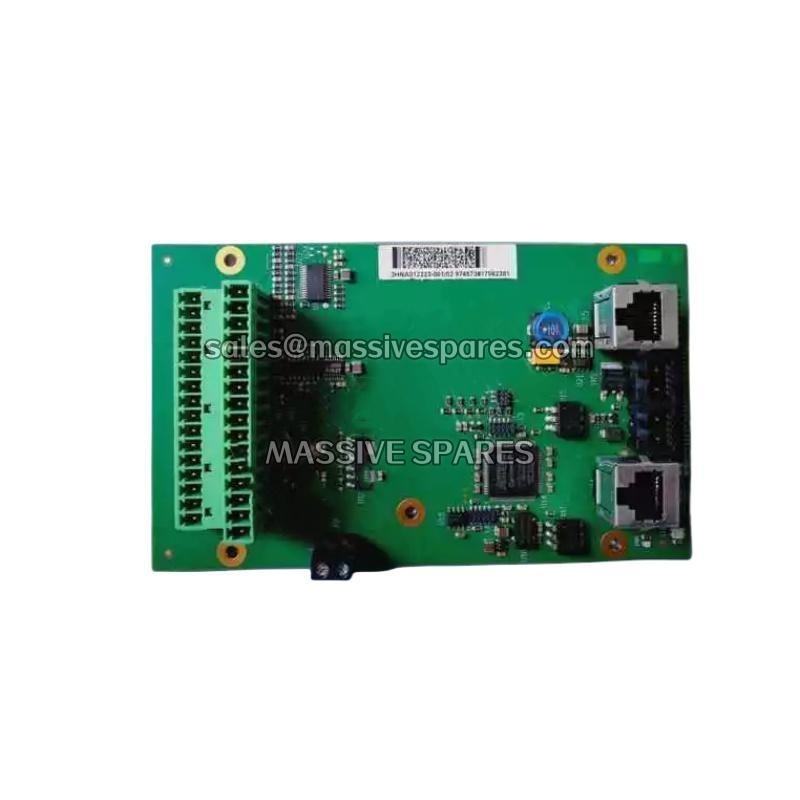

ABB 3BHE034863R0001 UDC920 BE01 Drive Controller PCB, Drop-In Replacement

Description

The ABB 3BHE034863R0001, board-level designation UDC920 BE01​ (type designation often rendered as UD C920 BE101), is a control and communication PCB assembly manufactured by ABB and supplied as a complete shielded module rather than a bare board. It is the interface intelligence of ABB medium-voltage drive and excitation platforms: depending on the firmware burned into it, the same hardware serves as the ASE2B control module in ACS2000​ and ACS6000​ drives, as a communication gateway in UNITROL 5000/6000​ excitation systems, and as a control node in AC 800PEC​ power-electronics racks .

In plain terms, 3BHE034863R0001​ sits between the drive’s main controller and the outside world. It conditions encoder, current, voltage, and auxiliary switch signals; runs the control loops and safety interlocks; and packages drive data onto Modbus, PROFIBUS, or industrial Ethernet for the plant DCS. The metal housing is not cosmetic—it is the EMI shield that keeps a 27 MW IGCT inverter from mistaking its own switching noise for a fault . For the maintenance engineer, that distinction is the whole story: this is the card to suspect when the drive reports “controller fault” while every cable and sensor tests clean .

Application Scenarios

A 600 MW coal-fired unit schedules a 72-hour outage. The induced-draft fan is driven by an ABB ACS6000​ medium-voltage drive, and during the pre-start check the DCS shows a stale “drive ready” bit while the local HMI displays a controller-fault code. The electrical team spends four hours chasing the fiber link, the gate units, and the encoder before finding the culprit: the UDC920 BE01​ in the control rack, whose BGA solder joints have fatigued after years of daily thermal cycling. Fan speed is correct, torque control is correct—the signal simply never leaves the rack.

Replacement with a verified ABB 3BHE034863R0001​ restores the link in under twenty minutes. Cooling-fan run status, bearing-temperature switches, vibration trips, breaker-closed feedback, and the 4–20 mA speed and current values all flow again to the DCS, and the high-voltage breaker closing sequence completes without a retry. More importantly, the plant avoids a post-outage start delay that, at full load, costs far more than the board itself. This is the quiet value of 3BHE034863R0001: it is the component that turns a drive from an isolated cabinet into a visible, trustworthy node on the control network—and eliminates the “data island” that turns a process upset into a scramble.

Parameter
