Description

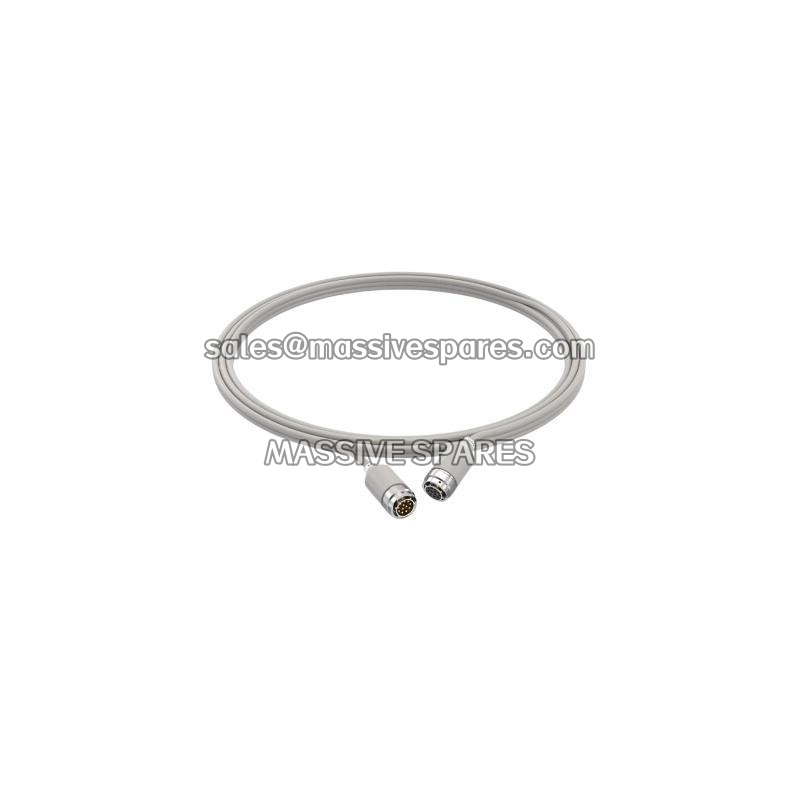

The ABB 3HAC2530-1 is an ABB-branded 15-meter control signal cable, also described in spare-parts listings as “Control cable, signal, 15 m.” It is an interconnecting cable rather than a controller, drive, motor, encoder, or complete robot harness. In a typical ABB robotics application, the 3HAC2530-1 links control-cabinet, controller, or panel-side interfaces where signal integrity, shielding continuity, connector orientation, and correct pinout are more important than conductor cross-section alone.
Application Scenarios
An automotive body shop planned a weekend changeover: a robotic welding cell was being repositioned, the controller cabinet was relocated farther from the safety and control interface, and the original signal lead was too short and showed insulation abrasion near a cable tray edge. Purchasing a generic 15 m cable would have introduced unknown connector compatibility, shielding discontinuity, and an unverified pinout. Instead, the maintenance engineer specified the ABB 3HAC2530-1 by full part number and cross-checked the controller type, connector gender, mating harness, cable routing, and spare length.
The real value was risk control. Robot control and safety signals share an environment with welding transformers, servo drives, contactors, pneumatic valves, and high-flex motion cables. A poorly shielded or incorrectly pinned cable can produce intermittent faults that are difficult to distinguish from controller, I/O, or field-device failures. A verified 3HAC2530-1 replacement preserves the intended signal path, reduces commissioning variables, and allows the cell to return to production with a documented spare and tested loop.
Parameter
| Main Parameter | Value / Description |
|---|---|
| Product Model | 3HAC2530-1 |
| ABB Description | Control cable, signal, 15 m |
| Manufacturer | ABB |
| Product Category | Control / signal interconnect cable |
| Nominal Length | 15 m (49.2 ft) |
| Conductor Construction | Not verified; confirm from ABB wiring/cable data |
| Conductor Cross-Section | Not verified; do not assume AWG or mm² without the cable spec |
| Number of Cores / Pairs | Not verified; may differ by production revision |
| Shielding | Not verified for this exact cable; use only if confirmed by ABB drawing |
| Jacket Material | Not verified; likely industrial PVC or PUR in robotics context, but unconfirmed |
| Connector Type | Not verified; connectors must be matched to the exact application |
| Pinout / Wiring Code | Not verified; never re-pin without the approved circuit/wiring diagram |
| Voltage / Current Rating | Not verified; determine from signal type and ABB documentation |
| Impedance / Attenuation | Not verified; not assumed to be a high-frequency data cable |
| Bending Radius | Not verified; follow ABB and robot-cell cable-routing guidance |
| Temperature Range | Not verified; confirm for fixed routing and any dynamic-exposure zone |
| Oil / Chemical Resistance | Not verified; confirm jacket and connector-seal rating |
| Flame / Smoke Rating | Not verified; verify against local electrical and machinery codes |
| Flex / Torsion Rating | Not verified; fixed control-cabinet use and continuous-flex robot motion are different ratings |
| IP Rating | Not verified; depends on connector, gland, and termination, not cable alone |
| Color / Identification | Not verified; label both ends with circuit, source, destination, and spare ID |
| Certifications | Not verified; request declaration of conformity and RoHS/REACH status |
| Lifecycle Status | Not verified; confirm current spare availability with ABB or authorized channel |
