ABB S200-TB3 Terminal Block – Integrated 0V and +24V Sensor Supply

Product Overview

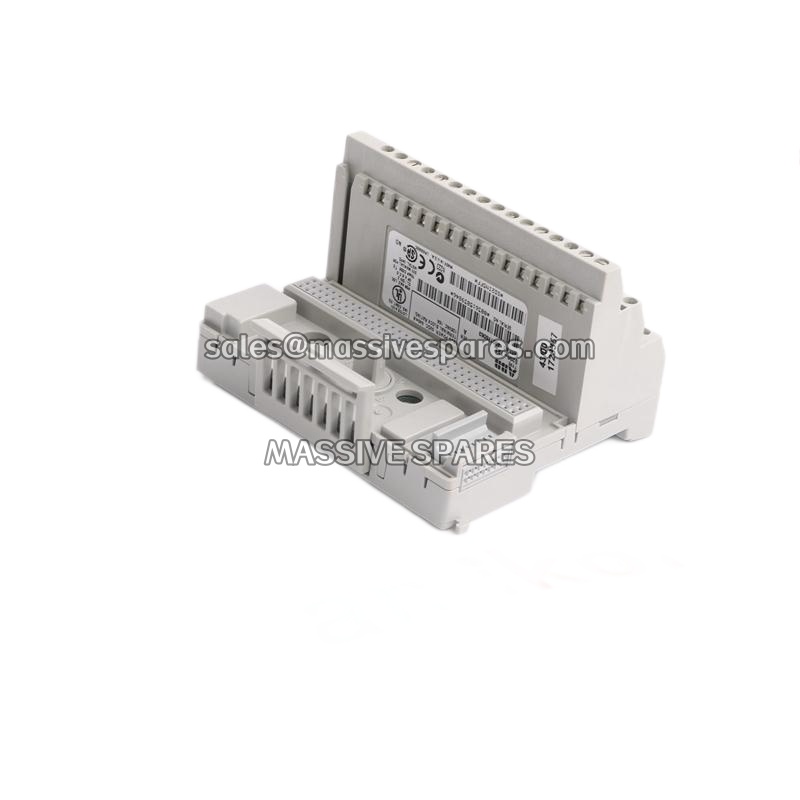

The ABB 200-TB3 is a modular terminal base unit designed for the S800 distributed I/O system, serving as the physical interface between field wiring and I/O modules within ABB AC800M and Advant OCS control platforms. The 200-TB3 functions as the mounting foundation for S800 I/O modules, providing a structured termination point for 2-wire and 3-wire field devices while simultaneously distributing power to connected sensors. Unlike standalone terminal blocks that require separate power distribution wiring, the ABB 200-TB3 integrates signal, common, and power connections into a single organized component.

The 200-TB3 features a distinctive three-row screw terminal architecture that eliminates the need for external terminal strips and power distribution blocks within the control cabinet. The upper row provides 16 terminals for individual input/output signals, the middle row offers 18 internally connected 0V DC terminals, and the lower row supplies 18 internally connected +24V DC terminals for sensor power. The ABB 200-TB3 incorporates a code key mechanism that prevents insertion of incorrect I/O modules into a preconfigured base, ensuring system integrity and preventing accidental module mismatches during maintenance.

The 200-TB3 supports true hot-swap maintenance capability, allowing I/O modules to be replaced without disturbing field wiring. When a module requires replacement, the terminal base remains securely mounted and wired to field devices while only the electronic module is removed and exchanged. This design significantly reduces system downtime and eliminates the risk of wiring errors during emergency repairs, making the ABB 200-TB3 a cornerstone component for industrial automation systems requiring high availability and maintainable I/O infrastructure.
