Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

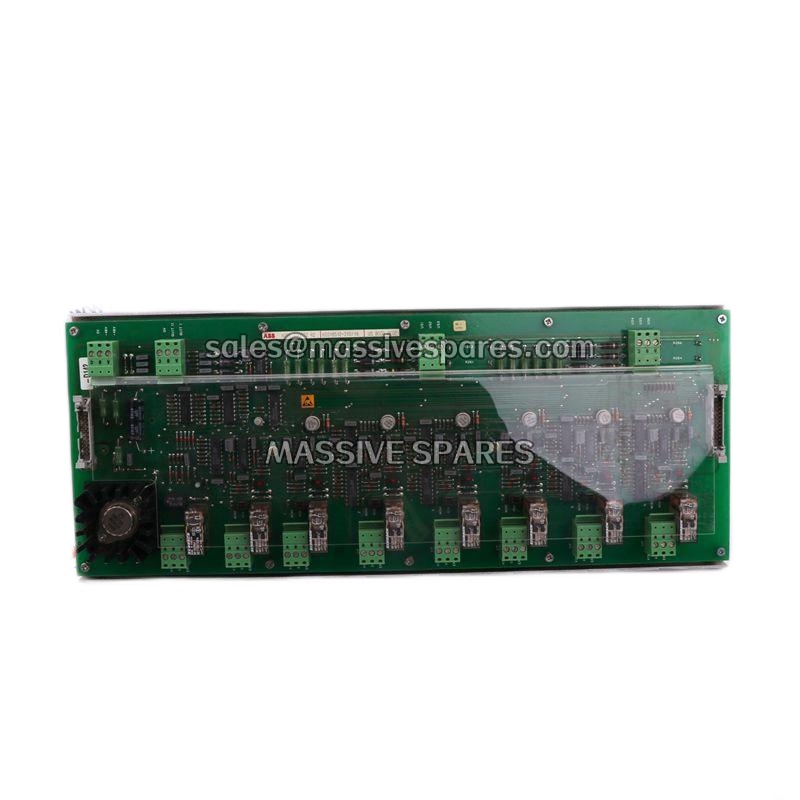

| Product Model | ABB 3BHE004573R0143 UFC760BE143 |
| Manufacturer | ABB |
| Product Type | Power Unit Interface / Signal Pre-Processing Board (PFF/PUB) |
| Product Family | UFC760 Series |
| Compatible Systems | ACS6000 MV Drives, UNITROL Excitation Systems |
| Paired Upper Board | UFC760BE142 INU Board (3BHE004573R0142) |
| Supply Voltage | 24 V DC (rack backplane control power) |
| Power Consumption | Approx. 18 W |
| Processing Core | Dual-DSP hard-real-time processing |
| Signal Acquisition | Isolated analog (IGCT temp, DC bus voltage, cooling parameters) + Digital fault inputs |
| Isolation Method | Full galvanic isolation (optocoupler-based) |
| Communication | Internal MSC backplane bus to INU board |
| Operating Temperature | −20°C to +60°C |
| Protection Rating | IP20 with conformal coating |
| Weight | Approximately 0.5 kg |
Main Features and Advantages
The ABB 3BHE004573R0143 UFC760BE143 delivers a combination of signal acquisition precision, hardware-level protection, and system integration capabilities specifically engineered for the demanding environment of medium-voltage drive cabinets.
Dedicated signal pre-processing architecture: The ABB UFC760BE143 handles power unit signal acquisition independently from the main control CPU, collecting IGCT drive signals, overtemperature indicators, short-circuit fault contacts, and cooling system data before performing filtering and analog-to-digital conversion. This distributed processing approach reduces the computational burden on the UFC760BE142 INU mainboard and enables faster overall system response to fault conditions. The board‘s dual-DSP architecture ensures deterministic hard-real-time processing, a critical requirement for protective functions where microseconds determine whether a fault remains contained or propagates into a full drive trip .
Hardware fault pre-latching protection: Unlike software-based fault handling that may be subject to execution delays or interrupt latency, the ABB 3BHE004573R0143 incorporates hardware-level fault pre-latching. When the board detects a critical power unit fault—such as a fiber-optic drive pulse failure or IGCT overtemperature condition—it latches the fault state locally and records sequence-of-event timing. This mechanism prevents signal jitter or transient noise from generating false trip decisions while ensuring that genuine fault events are captured with precise timing information for post-event analysis .
Full galvanic isolation: The ABB UFC760BE143 employs optocoupler-based galvanic isolation on all analog and digital channels, providing robust protection against common-mode interference prevalent in medium-voltage cabinets where power electronics switching generates substantial electrical noise. This isolation ensures that signal integrity is maintained even when the board operates in close proximity to IGCT power stacks and their associated high-voltage switching transients .
Form-factor and maintenance design: The ABB 3BHE004573R0143 is constructed as a VME-standard plugin PCB with conformal coating for environmental protection. Its hot-swappable design allows replacement within approximately 30 minutes without disturbing other drive components, minimizing downtime in applications where production continuity is paramount .
