Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

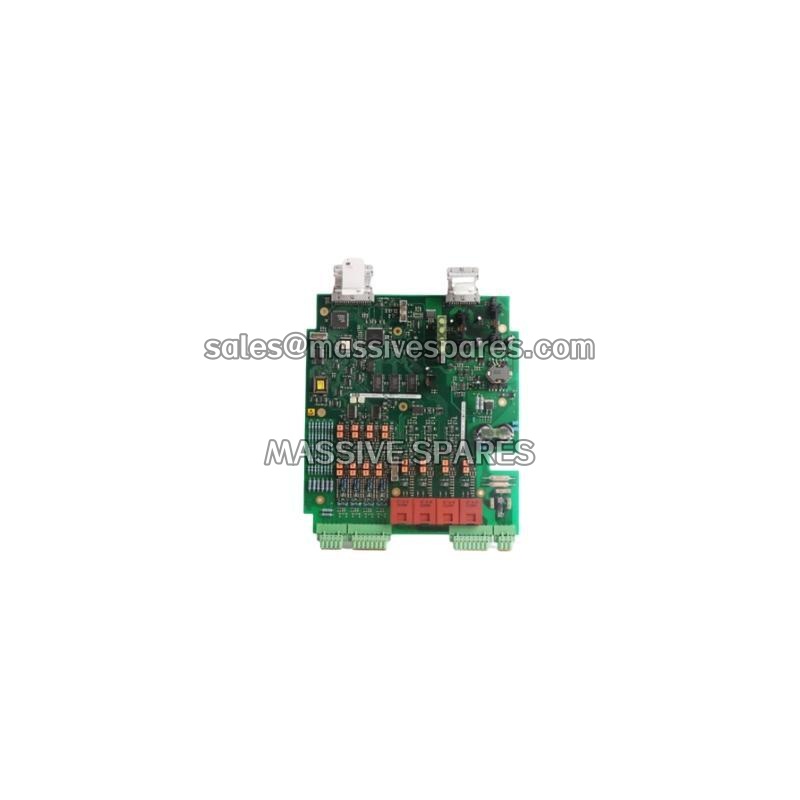

| Product Model | ABB 3BHE009319R0001 |
| Commercial Designation | UNS2881B-P V1 |
| Manufacturer | ABB |
| Product Type | MUB (Main Unit Board) PCB Completed |
| Product Series | UNITROL / Power Electronics Control |
| Country of Origin | Switzerland |
| Supply Voltage | 24V DC ±10% |
| Input Voltage Range | 18–30V DC |
| Input Current | 0.8A typical |
| Output Voltage | 5V DC / 12V DC |
| Operating Temperature | -10°C to +70°C |
| Communication Interfaces | RS-485, CANopen, Ethernet, Fiber-Optic |
| Weight | 0.59 kg (590g) |
| Dimensions | 255 mm × 28 mm × 31 mm (W × H × D) |
Main Features and Advantages
Real-Time Processing Architecture: The ABB 3BHE009319R0001 incorporates a high-speed embedded processing core specifically optimized for real-time mathematical calculation of power electronics control loops and regulation tasks . This architecture enables the ABB UNS2881B-P V1 to execute complex automatic voltage regulator (AVR) algorithms and thyristor firing sequence coordination with microsecond-level response, critical for maintaining stable generator excitation under dynamic grid conditions.
Deterministic Backplane Communication: The ABB UNS2881B-P V1 interfaces directly with host subrack backplanes to support deterministic signal transmission across internal controller networks . Onboard component architecture maintains strict firmware flash compatibility with host excitation and converter software packages, preventing transmission latencies during real-time scan cycles and ensuring synchronized operation across multi-node bus systems.
Galvanic Isolation and EMC Protection: The ABB 3BHE009319R0001 features built-in electrical isolation barriers engineered to safeguard sensitive processor electronics from high-voltage field-side switching transients and ground spikes . The board also carries a high-grade conformal coating that resists dust, moisture, and extreme electromagnetic interference, ensuring reliable operation in the electrically noisy environments typical of excitation cabinets and medium-voltage drive panels.
Comprehensive Diagnostic Array: The ABB UNS2881B-P V1 includes integrated front-panel LED indicators providing instant visual tracking of module power status, network communication activity, and active fault codes . This diagnostic capability enables maintenance personnel to quickly assess board health and identify fault conditions without requiring external test equipment.
