Product Overview

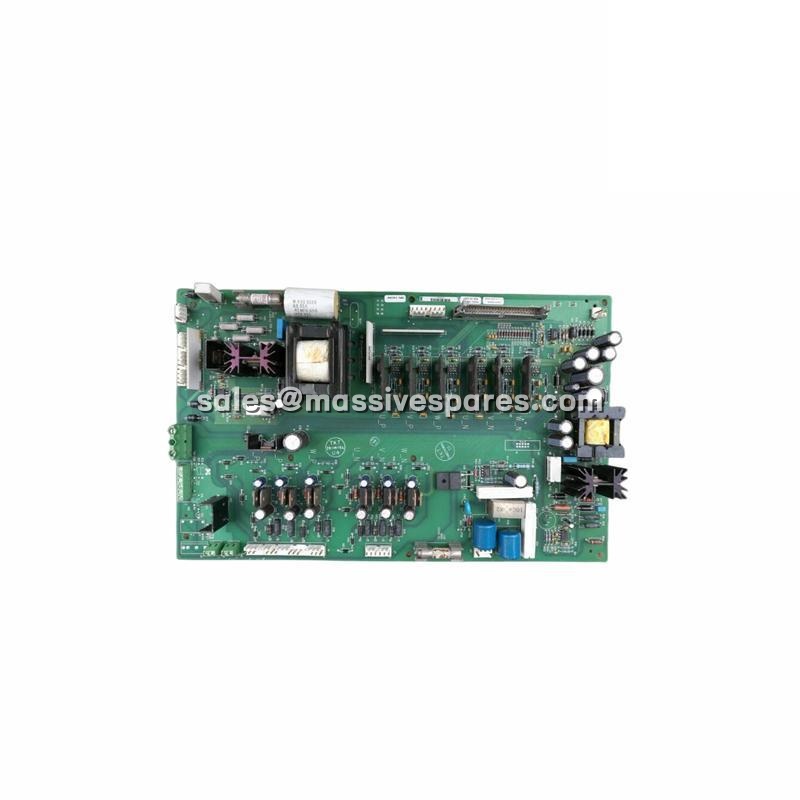

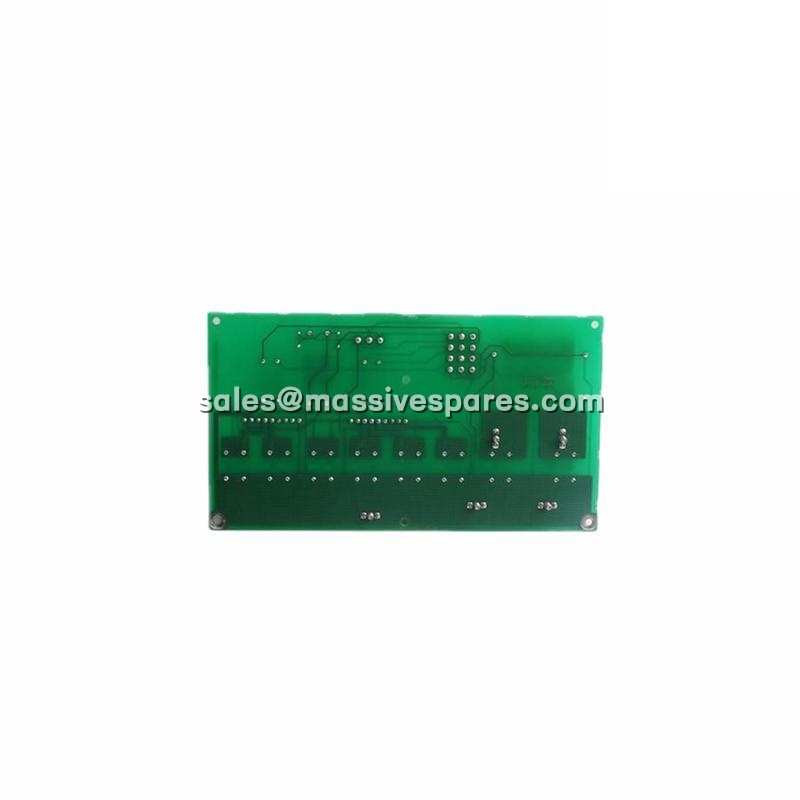

The Allen-Bradley 1336-BDB-SP29D (also listed under the Rockwell internal reference 74101-169-53) is a base drive/power-supply printed circuit board — the BDB kit — used inside the 1336 family of adjustable-frequency AC drives. Its job is the interface between the drive’s low-voltage control and regulation electronics and the high-power switching devices in the inverter section: it generates and conditions the gate-drive signals, supplies the isolated power required by the gate-drive stage, and carries the feedback and protection circuits that prevent a switching fault from escalating into a power-module failure. In that sense the Allen-Bradley 1336-BDB-SP29D is not a user-facing control board — it is the part of the drive that determines how cleanly and safely the IGBTs are switched.
The board is associated with 460 V AC, 75 HP-rated drives in the 1336 PLUS, PLUS II, FORCE, IMPACT and related configurations. It is fitted inside the drive power stack and connects to the control board and power devices through board-edge and ribbon or flat-cable headers. The Allen-Bradley 1336-BDB-SP29D is normally treated as a field-replaceable unit when a drive develops gate-drive, power-section or internal fault symptoms but the rest of the assembly is still serviceable; replacing the board is substantially cheaper than replacing the complete drive.
The SP29D revision belongs to a progression of BDB boards and should be matched to the revision and drive configuration originally installed. Because the 1336 platform has long been out of production, the Allen-Bradley 1336-BDB-SP29D is today a maintenance and repair spare rather than a new-project component. Its value lies in keeping qualified, working drive assets in service — particularly where rewiring or replacing the drive, motor and control architecture would cost far more than a board exchange.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 1336-BDB-SP29D |
| Alternative Part Number | 74101-169-53 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | Base drive / power-supply PCB (BDB kit) |
| Function | Gate drive and power-section interface for the inverter |
| Compatible Drive Family | 1336 PLUS, PLUS II, FORCE, IMPACT, REGEN |
| Rated Voltage Class | 460 V AC, three-phase (drive dependent) |
| Associated Drive Rating | 75 HP (approximately 55 kW) |
| Frame Size | Frame D (frame coverage to be confirmed against drive nameplate) |
| Board-to-Drive Ratio | One BDB kit per drive |
| Gate Drive Channels | Six channels — one pair for each inverter phase |
| Isolation | Reinforced galvanic isolation between control side and high-voltage DC bus |
| Protection Functions | IGBT desaturation (DESAT) detection, short-circuit protection, overcurrent, overvoltage, surge suppression, undervoltage lockout (UVLO) |
| Board Substrate | FR4 epoxy glass laminate, multilayer construction |
| Interface | Board-edge connector and ribbon / flat-cable headers |
| Operating Temperature | 0 to 50 °C (0 to 40 °C per some sources) |
| Storage Temperature | −40 to 85 °C |
| Relative Humidity | 5 to 95 %, non-condensing |
| Shock Withstand | 15 G at 11 ms operating; 30 G non-operating |
| Vibration Withstand | Up to 5 G |
| Dimensions (L × W × H) | 39.3 × 24.4 × 4 cm |
| Weight | Approx. 1.24–1.26 kg |
| Lifecycle Status | Discontinued / obsolete; supplied as new surplus or tested refurbished |
