Product Overview

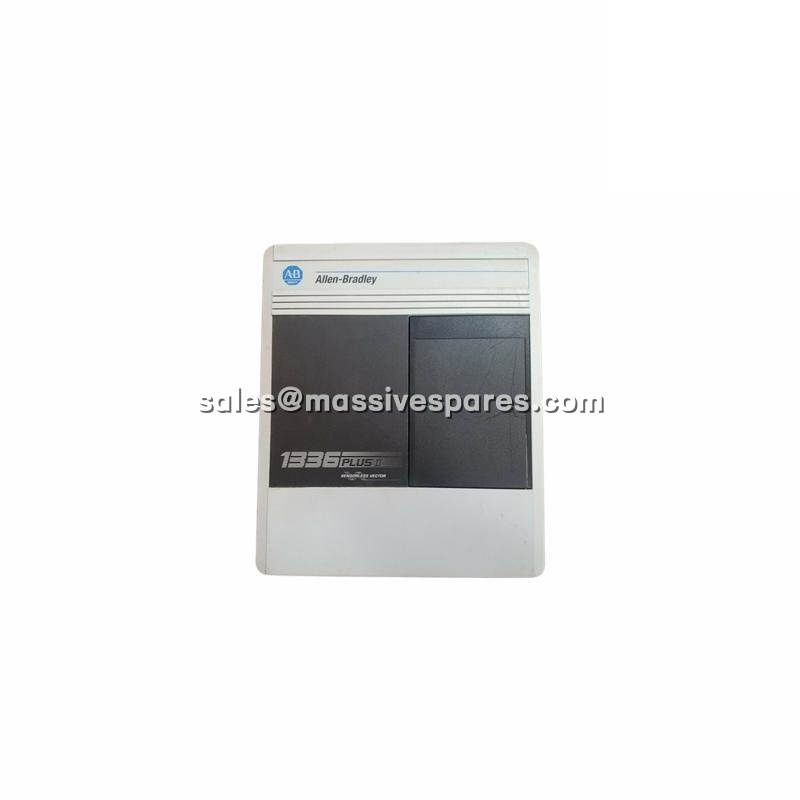

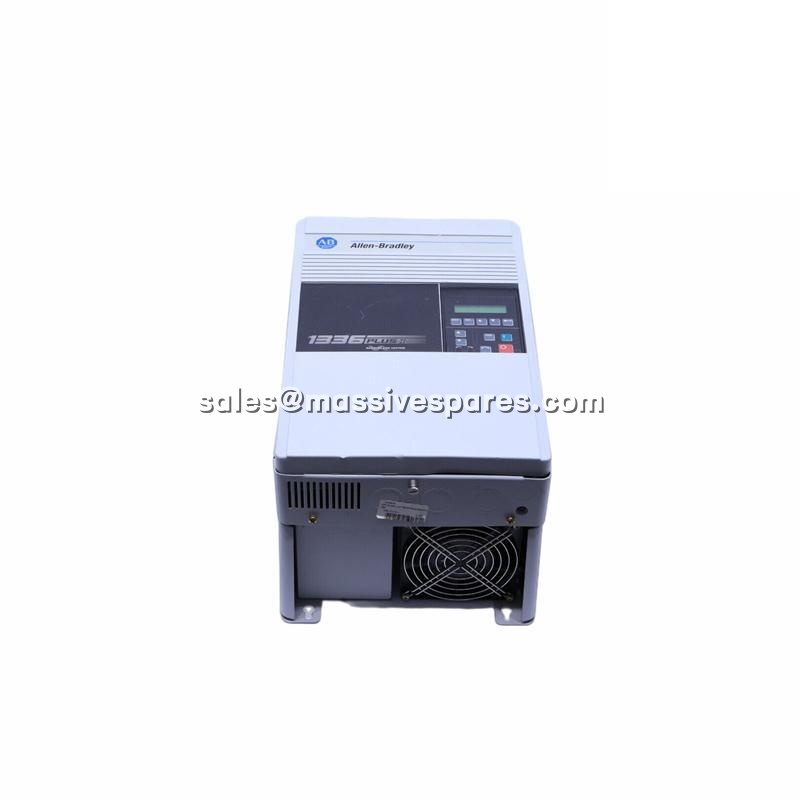

The Allen-Bradley 1336F-B015-AA-EN is an adjustable frequency AC drive from the 1336 PLUS II product line, a microprocessor-based series designed to deliver reliable motor speed and torque control across demanding industrial applications. As a member of the Allen-Bradley 1336 PLUS II family, the 1336F-B015-AA-EN combines sensorless vector control technology with flexible programming options to meet the requirements of both constant torque and variable torque loads.
Operating at 380-480V AC three-phase input, the 1336F-B015-AA-EN provides an output power rating of 11 kW (15 HP) with a rated output current of 24.2 Amperes. The drive supports an output frequency range of 0 to 400 Hz, enabling precise speed regulation of standard AC induction motors. The 1336F-B015-AA-EN is housed in an IP20 (NEMA Type 1) general-purpose enclosure, suitable for indoor installations where protection against incidental contact and limited dust ingress is required.
The Allen-Bradley 1336F-B015-AA-EN includes an English language module pre-installed, ensuring straightforward commissioning for English-speaking operators and maintenance personnel. As part of the 1336 PLUS II platform, this drive benefits from advanced features such as dual acceleration and deceleration profiles, programmable skip frequencies, and preset speed selections that enhance its adaptability to diverse process requirements. The drive is supplied from surplus or refurbished inventory, as the 1336 PLUS II series has been superseded by newer Allen-Bradley drive platforms; however, its established reliability and widespread historical deployment make it a practical choice for maintaining existing control systems.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1336F-B015-AA-EN |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Type | Adjustable Frequency AC Drive |
| Product Line | 1336 PLUS II Series |
| Input Voltage | 380-480V AC, Three-Phase |
| Input Frequency | 50/60 Hz |
| Output Power | 11 kW (15 HP) |
| Output Current | 24.2 A |
| Input Current | 25 A |
| Output Frequency | 0-400 Hz |
| Control Methods | Sensorless Vector Control (SVC), Volts/Hz |
| Enclosure Rating | IP20 (NEMA Type 1) |
| Frame Size | B |
| Language Module | English |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95%, Non-Condensing |
| Maximum Altitude | 1,000 m (3,300 ft) |
| Weight | Approximately 22.7 kg (50 lbs) |
| Dimensions (W × H × D) | 10.88 × 18.75 × 3.50 in (approx.) |
