Product Overview

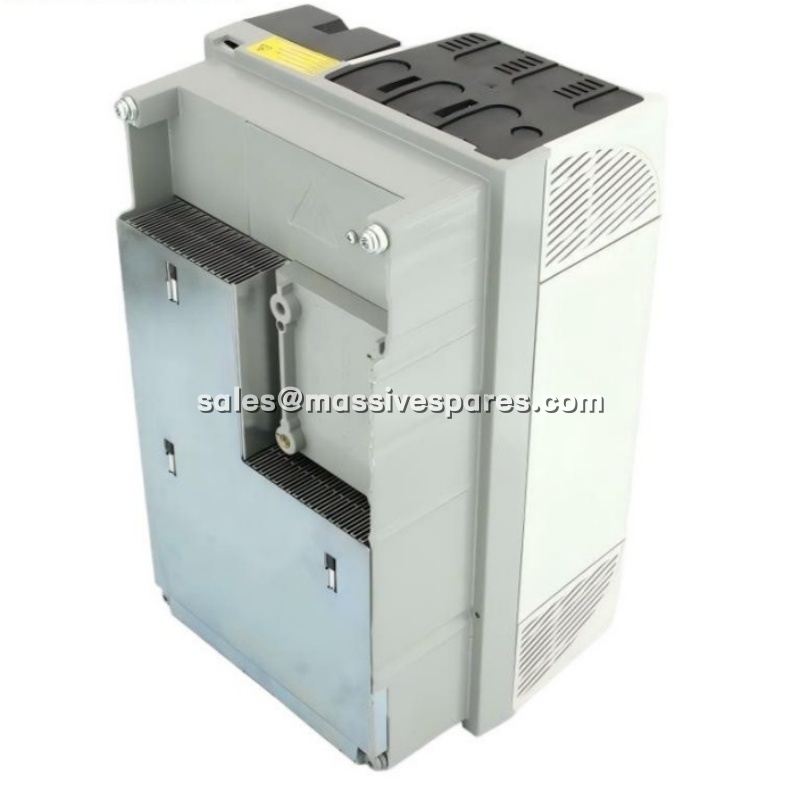

The Emerson SP4403 is a high-performance universal AC drive from the renowned Unidrive SP series, manufactured by Emerson (formerly Control Techniques, now part of Nidec). This drive is engineered to deliver precise motor control across a wide spectrum of industrial applications, supporting induction motors, synchronous motors, and servo motors within a single hardware platform. With a robust design and advanced control algorithms, the Emerson SP4403 ensures smooth and efficient operation in demanding environments where reliability and precision are paramount.
The Emerson SP4403 belongs to Frame Size 4 of the Unidrive SP product line. It operates on a three-phase input voltage range of 380–480 VAC with a ±10% tolerance and is dual-rated for both normal duty and heavy-duty applications. In normal duty mode, it delivers up to 104 A continuous output current, suitable for 75 HP (55 kW at 400 V) applications. In heavy-duty mode, it provides 96 A continuous output, rated for 60 HP (45 kW at 400 V) with constant torque requirements. The drive supports a wide output frequency range from 0 to 550 Hz, making it versatile for various speed control scenarios. The Emerson SP4403 is housed in an IP20-rated enclosure, designed for panel mounting in industrial control cabinets.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | SP4403 |
| Manufacturer | Emerson (Control Techniques / Nidec) |
| Product Type | Universal AC and Servo Drive |
| Series | Unidrive SP |
| Frame Size | 4 |
| Input Voltage | 380–480 VAC ±10%, 3-Phase |
| Input Frequency | 48–65 Hz |
| Normal Duty Current | 104 A continuous |
| Heavy Duty Current | 96 A continuous |
| Normal Duty Rating | 75 HP (55 kW @ 400V) |
| Heavy Duty Rating | 60 HP (45 kW @ 400V) |
| Output Frequency Range | 0–550 Hz |
| Control Modes | V/Hz, Open-Loop Vector, Rotor Flux Control, Closed-Loop Vector, Servo |
| Overload Capacity | 150% for 60 seconds |
| Braking | Built-in Dynamic Braking Transistor, DC Injection Braking |
| Communication | RS-485 / Modbus RTU (expandable via option modules) |
| Protection Rating | IP20 |
| Mounting | Panel Mount |
| Operating Temperature | 0°C to +40°C (derating above 40°C) |
Main Features and Advantages
The Emerson SP4403 offers a comprehensive suite of control modes, including V/Hz, open-loop vector (RFC), closed-loop vector, and servo control. This multi-mode capability allows a single drive to handle everything from simple fan and pump applications to high-dynamic servo positioning tasks. The ability to switch control strategies via parameter configuration eliminates the need for separate drive hardware when motor types or application requirements change, significantly reducing spare parts inventory and simplifying maintenance.
A standout feature of the Emerson SP4403 is its built-in dynamic braking transistor, which eliminates the need for an external braking module in most applications. This integrated approach reduces cabinet space requirements and simplifies wiring. The drive also includes an onboard EMC filter, ensuring compliance with electromagnetic compatibility standards and reducing electrical noise interference with other sensitive equipment. The two expansion slots on the Emerson SP4403 accept a wide range of communication and I/O option modules, including Profibus-DP, DeviceNet, CANopen, and Ethernet, enabling seamless integration with virtually any industrial network architecture.
The Emerson SP4403 also features an embedded programmable logic controller that can be configured using SyPTLite ladder logic software. This allows the drive to handle local interlock and sequencing tasks, reducing the burden on the main PLC and enabling standalone operation for simpler applications. Combined with comprehensive diagnostic capabilities, fault logging, and motor auto-tuning functions, the Emerson SP4403 delivers exceptional flexibility, reliability, and ease of use for industrial automation professionals.
