Application Scenarios
In a large-scale industrial drive system, multiple motors often need to share a common DC bus to improve energy efficiency and reduce grid impact. A steel rolling mill project using the Unidrive SPM architecture employs the Emerson SPMC2402 as the rectifier front end, converting the plant’s 400V three-phase AC supply into a stable DC bus voltage of approximately 540V. This DC bus then feeds multiple SPMD inverter modules driving the mill’s main motors. When the system powers up, the module’s built-in soft-start function effectively suppresses the inrush current that traditional rectifier solutions would impose on the grid and capacitor banks. If the rectifier detects a fault, its status relay signal immediately triggers the drive enable circuit, disabling all motoring drives to prevent fault propagation—a critical interlock mechanism that ensures cabinet-level safety.
Parameter
| Parameter | Value/Description |
|---|---|

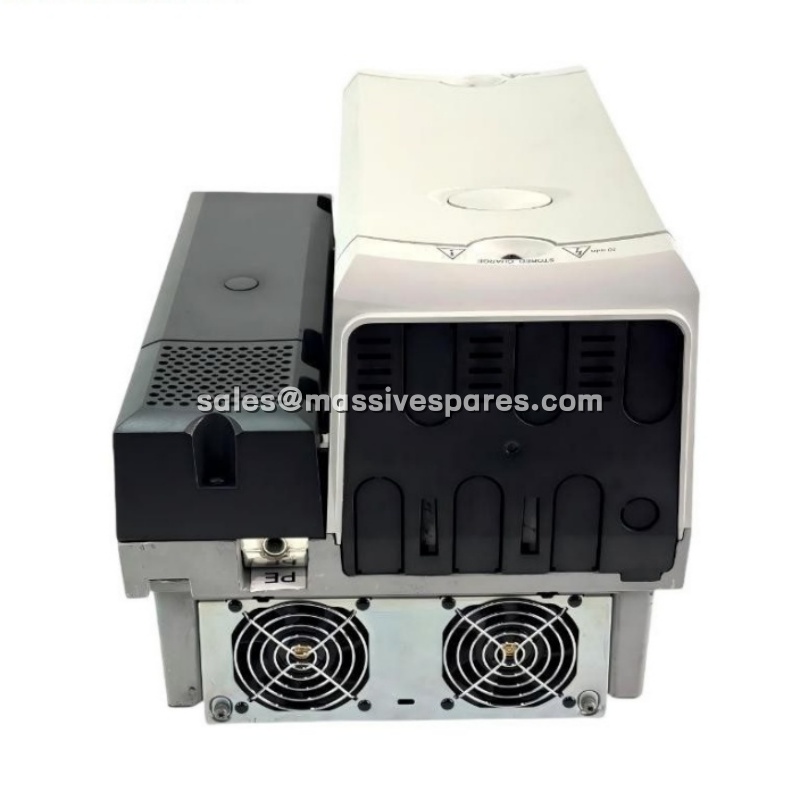

| Product Model | Emerson SPMC2402 |
| Manufacturer | Emerson / Control Techniques |
| Product Category | Controlled Input Rectifier Module (Half-Controlled Thyristor Bridge) |
| Series | Unidrive SPM |
| Rectifier Topology | Dual half-controlled thyristor bridge |
| Voltage Class | 400V class, AC 380–480V ±10%, three-phase |
| DC Output Voltage | Approximately 513–648V DC |
| AC Line Current | 677 A (100% normal duty) |
| DC Link Current | 758 A (100% normal duty) |
| Typical Input Current | 2 × 308 A |
| Maximum Input Current | 2 × 312 A |
| Semiconductor Fuse | 450 A, IEC aR class |
| HRC Fuse (series) | 400 A, IEC gG / UL J class |
| Maximum DC Bus Capacitance | 132 mF (supply short-circuit capacity < 25 kA) |
| Control Power Supply | External 24V DC / 3A required |
| Soft Start | Built-in |
| Dimensions | Approximately 399 × 298 × 310 mm |
Technical Principles and Innovative Values
Innovation Point 1: Half-Controlled Thyristor Bridge Enables DC Bus Voltage Regulation. Unlike uncontrolled rectifier modules (such as the SPMU2402), the Emerson SPMC2402 employs a thyristor bridge structure that allows adjustment of the DC bus voltage. In regenerative systems where multiple drives share a common bus, the module can serve directly as an external charging module—a capability that uncontrolled rectifier solutions cannot provide.
Innovation Point 2: Built-In Soft Start Reduces Power-Up Surge. The module comes standard with soft-start functionality, eliminating the need for external resistors and contactor circuits during power-up. This feature significantly reduces current surge on the grid and DC bus capacitor banks, extending capacitor lifespan.
Innovation Point 3: High-Capacity Bus Support Capability. The Emerson SPMC2402 supports up to 132 mF of DC bus capacitance (when supply short-circuit capacity is < 25 kA); with a line reactor installed, the upper limit is 66 mF. This parameter defines its application boundary in large multi-drive systems.
Innovation Point 4: Fault Interlock Protection Architecture. The module relies on the drive system to provide protection—the status output must be connected to the drive enable circuit. When the rectifier reports a fault, all motoring drives are disabled, forming a system-level safety interlock. This design ensures that a rectifier fault cannot propagate to the inverter stage or motor.
