Product Overview

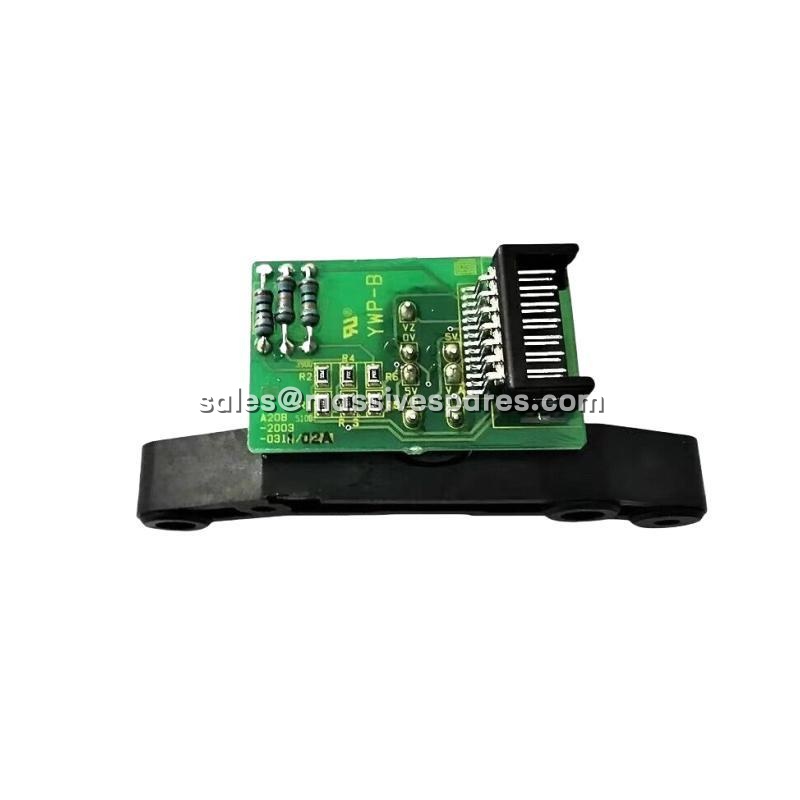

The A20B-2003-0311 is a FANUC Spindle Encoder Sensor PCB—specifically the signal-processing circuit board at the heart of the MZi-type spindle sensor assembly A860-2110-V001. Historically supplied under the GE Fanuc Automation joint-venture name, it is a genuine FANUC part number, not a spindle motor in its own right: it is the feedback sensor that mounts on the rear of a FANUC αi- or βi-series spindle motor, beneath the cooling/blower fan, and reports shaft rotation to the spindle amplifier.
In practice, the two designations are inseparable. The A860-2110-V001 is the complete sensor unit—housing, magnetic target ring, and PCB—while the A20B-2003-0311 is the specific circuit board installed within it. FANUC discontinued the bare PCB as a separately sold item, so most replacements are supplied as a complete sensor assembly or a refurbished/tested board. Either way, the function is identical: every time the spindle motor turns, the A20B-2003-0311 detects rotation of the magnetic target wheel on the motor shaft and converts it into a digital signal stream that the amplifier reads continuously.
From those signals, the amplifier knows two things: how fast the spindle is turning, and exactly where it sits within each revolution. Speed data feeds the closed-loop velocity controller, allowing the amplifier to hold commanded RPM regardless of cutting-load changes. Position data enables spindle orientation and rigid tapping, where the CNC must synchronize rotation with Z-axis movement to produce accurate thread pitch. The A20B-2003-0311 provides the angular resolution that makes this possible—lose the sensor, and spindle alarms follow immediately, halting threading and often all spindle commands until it is replaced.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | A20B-2003-0311 (also A20B20030311; /01A revision common) |
| Complete Assembly P/N | A860-2110-V001 (MZi sensor unit containing the PCB) |
| Manufacturer | FANUC (historically GE Fanuc Automation) |
| Product Type | Spindle Encoder Sensor PCB (MZi magnetic type) |
| Sensor Technology | MZi — magnetic / fluxgate rotary encoder (non-contact) |
| Function | Speed measurement + spindle positioning/orientation feedback |
| Signal Output | Digital pulse; A/B sine-wave + Z-phase |
| Supply Voltage | 5 V DC |
| Speed Capability | Up to ~15,000 RPM |
| Signal Frequency | Approx. 205–256 kHz |
| Encoder Resolution | Up to 32,768 pulses per revolution |
| Connector | 12-pin (feedback cable to spindle amplifier) |
| Amplifier Interface | JYA2 terminal |
| Compatible Motors | FANUC αi / βi series spindle motors |
| Compatible Controls | 16i / 18i / 21i and related FANUC CNCs |
| Mounting Location | Rear of spindle motor, beneath cooling fan |
| Weight | Approx. 1 kg |
| Origin | Japan |
| Product Status | Discontinued (PCB not sold separately; supplied as assembly or refurbished) |
Main Features and Advantages
MZi magnetic, non-contact sensing: The A20B-2003-0311 uses a magnetic target wheel and pickup rather than an optical disk. With no brushes or wear surfaces between rotating and stationary elements, the sensor avoids the contamination and wear issues that commonly defeat optical encoders in coolant-heavy machining environments.
Dual speed-and-position feedback: The board processes both A/B sine-wave signals and a Z-phase index, giving the amplifier continuous velocity data plus single-revolution angular position. This is what enables precise closed-loop spindle speed control and the orientation logic needed for tool change and indexing.
Rigid tapping and threading enablement: The supplies the per-revolution positional resolution the CNC needs to synchronize spindle rotation with Z-axis feed. Without clean, accurate feedback, thread pitch cannot be held—making this small PCB indispensable to any tapping operation.
High resolution and frequency response: With encoder resolution up to 32,768 pulses per revolution and signal frequencies in the 205–256 kHz range, the sensor supports high-speed spindles (up to ~15,000 RPM) while retaining the fine angular resolution required by precision machining.
Direct JYA2 amplifier interface: The 12-pin feedback cable connects straight to the JYA2 terminal of the FANUC αi/βi spindle amplifier, preserving the original wiring and eliminating the need for interface converters or control reconfiguration.
Drop-in replacement for the failed sensor: Because the is the exact FANUC board, it restores full closed-loop spindle control without modifying the motor, amplifier, or CNC parameter set. Common interchangeable/service replacements include the /01A revision, the A20B-2003-0310, and the A20B-2002-0300—though compatibility should always be confirmed by motor and amplifier model.
Legacy-CNC life-extension: For facilities running mature 16i/18i/21i controls, a tested replacement makes sensor-level repair feasible, deferring the far greater cost and risk of a full spindle or control replacement.
