Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

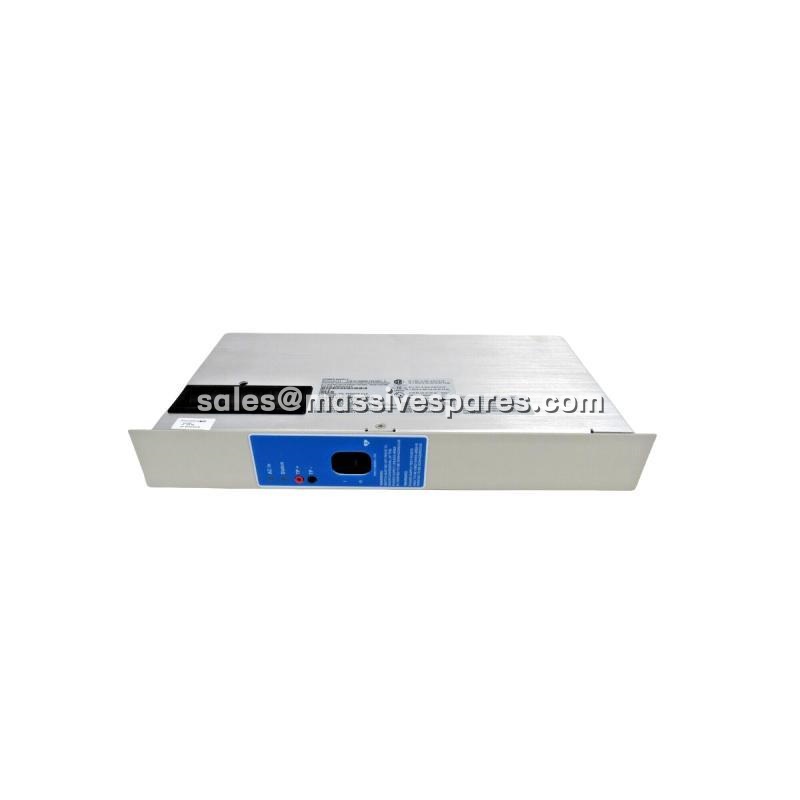

| Product Model | SPS5710-2-LF |
| Part Number | 51198685-100 |
| Manufacturer | Honeywell (Process Solutions / Industrial Automation) |
| Product Type | System Power Supply Module |
| Series / Platform | Honeywell Series C / Experion PKS (C300) |
| Input Voltage | 100–240 VAC (universal / wide range; 85–264 VAC per some configurations) |
| Input Frequency | 47–63 Hz (rated 50/60 Hz) |
| Rated Input Current | ≤10 A |
| Output Voltage | 24 VDC regulated (24–26 VDC range) |
| Output Current | 20 A |
| Output Power | 480–520 W |
| Output Accuracy | ±1% |
| Ripple | ≤100 mV peak-to-peak |
| Conversion Efficiency | ≥85% at full load (230 VAC); ≥75% at light load |
| Protection Functions | Overvoltage (28 VDC lockout), overcurrent (current limiting + hiccup), short-circuit, input under/overvoltage lockout |
| Redundancy / Hot-Swap | Supports N+1 parallel redundancy; hot-swappable (with redundant companion installed) |
| Electrical Isolation | Input–Output 2500 VAC / 1 minute; insulation resistance ≥50 MΩ (500 VDC) |
| Cooling | Natural convection, fanless |
| Operating Temperature | -40 °C to +70 °C (derate 0.5 A/°C above 65 °C) |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Certifications | UL / CSA / IEC 61010-1, CE, RoHS (Lead-Free), FM, ATEX, IECEx |
| Enclosure Rating | IP20 |
| Mounting | Modular; DIN-rail or chassis / rack-mount (per cabinet design) |
Main Features and Advantages
High-current, tightly regulated 24 VDC output: The Honeywell 51198685-100 delivers a full 20 A (480–520 W) at 24–26 VDC with ±1% output accuracy and ripple no greater than 100 mV peak-to-peak. This clean, stable DC rail powers multiple Series C modules — including C300 controllers, I/O cards, and communication units — from a single supply, reducing the number of separate power sources in the cabinet.
Universal wide-range AC input: With a 100–240 VAC (47–63 Hz) input window, the SPS5710-2-LF accommodates global mains voltages and tolerates the fluctuations, sags, and momentary interruptions common in industrial power distribution. The wide input range simplifies spare-parts logistics across multinational plants and eliminates the need for site-specific input transformers in most cases.
Redundancy and hot-swap for continuous availability: The Honeywell 51198685-100 supports N+1 parallel redundant operation. When two units are installed and fed from independent AC circuits, a failure in one supply is seamlessly absorbed by the companion, preventing loss of the 24 VDC bus. With the redundant configuration in place, either module can be hot-swapped — removed and reinserted — without shutting down the controller, dramatically reducing mean time to repair (MTTR) and avoiding process upsets.
Comprehensive built-in protection: The SPS5710-2-LF integrates overvoltage lockout at 28 VDC, current-limited “hiccup” overcurrent behavior, short-circuit protection, and input under/overvoltage lockout. These functions protect both the supply itself and every downstream Series C module, while EMI/RFI filtering prevents noise propagation onto the DC bus and into sensitive analog I/O.
High efficiency and fanless reliability: At ≥85% conversion efficiency (full load, 230 VAC), the Honeywell 51198685-100 minimizes heat generation and energy loss, reducing cabinet cooling load. Its natural-convection, fanless design eliminates moving parts — a major contributor to MTBF — making the supply exceptionally reliable in dusty or hard-to-access installations.
Extreme-environment and hazardous-area rating: Rated for -40 °C to +70 °C (with linear derating above 65 °C), the Honeywell 51198685-100 starts and operates reliably in sub-zero, high-heat, and remote-field conditions. With FM, ATEX, and IECEx approvals (Class I, Division 2, Groups A–D, T4; Ex nA nC IIC T4 Gc), the SPS5710-2-LF is suitable for installation in hazardous areas common to oil & gas, refining, and petrochemical facilities.
Lead-free, RoHS-compliant construction: The “-LF” suffix denotes a lead-free, R
