Description

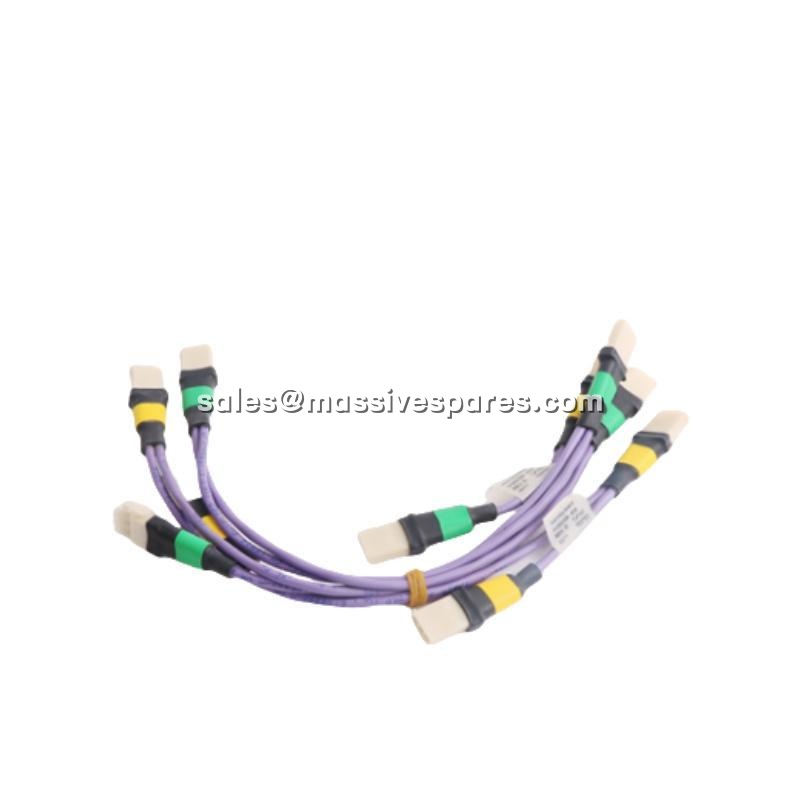

The HONEYWELL 51202329-616 is an I/O Link Violet Header Cable designed for industrial automation control systems. As a specialized data transmission cable within the Honeywell Experion PKS Distributed Control System (DCS), the 51202329-616 provides reliable connectivity between I/O modules and controllers, facilitating stable signal exchange in process control environments .
Application Scenarios
In a refinery’s central control room, the Experion PKS DCS cabinet houses Series C I/O modules and C300 controllers that manage critical process variables. When a field I/O module needs to communicate with its controller, the HONEYWELL 51202329-616 serves as the physical link carrying digital data between these components. The violet-colored connector enables technicians to quickly identify the correct cable among dense wiring runs during installation or troubleshooting. In a redundant communication configuration, multiple 51202329-616 cables ensure that if one communication path fails, the backup path continues transmitting process data without interruption, maintaining operational visibility for operators. Without this dedicated interface cable, the I/O module and controller cannot exchange the real-time signals essential for process control.
Parameter
| Parameter | Value/Description |
|---|---|
| Product Model | HONEYWELL 51202329-616 |
| Manufacturer | Honeywell |
| Product Category | I/O Link Cable / Data Transmission Cable |
| Cable Type | Violet Header Cable |
| System Compatibility | Honeywell Experion PKS, Series C I/O |
| Connector Type | M12 / I/O Link compatible |
| Cable Length | 2 meters |
| Cable Color | Violet (for identification) |
| Conductor Material | Copper |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Shielding | Foil shielding for EMI protection |
| Operating Temperature | -20°C to +80°C (some sources: -40°C to +85°C) |
| Protection Rating | IP65 / IP67 (connector dependent) |
| Certification | CE, RoHS |
Technical Principles and Innovative Values
Innovation Point 1: Dedicated I/O Link Architecture for Experion PKS. The 51202329-616 is purpose-built for Honeywell’s I/O Link communication standard, which provides a high-speed, deterministic data path between I/O modules and C300 controllers within the Experion PKS DCS. Unlike generic Ethernet cables, this specialized cable uses Honeywell’s proprietary connector pinout and signal assignment, ensuring plug-and-play compatibility with Series C I/O hardware .
Innovation Point 2: Violet Identification System for Wiring Efficiency. The distinctive violet color of the 51202329-616 serves a practical engineering purpose beyond aesthetics. In control cabinets containing dozens of cables of varying functions, the violet jacket allows technicians to instantly distinguish I/O Link cables from power, analog signal, and networking cables. This color coding reduces installation errors, accelerates troubleshooting, and improves maintenance efficiency in densely wired cabinets .
Innovation Point 3: Shielded Construction for Signal Integrity. The 51202329-616 incorporates foil shielding around the copper conductors, protecting the I/O Link data signals from electromagnetic interference generated by nearby power cables, variable frequency drives, and other industrial noise sources. This shielding is critical for maintaining data integrity in real-time control applications where signal corruption could lead to incorrect control actions .
