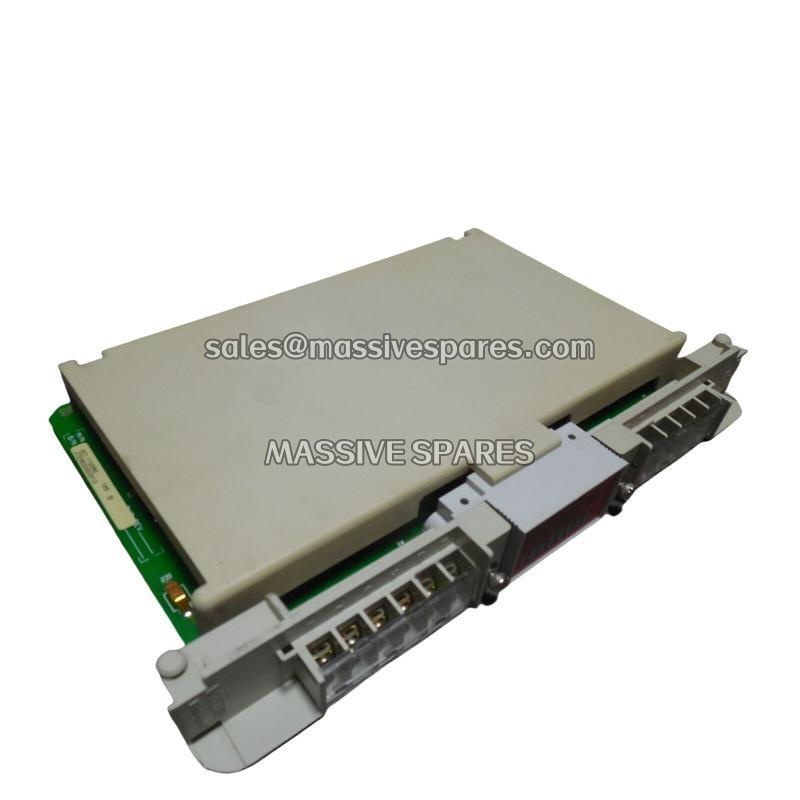

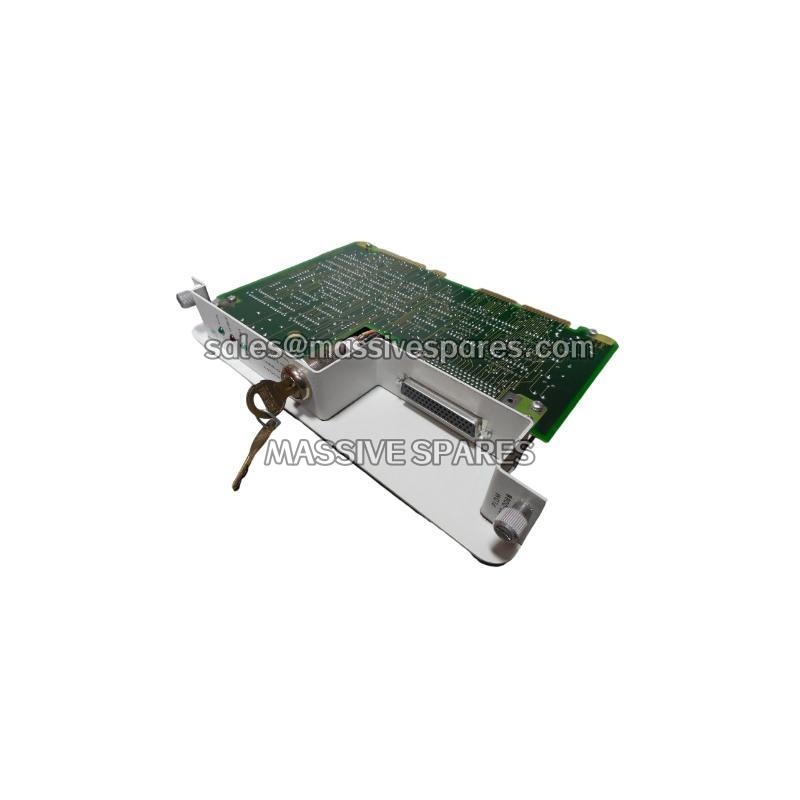

Honeywell 620-0088 Parallel Link Driver Module (PLDM) Rev. E – The Communication Spine of IPC 620-25/35 Control Systems

Application Scenarios

In a North American chemical processing facility running a Honeywell IPC 620-35 system for reactor temperature and pressure control, a critical batch operation was interrupted when the processor issued a scan-loss condition during a routine I/O rack expansion. The plant‘s maintenance team discovered that the existing 620-0088 had its DIP switches configured with the scan-loss output setting in “freeze” mode, which held the last valid outputs but prevented the system from entering a safe state during the communication dropout. After replacing the module with a properly configured 620-0088 set to clear outputs on scan-loss, the facility gained deterministic fail-safe behavior that satisfied the process safety requirements. The 620-0088 also provided the front-panel processor keyswitch location that allowed operators to select between PROGRAM, DISABLE, RUN-PROG, and RUN modes without accessing the processor card directly, streamlining both maintenance and operational mode changes . This single module replacement restored reliable batch processing and eliminated the risk of uncontrolled reactor conditions during future communication anomalies.
