Application Scenarios
In a large-scale automotive stamping facility, multiple press lines operated with aging Reliance AutoMax drive systems required continued support despite the platform’s discontinuation. The RELIANCE ELECTRIC 57552-4A functions as the control brain within each AutoMax rack, executing real-time drive algorithms for the main press motors and coordinating speed and torque commands across the production floor. When a critical stamping press experienced erratic motor response due to a failing drive controller module, replacing the unit with a tested 57552-4A restored precise speed regulation within the same production shift, avoiding a multi-day line stoppage that would have disrupted downstream assembly operations.
Parameter

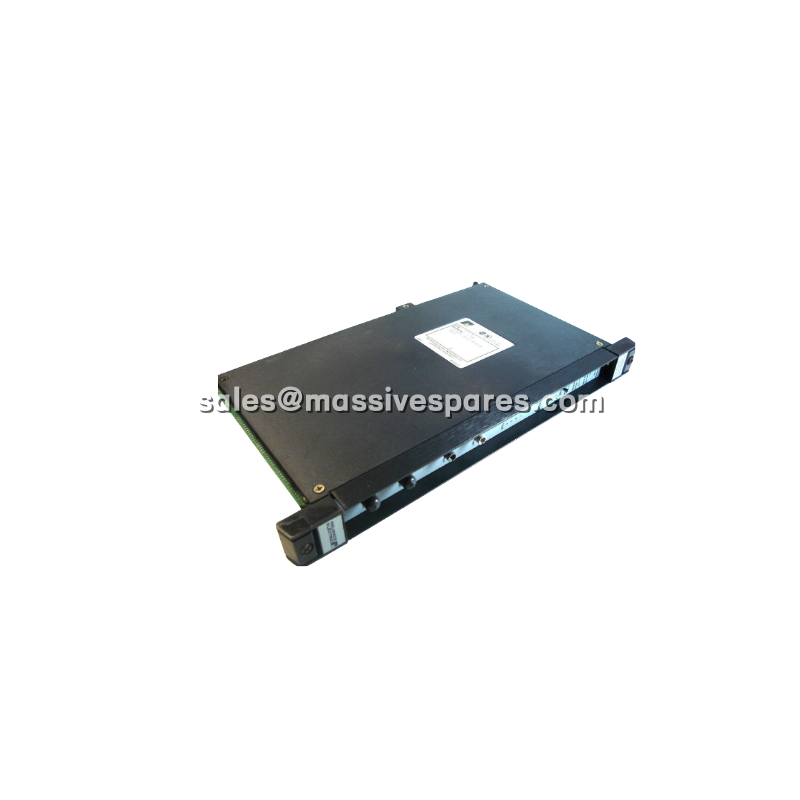

| Parameter | Value/Description |
|---|---|
| Product Model | RELIANCE ELECTRIC 57552-4A |
| Manufacturer | Reliance Electric (Baldor Reliance, ABB) |
| Product Category | Universal Drive Controller (UDC) Module |
| Series | AutoMax PLC / Distributed Power System |
| Controlled Drives | Up to 2 AC or DC drives |
| Memory Configuration | 256 KB non-volatile flash; 512 KB SRAM; 4 KB dual-port SRAM |
| Fiber-Optic Interface | 2 PMI connections (Manchester coding, 10 Mbaud) |
| Analog Outputs | 4 channels (-10 to +10 VDC) |
| Communication Protocol | HDLC; Multibus with rack processor |
| Rack Capacity | Up to 10 UDC modules per AutoMax rack |
| Faceplate Indicators | 6 LEDs (Card OK, OS OK, COMM A/B OK, DRV A/B FLT) |
| Mounting Method | AutoMax rack backplane slot (single-slot width) |
| Weight | Approximately 0.9 kg (2 lbs) |
Technical Principles and Innovative Values
- Innovation Point 1 – Dual-Drive Control Architecture: The RELIANCE ELECTRIC 57552-4A is engineered to independently control two separate drives from a single module slot, a density advantage that allows a fully populated AutoMax rack to manage up to 20 drives simultaneously. This design reduces cabinet footprint and per-drive control cost compared to single-drive controller architectures.
- Innovation Point 2 – Fiber-Optic PMI Communication: Unlike controllers relying on copper signal transmission, the 57552-4A communicates with its Power Module Interfaces (PMIs) via fiber-optic links using Manchester coding at 10 Mbaud data rate. This optical isolation eliminates electromagnetic interference on the critical drive control path, a decisive advantage in industrial environments where switching transients and ground loops degrade conventional signal integrity.
- Innovation Point 3 – Non-Volatile Flash Memory Storage: The RELIANCE 57552-4A stores operating system, configuration, and task data in 256 KB of onboard non-volatile flash memory. This architecture ensures that drive control parameters survive power interruptions without battery backup, eliminating a common failure mode in legacy industrial controllers that relied on volatile memory retention.
- Innovation Point 4 – Multi-Protocol Rack Integration: The 57552-4A operates as a Multibus slave within the AutoMax backplane, communicating with the rack’s processor module while executing drive-specific control algorithms locally. This distributed processing approach offloads real-time drive tasks from the main PLC, preserving processor bandwidth for system-level logic and I/O management.
