Description
Application Scenarios
In a municipal water treatment facility serving a population of 500,000, the main control room relied on a Modicon Quantum PLC to orchestrate pump stations, chemical dosing systems, and filtration processes across a 15-acre site. When the plant’s aging controller began experiencing unexplained communication dropouts and sluggish scan times during peak flow conditions, engineers faced a dilemma: a full platform migration would cost millions and require weeks of downtime. The solution came in the form of a like-for-like replacement using the 140CPU53414B, which restored deterministic control over 63 distributed I/O drops via Modbus Plus networking. The 140CPU53414B seamlessly executed PID loops for chlorine dosing and pump staging logic, while its built-in Modbus ports maintained HMI connectivity for operators. Within days of commissioning, the plant achieved stable scan times and eliminated nuisance alarms, proving that strategic legacy component investment can extend the productive life of critical infrastructure without disruptive modernization projects.
Parameter

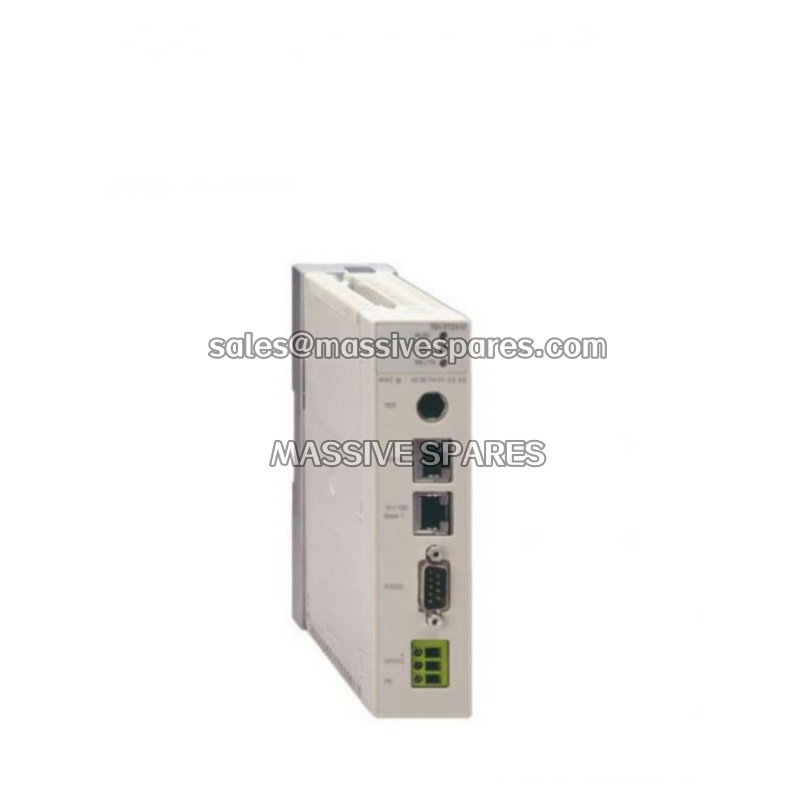

| Main Parameters | Value/Description |
|---|---|
| Product Model | 140CPU53414B |
| Manufacturer | Schneider Electric (Modicon) |
| Product Category | PLC Processor / CPU Module |
| Processor Core | 80486 with Integrated Math Coprocessor |
| Clock Speed | 100 MHz |
| Internal RAM | 2,972 KB (user logic + data) |
| Execution Speed | 0.1–0.5 ms per 1K LL984 instructions |
| Local I/O Capacity | 64 input / 64 output words maximum |
| Distributed I/O Capacity | 500 input / 500 output words per network |
| Communication Ports | 2× Modbus (RS-232), 1× Modbus Plus (RS-485) |
| Programming Software | Concept, ProWORX 32 (Unity upgrade capable) |
| Power Consumption | 1,250 mA @ 5V DC from backplane |
| Operating Temperature | 0°C to +60°C |
| Dimensions | Standard Quantum module format |
| Net Weight | 0.85 kg |
Technical Principles and Innovative Values
- Distributed Control Architecture: The 140CPU53414B natively supports Modbus Plus peer-to-peer networking and S908 Remote I/O, allowing a single CPU to govern thousands of I/O points dispersed across large plant sites. This architecture reduces wiring costs, simplifies commissioning, and enables centralized diagnostics from one programming terminal.
- Hot Standby Redundancy Capability: When paired with the 140CHS11000 hot standby module, two 140CPU53414B processors operate in synchronized redundancy. Should the primary CPU fail, the standby unit assumes control within 13–48 milliseconds, ensuring continuous process operation for applications where downtime carries six-figure costs per hour.
- Flash Executive with Memory Protection: The “B” version features a unique flash executive that stores the operating system and user program in non-volatile memory. A front-panel key switch provides three positions—Start, Memory Protect, and Stop—allowing operators to prevent unauthorized program changes during runtime while maintaining process control.
- Backward Compatibility and Investment Protection: The 140CPU53414B maintains full compatibility with the extensive Quantum I/O ecosystem (140ACI, 140ACO, 140DDI, 140DDO series) and legacy programming environments. Facilities with decades-old installations can expand or repair their systems without wholesale replacement, preserving capital investment and institutional knowledge.
