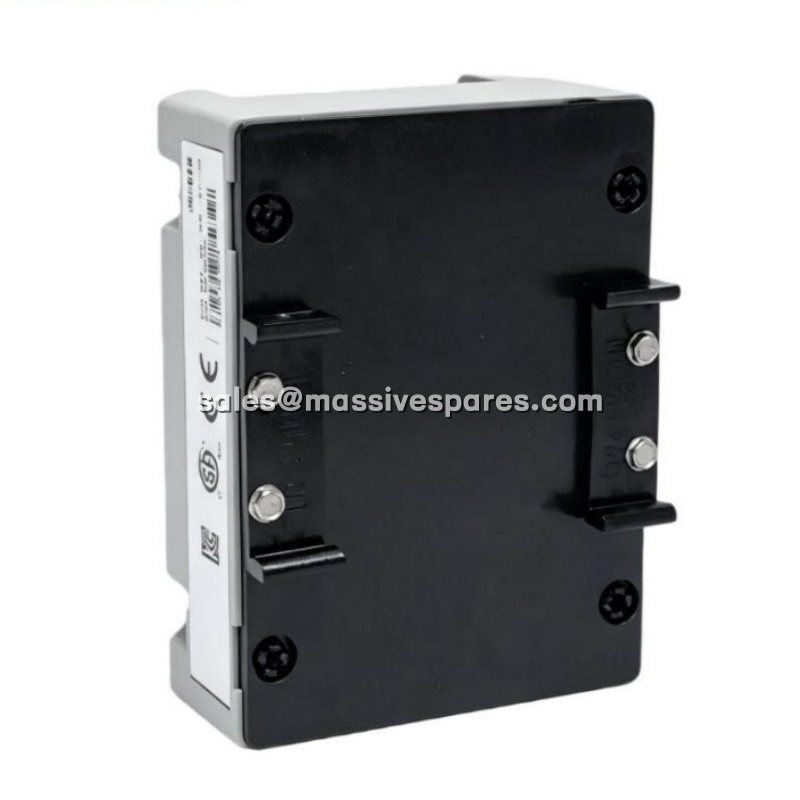

Bently Nevada 991-10-XX-02-00 Thrust Transmitter – 163930-01 Axial Displacement Transmitter

Description

Application Scenarios

In a petrochemical high-speed centrifugal air compressor application, thrust bearing axial displacement is a critical indicator of unit health. The OEM control system for a cracking gas compressor at an ethylene plant required a compact, reliable thrust monitoring solution with severely limited installation space.

The compressor manufacturer selected the Bently Nevada 991-10-XX-02-00 as the core thrust protection transmitter. This model integrates Proximitor sensor functionality, requiring no external preamplifier—only connection to a 3300 NSv probe and extension cable—significantly simplifying control cabinet layout. The Bently Nevada 991-10-XX-02-00 converts probe-collected axial displacement signals in real time to 4-20 mA standard signals, feeding directly into the compressor PLC control system for thrust alarming and interlock protection.

In actual operation, the transmitter’s potted construction enables it to withstand high-humidity environments up to 100% condensing near the compressor, while the built-in Not OK/Signal Defeat circuit effectively prevents false high-signal alarms caused by probe faults or loose connections. Field commissioning engineers connected portable diagnostic instruments via the non-isolated PROX OUT and COM terminals on the front panel of the Bently Nevada 991-10-XX-02-00 to verify probe gap voltage and dynamic signal quality without interrupting the 4-20 mA loop, significantly shortening the commissioning cycle.

Parameter
