Yokogawa F3LX02-2N FL-net (OPCN-2) Interface Module for FA-M3 PLC Systems

Product Overview

The Yokogawa F3LX02-2N​ is an FL-net (OPCN-2) interface module designed for installation in an I/O slot of the Yokogawa FA-M3 programmable controller platform. It provides an Ethernet-based communication pathway that enables FA-M3 systems to exchange data with other programmable controllers, robot controllers, CNC machines, and compatible FA devices across a vendor-independent open network. Compliant with FL-net (OPCN-2) Version 2.00, the module is purpose-built for distributed factory automation environments where interoperability and deterministic data delivery are essential.

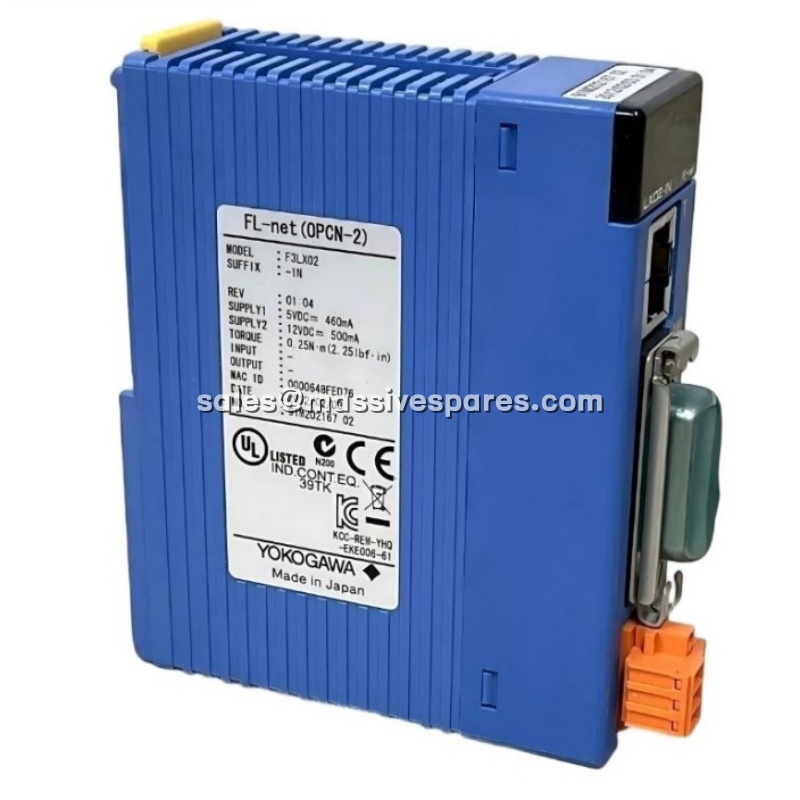

Physically, the Yokogawa F3LX02-2N​ is a compact, slot-mounted module measuring 28.9 mm in width, 100 mm in height, and 83.2 mm in depth, with a mass of approximately 100 g. It supports both 10BASE-T and 100BASE-TX operation at 10 Mbps and 100 Mbps respectively, using standard twisted-pair cabling through its RJ45 connector. Up to six modules can be installed in a single FA-M3 main unit, allowing system designers to build multilayer data links without adding external gateway hardware.

The strength of the Yokogawa F3LX02-2N​ lies in its ability to support both cyclic transmission and message transmission. Cyclic data is refreshed at regular intervals, making it suitable for real-time I/O and process values, while message transfer handles event-driven information such as alarms, recipes, and configuration data. Backed by Yokogawa’s proprietary RRR (Rapid Refresh and Reflection) technology, the module minimizes delivery time between the interface and the CPU, ensuring that ladder programs respond quickly to updated network data.
