Technical Specifications

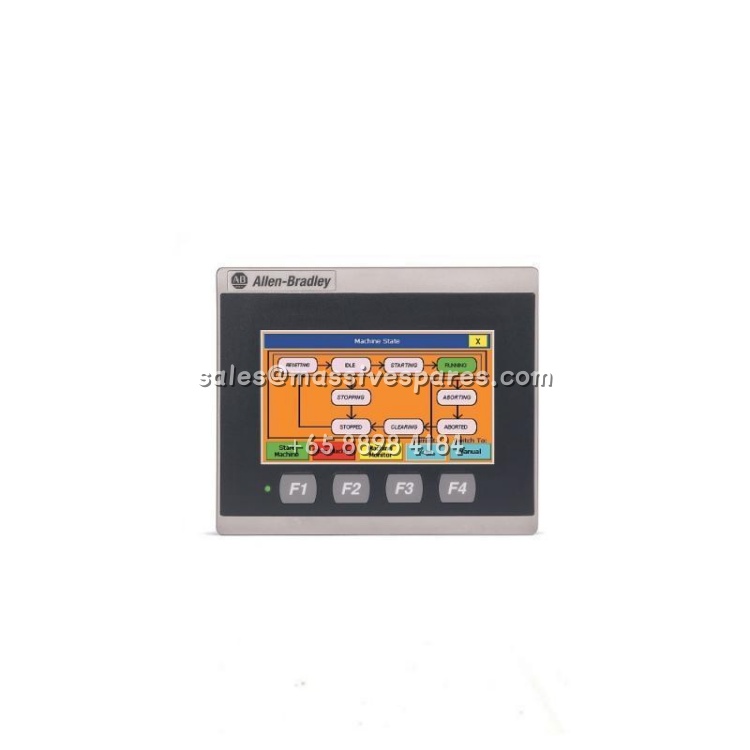

| Parameter Name | Parameter Value |
|---|---|
| Product Model | 2711R-T4T |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | PanelView 800 Graphic Terminal |
| Display Size | 4.3 inches (4-inch class) |
| Display Type | Color transmissive TFT active matrix LCD, widescreen |
| Resolution | 480 x 272 pixels |
| Colors | 65,000 |
| Backlight | LED, 40,000 hours minimum |
| Display Area | 95 x 53.9 mm |
| Operator Input | Analog resistive touchscreen and function keys |
| Processor | 800 MHz CPU |
| Memory | 128 MB RAM, 256 MB flash |
| Operating System | Microsoft Windows CE 6.0 |
| Communication | 1 Ethernet (10/100 Mbps), RS-232, RS-422/RS-485 |
| USB | 1 USB 2.0 host port |
| Storage | microSD card slot (SDSC, Class 6/10 SDHC, up to 32 GB) |
| Input Voltage | 18–32V DC (24V DC nominal) |
| Power Consumption | 9 W max (0.39 A at 24V DC) |
| Enclosure Rating | NEMA/UL Type 4X (indoor), 12, 13, IP65 |
| Operating Temperature | 0°C to 50°C |
| Dimensions (HxWxD) | 116 x 138 x 43 mm |
| Weight | Approximately 0.333 kg |
| Real-Time Clock Battery | 5 years minimum at 25°C |
Main Features and Advantages
Compact Color Visualization with Touch and Function Keys: The 2711R-T4T delivers a 4.3-inch widescreen color display with 480 x 272 resolution and 65,000-color support, providing clear graphical representation of machine status, process values, and alarm messages. The combination of an analog resistive touchscreen and dedicated function keys offers operators two input modalities, accommodating both direct screen interaction and tactile command execution. The resistive touchscreen remains responsive even when operators are wearing gloves, a practical advantage in manufacturing and processing environments where bare-hand operation is not feasible.
Optimized for Micro800 and MicroLogix Integration: The 2711R-T4T is specifically engineered for compatibility with Rockwell Automation’s micro and small controller families, including Micro800 (Micro850, Micro870) and MicroLogix controllers. This optimization extends to direct tag referencing and pass-through download capabilities, which simplify application development and reduce commissioning time. For CompactLogix 5370 and 5380 controller applications, the 2711R-T4T provides a cost-effective visualization option where the full capabilities of a PanelView Plus terminal are not required.
Flexible Connectivity in a Compact Package: Despite its small footprint, the 2711R-T4T includes Ethernet, RS-232, and RS-422/485 communication ports, along with a USB host port and microSD slot. This connectivity suite enables integration into networked architectures via EtherNet/IP while retaining serial communication options for legacy devices. The microSD slot supports application transfers and firmware updates without requiring a network connection, and the USB host port accommodates peripherals such as keyboards, mice, or flash drives for on-site maintenance and data retrieval.
Rugged Panel-Mount Construction: The 2711R-T4T carries NEMA Type 4X (indoor), 12, and 13 ratings along with IP65 protection on the front bezel, ensuring resistance to dust and water spray in industrial environments. The LED backlight, rated for 40,000 hours minimum, eliminates the mercury content and warm-up time associated with CCFL backlights while providing consistent brightness over its service life. With a weight of approximately 0.333 kg and dimensions of 116 x 138 x 43 mm, the 2711R-T4T occupies minimal panel space and simplifies installation in compact enclosures.
Application Field
The 2711R-T4T is deployed primarily in small machine and standalone equipment applications where a compact color HMI provides sufficient visualization without the cost and panel footprint of larger terminals. In packaging and labeling machinery, the 2711R-T4T serves as the operator interface for monitoring production counts, adjusting setpoints, and clearing fault conditions. The 4.3-inch widescreen display accommodates essential process graphics and numeric data, while the function keys enable rapid access to frequently used commands in fast-paced production environments.
Air handling units, conveyor systems, and material handling equipment commonly employ the 2711R-T4T as a local control interface, benefiting from its native compatibility with Micro800 and MicroLogix controllers. In these applications, the terminal’s Ethernet connectivity supports integration with plant-level networks for production monitoring, while the serial ports provide fallback communication options for legacy control architectures. The compact form factor of the 2711R-T4T proves advantageous in OEM equipment where panel space is at a premium and the HMI must fit within existing enclosure dimensions.
Water treatment and wastewater facilities utilize the 2711R-T4T for pump station monitoring, valve control, and alarm acknowledgment, where the IP65 front bezel protects against washdown and humid conditions. Food and beverage operations deploy the terminal in packaging and processing lines where the resistive touchscreen accommodates gloved operation, and the microSD slot enables recipe changes without network dependency. For facilities standardized on Rockwell Automation controllers, the 2711R-T4T offers a straightforward, well-supported visualization platform that reduces engineering effort and leverages existing FactoryTalk View ME or Connected Components Workbench development resources.
Related Products
2711R-T7T: The 7-inch variant of the PanelView 800 series, offering a larger 800 x 480 display for applications requiring more screen real estate while maintaining the same controller compatibility and communication features.
2711R-T10T: The 10-inch PanelView 800 terminal, providing a 800 x 600 display for applications that demand greater visualization area than the 2711R-T4T can accommodate.
2711P-T4W22D8S: A 4-inch PanelView Plus 7 Standard terminal, positioned above the 2711R-T4T in capability with support for more complex applications and FactoryTalk View ME software.
2711P-T6C20D8: A 6-inch PanelView Plus 6 color terminal, offering a larger display and broader feature set for applications where the 2711R-T4T is undersized.
2080-LC30-24QWB: A Micro830 controller from the Micro800 family, commonly paired with the 2711R-T4T for compact automation systems requiring integrated HMI and control.
2080-LC50-48QBB: A Micro850 controller that interfaces directly with the 2711R-T4T through EtherNet/IP, supporting the terminal’s optimized tag referencing capabilities.
2711R-RY2032: The replacement real-time clock battery for the 2711R-T4T, with a rated life of 5 years at 25°C.
2080-SD1: A microSD card option for the 2711R-T4T, used for application transfers, firmware updates, and data logging.
