Description

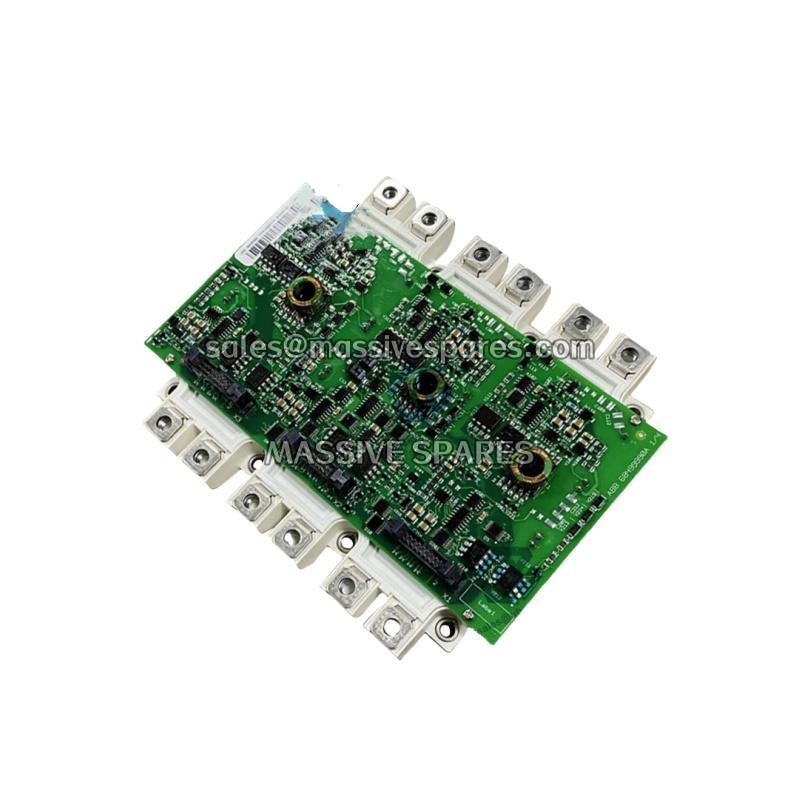

The 6MBI225U-120 / AGDR-71C is an inverter trigger drive assembly consisting of an ABB gate driver board paired with a Fuji Electric IGBT power module. The AGDR-71C (complete part number 68561906A) is the dedicated gate drive board within ABB ACS800/ACS880 series drives, responsible for IGBT gate control, isolation, and protection. The 6MBI225U-120 is the matching 1200V/225A six-pack IGBT module that executes the three-phase inverter function.
This combination forms the signal interface and power output core of the drive’s inverter section: the AGDR-71C receives PWM pulses from the main control board (RDCU), converts them into precise gate drive signals with +15V turn-on and −8V turn-off levels, and simultaneously monitors each IGBT’s saturation voltage for short-circuit detection. The 6MBI225U-120 then performs the three-phase full-bridge inversion, converting DC bus voltage into adjustable-frequency, adjustable-voltage AC output to drive the motor.
Application Scenarios
In a large paper mill’s winder drive system, an ACS800 drive powers a 250kW AC motor. This workstation starts and stops frequently, subjecting the IGBTs to severe thermal cycling stress. One day, the drive suddenly reported an overcurrent fault and shut down; a reset attempt resulted in an immediate trip on restart.
After opening the inverter section, maintenance personnel discovered that one phase leg of the 6MBI225U-120 IGBT module had short-circuited. Further testing of the AGDR-71C driver board revealed that the corresponding gate drive optocoupler had also been destroyed—a classic “IGBT explosion with collateral driver board damage” pattern. If only the IGBT module were replaced without checking the driver board, the new module would likely be destroyed again upon power-up due to abnormal drive signals.
The plant adopted a complete replacement approach using the AGDR-71C driver board and 6MBI225U-120 IGBT module as a matched set, performing static resistance testing and power-up waveform verification on the new driver board before installing the IGBT. After resuming production, this drive point operated continuously for over 18 months without a similar failure.
