ABB 6MBI450U-120 AGDR-71C Industrial Inverter Spare Part

Product Overview

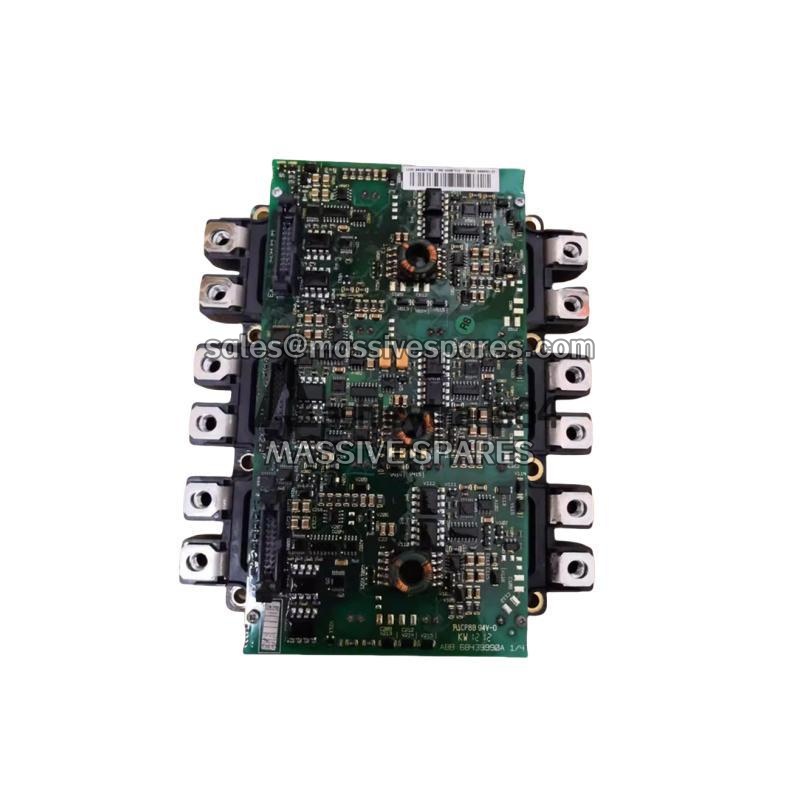

The ‌ABB 6MBI450U-120 AGDR-71C‌ is a high-performance integrated inverter driver board specially developed by ABB for its ACS800 and ACS880 series high-power frequency converters, combining the 6MBI450U-120 IGBT power module and the AGDR-71C dedicated gate drive circuit into one highly reliable unit. As the core “neural center” in the inverter power inversion unit, the ‌ABB 6MBI450U-120 AGDR-71C‌ undertakes the critical tasks of precise IGBT gate drive, isolated current and voltage sampling, and multi-dimensional overcurrent, overvoltage and undervoltage protection, ensuring the safe and efficient operation of the entire power level of the frequency converter.

Positioned between the inverter’s main control board and the power output terminal, the ‌ABB 6MBI450U-120 AGDR-71C‌ converts the PWM drive instructions issued by the main control system into gate signals that perfectly match the electrical characteristics of the IGBT, while feeding back real-time collected power module current, voltage and temperature data to the main control board to form a complete closed-loop control link. This ABB dedicated drive board is a core indispensable spare part in industrial variable frequency drive systems, covering power levels from 200kW and above, and providing stable and reliable power drive support for various high-load industrial production scenarios.

Technical Specifications
