Technical Specifications

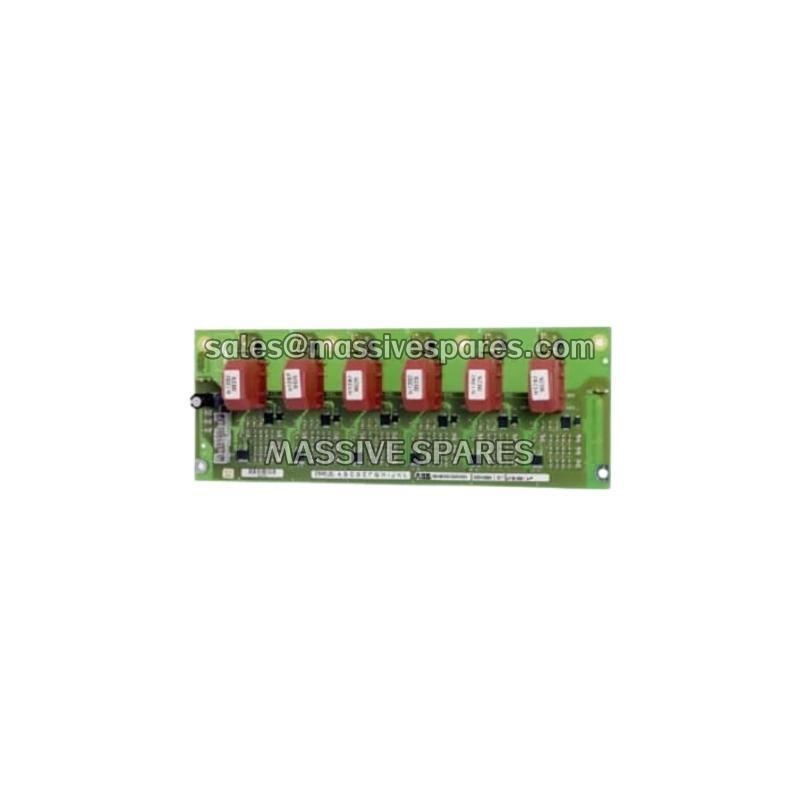

| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 3BHB006309R0001 UNS0882A-P V1 |
| Manufacturer | ABB |
| Product Type | Power Signal Interface (PSI) / Primary Unit |
| Product Family | UNS0882A Series |
| Primary Application | UNITROL 5000 Excitation Systems / AC 800M DCS |
| Supply Voltage | 24 V DC (via system backplane) |
| Isolation Voltage | ≥1500 V AC (signal isolation) |
| Redundancy Configuration | 1+1 (paired with 3BHB006310R0001 Standby) |
| Mounting Type | Plug-in module for UNITROL 5000 rack |
| Operating Temperature | 0°C to +50°C |
| Protection Class | IP20 |
| Weight | Approximately 0.22 kg |
Main Features and Advantages
The ABB 3BHB006309R0001 delivers a combination of power conditioning, signal integrity, and redundant architecture that addresses the stringent reliability requirements of generator excitation control systems.
Redundant power path architecture: The ABB 3BHB006309R0001 operates as the Primary unit in a 1+1 redundant PSI configuration. When paired with the Standby module, the two units continuously handshake to confirm operational status, enabling bumpless switchover in the event of a fault. This redundancy ensures that a single PSI failure does not compromise excitation system availability, providing protection against unnecessary generator trips during transient power disturbances.
Advanced signal isolation and conditioning: The ABB 3BHB006309R0001 provides galvanic isolation exceeding 1500 V AC between input and output domains, effectively breaking ground loops that can introduce measurement errors in excitation control signals. The module filters ripple and surge artifacts from the 24 VDC supply, presenting a clean power source to the backplane and regulator electronics. This conditioning capability proves particularly valuable in plant environments where the DC bus may be shared with noise-generating equipment such as VFDs and contactor coils.
Form-fit-function replacement design: The ABB 3BHB006309R0001 is engineered as a direct plug-in replacement for existing UNITROL 5000 installations. System-dependent settings are retained during replacement, eliminating the need for recalibration or reprogramming. This design reduces mean time to repair from hours to minutes, enabling maintenance teams to restore full excitation control rapidly and minimize unit downtime.
Lifecycle management integration: As part of ABB’s Excitation Care program, the ABB 3BHB006309R0001 supports proactive maintenance strategies through predictable electrical behavior monitoring. Plant operators can track health trends and schedule replacements before end-of-life failures occur, avoiding costly unplanned outages and extending overall excitation system lifecycle.
