Technical Specifications

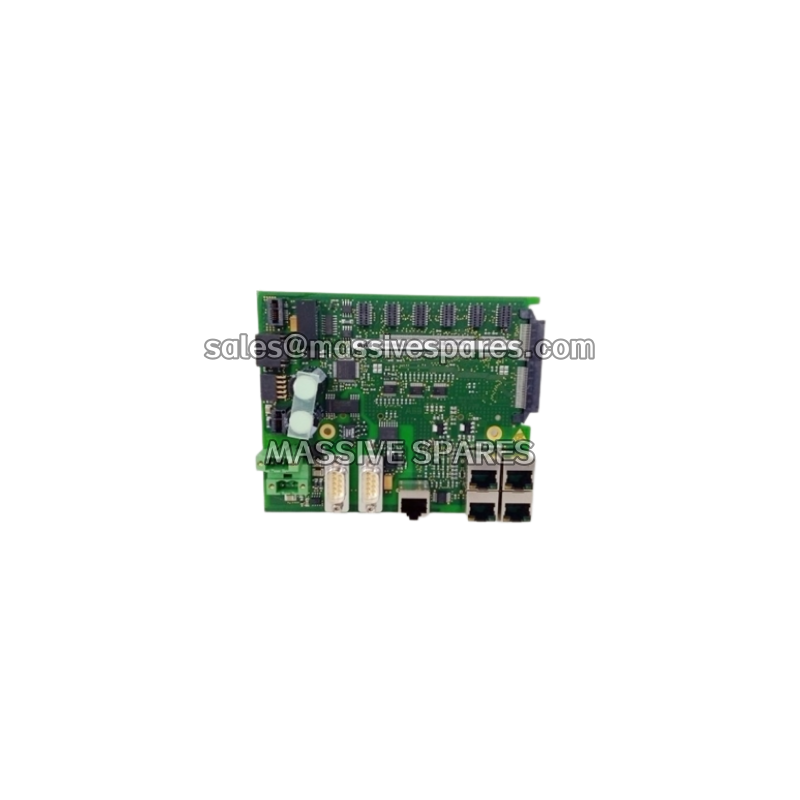

| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 3BHE019633R0101 |
| Functional Designation | PD D200 A101 |
| Manufacturer | ABB |
| Product Type | Exciter Controller / Pulse Distribution Module |
| Product Family | PDD D200 Series |
| Compatible Systems | UNITROL 6000, AC 800PEC, MEGADRIVE-LCI |
| Processor Architecture | 32-bit Digital Signal Processor (DSP) |
| Control Modes | AVR, FCR, PFR, VAR, PID |
| Regulation Accuracy | ±0.1% of rated voltage |
| Response Time | < 20 ms |
| Communication Protocols | PROFIBUS DP, MODBUS RTU, Ethernet |
| Power Supply | 24 V DC (rack backplane) |
| Isolation Voltage | Up to 2.5 kV (signal to ground) |
| Operating Temperature | −20°C to +60°C |
| Mounting Type | DIN rail / PEC subrack slot |
| Weight | Approximately 0.6–0.8 kg |
Main Features and Advantages
The ABB 3BHE019633R0101 PD D200 A101 delivers a combination of digital regulation precision, comprehensive protection, and pulse distribution reliability that addresses the stringent requirements of synchronous machine excitation control.
Advanced digital regulation architecture: The ABB PD D200 A101 employs a high-performance 32-bit DSP platform executing sophisticated control algorithms that deliver exceptional regulation accuracy of ±0.1% of rated voltage . This precision ensures stable generator terminal voltage despite significant load fluctuations, contributing to improved power quality and grid stability. The ABB 3BHE019633R0101 supports multiple control modes—including automatic voltage regulation (AVR), field current regulation (FCR), power factor control (PFR), and reactive power (VAR) control—allowing configuration to match specific grid code obligations and application requirements .
Comprehensive protection and limiting functions: The ABB PD D200 A101 integrates extensive protection features that safeguard both the generator and the excitation system. Overexcitation limitation (OEL) prevents field current from exceeding generator thermal limits, while underexcitation limitation (UEL) protects against loss of synchronism and stator end-core heating . The V/Hz limiter prevents overfluxing during startup or overspeed conditions, and the module includes field ground fault detection to identify insulation degradation before it leads to catastrophic failure . These protective functions position the ABB 3BHE019633R0101 as a comprehensive solution for critical power generation applications where safety and reliability are paramount.
Pulse distribution and signal integrity: As a pulse distribution module, the ABB PD D200 A101 receives low-level control pulses from the processor and amplifies/distributes them to drive the gates of large power thyristors . The module ensures that firing pulses are precise, synchronized, and have sufficient power to reliably switch heavy-duty thyristor bridges. Nanosecond-level timing accuracy in pulse distribution is vital for maintaining the stability of synchronous machines and large drives . Integrated monitoring detects faulty firing pulses or feedback errors, allowing the system to trip safely before hardware damage occurs .
Flexible communication and system integration: The ABB 3BHE019633R0101 supports multiple communication protocols including PROFIBUS DP, MODBUS RTU, and Ethernet, facilitating seamless integration with distributed control systems and plant-wide automation networks . The module is designed specifically for the ABB AC 800PEC controller family, allowing for plug-and-play replacement in UNITROL systems .
