Application Scenarios
In a steel-mill power house running several ACS6000 drives on rolling-mill main motors and induced-draft fans, the maintenance log told a consistent story: uncoated divider boards in humid cabinets began drifting after a few years, and sporadic overvoltage alarms grew into unplanned stops. Each event cost the plant roughly six hours of production per drive. The issue was not the upper control card and not the motor — it was the high-impedance resistor divider at the bottom of the signal chain, slowly compromised by moisture tracking across the board surface. Replacing the failed unit with a coated 3BHE021083R0102 restored accurate bus-voltage feedback and removed the false trips at the source. For a maintenance planner, that is the value of specifying the coated revision in any cabinet exposed to washdown, salt air, or process chemicals: the part costs slightly more once, and saves a shutdown later.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | 3BHE021083R0102 |
| ABB Type Designation | XVC770BE102 |
| Manufacturer | ABB (Switzerland) |
| Product Category | HVD board — high-voltage divider / interface PCB assembly |
| Core Function | DC-bus voltage measurement, high-voltage signal isolation and scaling |
| Compatible Systems | ABB ACS6000 medium-voltage AC drives (selected PCS6000 converter deployments) |
| Legacy Replacement | Reported as replacement for 3BHE006414R0001 (XVC770AE, high-voltage divider) — verify against host BOM |
| Signal Path | Scaled, galvanically isolated low-voltage analog output to upper control board |
| Isolation | High-voltage isolation between power-side and control-side circuits |
| Coating | Anti-corrosion conformal coating (epoxy-family on this revision) — moisture, dust, and chemical resistance |
| Mounting | Internal plugin / chassis slot inside MV drive power cabinet |
| Power Supply | Via host drive cabinet backplane (system-dependent) |
| Protection Rating | IP20 (intended for cabinet-internal installation) |
| Operating Temperature | Industrial cabinet environment (confirm against host drive manual) |
| Net Weight | Approx. 0.23 kg |
| Dimensions | Compact plugin board (host-cabinet dependent) |
| Customs Tariff | 85049099 |
Technical Principles and Innovative Values

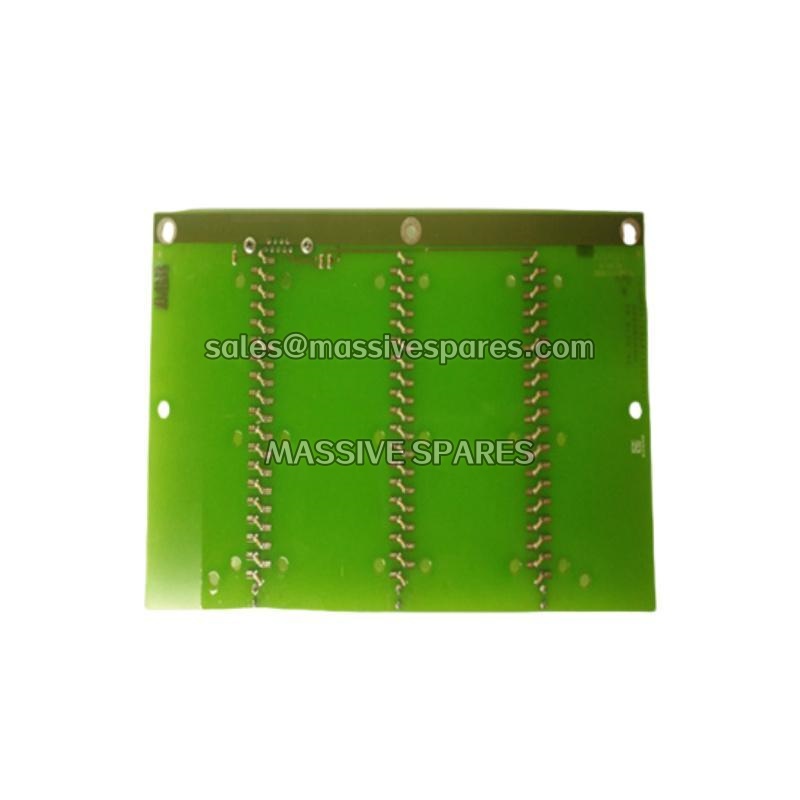

- Innovation Point 1 — Precision high-voltage scaling. The 3BHE021083R0102 uses a precision high-voltage resistor network to reduce the drive’s DC-bus voltage — which can be in the thousands of volts — to a low-voltage analog signal suitable for the upper control electronics. Done accurately, this is the foundation of vector control: bus voltage is needed for flux calculation, speed regulation under load transients, and overvoltage protection.
- Innovation Point 2 — Galvanic isolation between power and control sides. Full isolation prevents a high-voltage transient on the bus from propagating into the drive’s low-voltage control world. That barrier protects both equipment and personnel, and is the reason this board sits in its own designated power-cabinet slot rather than being replaced by a generic signal conditioner.
- Innovation Point 3 — Conformal coating as a service-life feature. The coated revision carries an anti-corrosion conformal layer over the divider network and isolation components. In humid, dusty, or chemically aggressive environments, that coating is what prevents surface leakage and drift — the dominant failure mode of uncoated boards in this location.
- Innovation Point 4 — Backward-compatible form factor. Where the 3BHE021083R0102 is used as a replacement for the legacy XVC770AE divider, the mechanical and electrical interface is reported as compatible, allowing a direct board swap without cabinet rewiring or firmware migration. This is revision-dependent and must be confirmed against the host BOM.
- Innovation Point 5 — A small, low-thermal-load assembly. At roughly 0.23 kg, the board occupies minimal space and adds negligible thermal load to the power cabinet. Its low mass also makes handling and ESD-safe storage straightforward.
