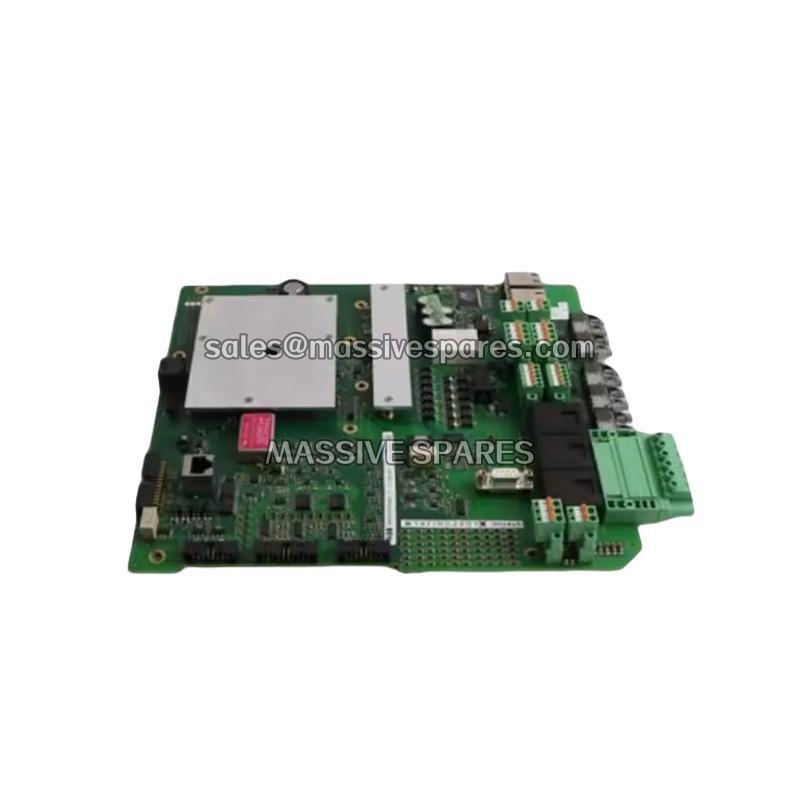

ABB 3BHE022287R0001 UC D240 A01 Converter Module: The CCM Core Board Powering UNITROL 6080 Excitation Systems

Application Scenarios

In a 600 MW thermal power plant, the UNITROL 6080 excitation cabinet suddenly reported an “AVR internal fault” during a critical peak-load period. The operator noticed the generator terminal voltage beginning to drift, and reactive power output became unstable. Investigation pointed to the UC D240 A01 (3BHE022287R0001) in the excitation rack—the board responsible for running the PID regulation loop and distributing firing angles to the thyristor bridge. With the plant already committed to grid dispatch commitments, a forced outage was unthinkable. Fortunately, a spare 3BHE022287R0001 was in the warehouse. Following the standard procedure of backing up parameters from the failed board via UNITROL Service Tool, extracting it, inserting the replacement, and restoring the Flash configuration, voltage regulation returned to ±0.2% within one synchronization cycle . The plant’s electrical engineer noted afterward: “The UC D240 A01 is the kind of spare you cannot afford to be without. When it fails, the generator loses its automatic voltage brain, and manual excitation becomes the only fallback.”

This scenario plays out across thermal, hydro, and gas turbine power plants wherever UNITROL 6080 excitation systems are deployed. The 3BHE022287R0001 continuously samples PT and CT secondary signals, executes the automatic voltage regulator (AVR) algorithm, applies V/Hz and over-excitation limiters, and sends precise firing pulses to the power bridge—all at millisecond-level update rates. When this board degrades, the entire excitation control chain becomes unreliable .
