Product Overview

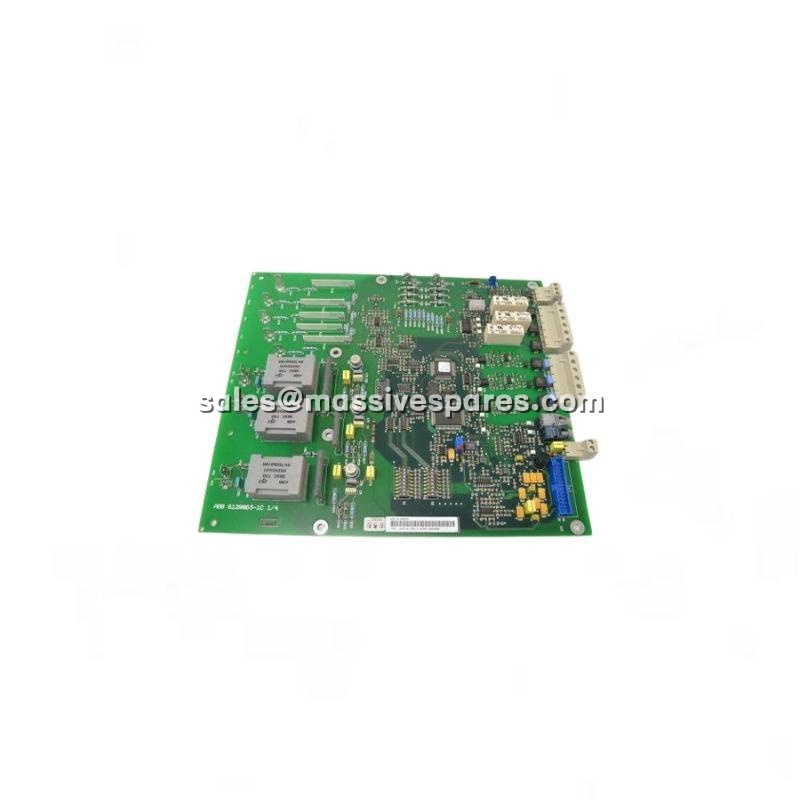

The ABB 64666606, universally identified by its type designation DSMB-02C, is a Rectifier Control Board—also described across the ABB service literature as a drive main control and digital signal interface board—engineered for the ABB ACS800 MultiDrive family, specifically the rectifier/supply units (DSU) and the legacy DST series of DC drives. Within a MultiDrive line-up, the rectifier unit is the front end that converts three-phase AC mains into a regulated DC bus shared by multiple inverter modules; the ABB 64666606 is the intelligent control core that makes this conversion stable, synchronized, and fault-tolerant.
At the heart of its function, the ABB 64666606 generates and manages the gate-drive timing for the rectifier bridge—whether thyristor (SCR) or IGBT—closing a fast current and voltage control loop around the DC bus. It continuously monitors bus voltage, input-current balance, phase sequence, and device health, then arbitrates protective trips for overvoltage, overcurrent, overtemperature, phase loss, and bridge-device faults before they can cascade into downstream inverters or motors. This closed-loop regulation is what allows a MultiDrive to deliver clean, stiff DC bus power to every connected inverter with minimal ripple and predictable dynamic response.
The ABB 64666606 also serves as the communication and signal gateway between the rectifier unit and the drive’s higher-level control architecture. It exchanges operating data and fault codes with the传动主控单元—such as an RDCU or via the AINT interface board—over the internal drive bus, while its on-board digital I/O and configurable interface channels connect start/stop, permissives, fault reset, status feedback, and interlock logic to the plant PLC, HMI, and safety system. Multi-color LEDs provide at-a-glance indication of RUN, FAULT, and power status. For maintenance teams supporting mature ABB drive installations, the 64666606 offers a like-for-like replacement that restores full rectifier control without rewiring the cabinet or re-engineering the drive architecture.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 64666606 (Type DSMB-02C, ordering no. 3AFE64666606) |
| Manufacturer | ABB (ABB Motors / ABB Drives) |
| Product Type | Rectifier Control Board / Drive Main Control Board |
| Compatible Platform | ABB ACS800 MultiDrive (rectifier / supply units & DSU); DST series DC drives |
| Control Object | Three-phase thyristor (SCR) or IGBT rectifier bridge |
| Core Function | Gate-drive timing, DC-bus voltage/current closed-loop regulation, power-factor management |
| DC Bus Range | 500–1000 V DC (dependent on rectifier-unit frame size) |
| Control / Logic Supply | 24 V DC (±20%) |
| Internal Logic Rails | +5 V DC, ±15 V DC |
| Protection Functions | Overvoltage, overcurrent, overtemperature, phase loss, thyristor/IGBT fault monitoring |
| Communication | Internal drive bus to RDCU / AINT; RS-485 / Modbus RTU referenced |
| Signal Indication | Multi-color LEDs (RUN / FAULT / POWER) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 (cabinet-internal installation) |
| Dimensions (L×W×H) | 384 × 54.5 × 55 mm |
| Weight | Approx. 0.3 kg |
| Compliance | IEC 61800-5-1; IEC 61000 EMC; CE / UL referenced |
| Product Status | Discontinued / Legacy (spare-part market) |
Main Features and Advantages
Precise rectifier-bridge control: The defining capability of the ABB 64666606 is its management of gate-drive timing for the thyristor or IGBT rectifier bridge. By closing a fast, deterministic control loop around the DC bus, it holds bus voltage and current tightly regulated even as inverter loads surge, switch, or regenerate—maintaining the stiff, stable bus that every connected drive module depends on.
Comprehensive protection suite: Overvoltage, overcurrent, overtemperature, phase loss, and bridge-device fault monitoring are built directly into the control logic. The board detects these conditions early and initiates a controlled trip before damage propagates, protecting not only the rectifier but also the expensive inverters and motors downstream.
Closed-loop DC-bus and power-factor management: The ABB 64666606 continuously regulates the DC-link voltage while optimizing the displacement factor of the input current. This reduces harmonic stress on the supply network and improves overall drive efficiency—an important consideration in multi-megawatt MultiDrive installations.
Communication and diagnostics: Via the internal drive bus, the board exchanges real-time operating data and fault codes with the RDCU / AINT control hierarchy, making faults visible at the operator HMI and in the drive parameter set. Multi-color RUN / FAULT / POWER LEDs give technicians immediate first-line diagnostics without software tools.
Digital I/O and interfacing: Configurable digital input and output channels—along with RS-485 / Modbus RTU—allow the ABB 64666606 to tie start/stop commands, permissives, fault reset, status feedback, and interlock logic directly to the plant PLC and safety system. This lets maintenance teams add hard-wired safety and status functions without rewriting higher-level control code.
Direct interchange for earlier revisions: The ABB 64666606 is positioned as the upgraded evolution of the DSMB-01C main control board, with optimized communication processing and faster control response. It offers a straightforward replacement path—though firmware and parameter-set verification remain essential, as the board is not interchangeable with DSMB-03C hardware.
Industrial-grade EMC and thermal design: A multi-layer PCB with controlled-impedance routing and ground-plane noise suppression gives the board strong immunity to the high-current, high-dV/dt environment inside a drive cabinet. Conformal coating and robust component selection support continuous 24/7 duty across the full -20°C to +60°C range.
