Product Overview

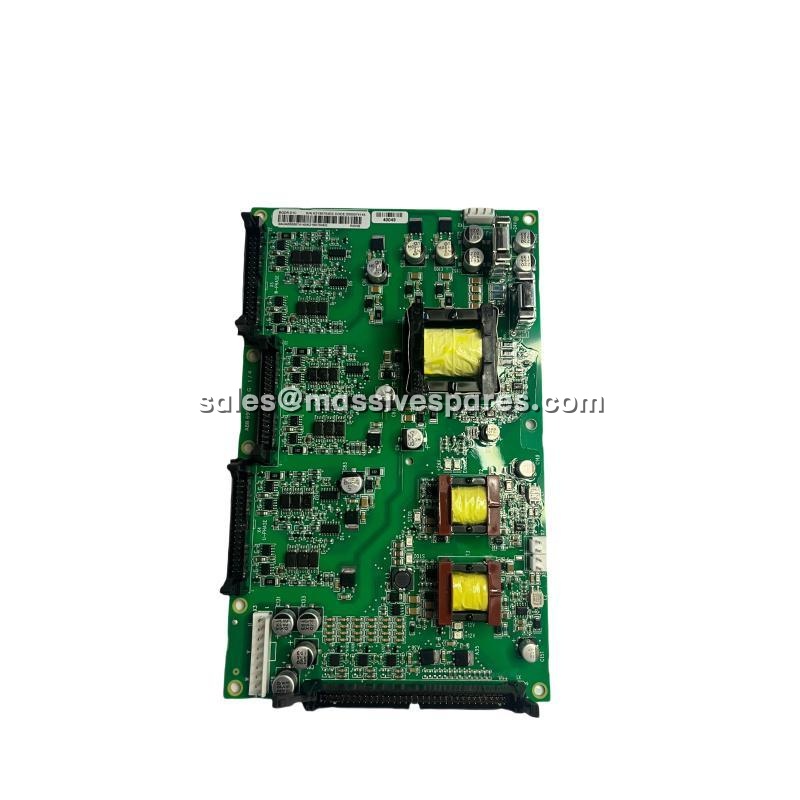

The ABB 69037615F BGDR-01C is a specialized drive-internal brake chopper and gate driver control module engineered for ABB’s ACS800, ACS850, and ACS880 family frequency converters. Within ABB’s spare-parts nomenclature, the “BGDR” designation identifies a brake-related component in the drive’s DC-bus management chain, specifically the control/interface PCB that monitors DC-link voltage and fires the braking IGBT/chopper to route regenerated energy into an external brake resistor . The ABB 69037615F BGDR-01C also functions as an IGBT gate driver board, converting low-voltage PWM logic signals from the drive controller into the high-voltage gate drive pulses required to switch the power semiconductors, while providing critical electrical isolation between the control and power circuits .
The ABB 69037615F BGDR-01C serves as a critical protective interface within the drive’s power architecture. When a connected motor regenerates energy during fast deceleration, overhauling loads, or downhill conveyor operation, the drive’s DC-link voltage rises. The ABB 69037615F BGDR-01C continuously tracks this bus voltage and, once the threshold is reached, switches the braking IGBT on/off in PWM fashion to clamp the bus via an external DCR-type brake resistor . Without a functioning brake chopper path, DC-bus voltage climbs until the drive trips on overvoltage, or worse, the DC-link capacitors are stressed beyond design limits.
As a mature, field-proven component within ABB’s extensive drive spare-parts portfolio, the ABB 69037615F BGDR-01C remains actively deployed in the substantial installed base of ACS800, ACS850, and ACS880 drives across cranes, hoists, conveyors, marine winches, and high-inertia test benches worldwide. The module is also referenced by the alternative part number 3AUA0000074145 in ABB’s documentation and ordering systems .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | BGDR-01C |
| Catalog Reference | 69037615F |
| Alternate Part Number | 3AUA0000074145 |
| Manufacturer | ABB Ltd. |
| Product Type | Brake Chopper / IGBT Gate Driver Control Module |
| Compatible Drives | ABB ACS800, ACS850, ACS880 (with +D150 or equivalent brake-chopper option) |
| Control Supply | 24 V DC (from drive internal control rail) |
| DC-Bus Monitoring Threshold | ~800 V DC (400 V drive class) / ~1050 V DC (690 V class), version-dependent |
| Braking Interface | Connects to external DCR-type brake resistor via drive power section |
| Isolation Voltage | >2.5 kV (high-voltage optocoupler or capacitive isolation) |
| Protection Functions | Desaturation (Desat) short-circuit detection, Undervoltage Lockout (UVLO), fault feedback |
| Switching Frequency Support | Up to 20 kHz (system-dependent) |
| Operating Temperature | 0 °C to +55 °C (control cabinet) |
| Storage Temperature | -40 °C to +70 °C |
| Protection Class | IP20 (cabinet-internal) |
| Dimensions (Approx.) | 120 mm × 80 mm |
| Weight (Approx.) | 0.22 kg |
| Country of Origin | Estonia |
