Application Scenarios
In a petrochemical refinery’s Safety Instrumented System (SIS), emergency shutdown valves must respond reliably when process parameters exceed safe limits. A refinery operating ABB System 800xA faced a critical challenge: ensuring that shutdown commands reach field actuators even during single-point failures in the output pathway.
The 3BSE028588R1 DO880-1 addresses this through its SIL3 certification and redundancy support. In redundant configuration, the module enables seamless failover—if one output driver fails, the backup module continues driving critical safety valves without interruption. Each channel includes configurable short-circuit and open-load detection, allowing operators to identify field wiring degradation before it escalates to a safety event. For refineries where unplanned downtime costs millions, the DO880-1 provides the deterministic output control required for high-availability safety loops.
Parameters
| Main Parameters | Value / Description |
|---|---|

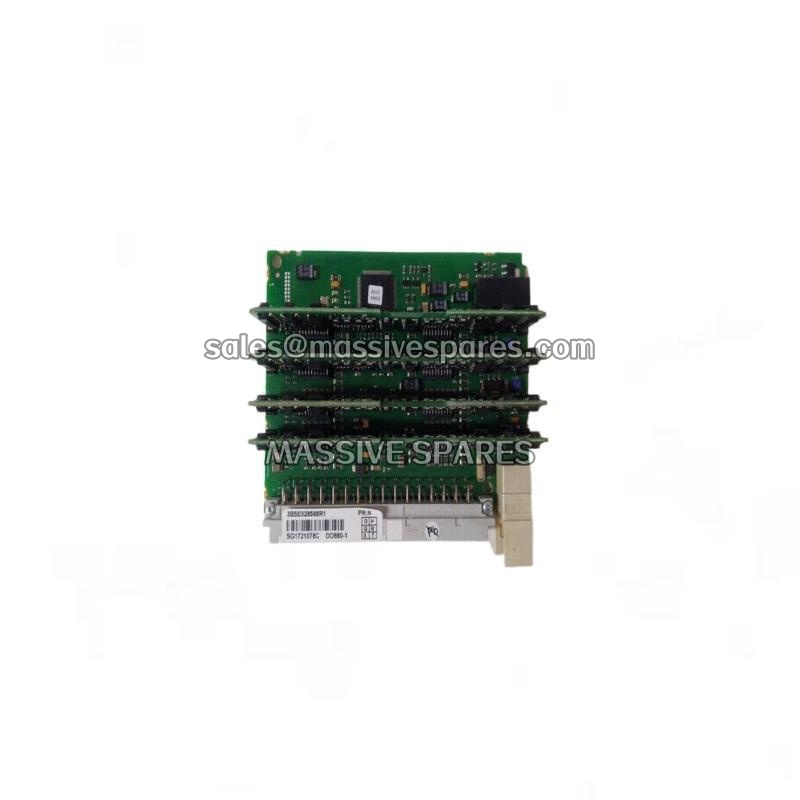

| Product Model | 3BSE028588R1 / DO880-1 |
| Manufacturer | ABB |
| Product Type | Digital Output Module |
| Series/Platform | S800 I/O / System 800xA |
| Number of Channels | 16 |
| Output Signal Type | 24V DC Current-Sourcing (19.2–32V DC) |
| Output Current per Channel | 0.5A (Maximum Continuous) |
| Output Protection | Current Limiting, Over-Temperature Protection |
| Redundancy Support | Single or Redundant Configuration |
| Loop Supervision | Configurable Short/Open Load Detection (50Ω to 2kΩ) |
| Isolation | Groupwise Isolated from Ground, 500V AC Dielectric Test |
| Power Consumption | 5.6W (0.5A × 16 Channels) |
| Field Cable Length | Up to 600 Meters |
| Operating Temperature | 0°C to +55°C |
| Protection Class | IP20 |
| Safety Certification | SIL3 (IEC 61508), Category 4 (EN 954-1) |
| Marine Certifications | ABS, BV, DNV-GL, LR, RS, CCS |
Parameter data referenced from ABB S800 I/O documentation.
Technical Principles and Innovative Values
Innovation Point 1 – SIL3 Safety Integrity with Fault Tolerance: The DO880-1 achieves SIL3 certification under IEC 61508 with a fault tolerance of 1 for output drivers. This means a single driver failure does not compromise the module’s ability to perform its safety function in redundant configurations. For emergency shutdown systems and burner management applications, this certification provides the hardware foundation for achieving overall safety loop integrity.
Innovation Point 2 – Comprehensive Loop Supervision Without Output Pulsing: Unlike modules that briefly interrupt outputs to test wiring integrity, the 3BSE028588R1 performs short-circuit and open-load detection across a configurable resistance range (50Ω to 2kΩ) without pulsing the output. This capability is critical for driving loads that cannot tolerate even momentary power interruption—such as holding contactors in energized state or maintaining valve positions during safety-critical operations.
Innovation Point 3 – Degraded Mode for Normally Energized Channels: The DO880-1 supports a degraded mode (from DO880 PR:G) that allows normally energized outputs to remain controllable even when driver errors occur. In processes where loss of output power creates a hazard—such as fail-safe valve configurations—this feature provides an additional layer of operational resilience by keeping critical channels functional during fault conditions.
