Description

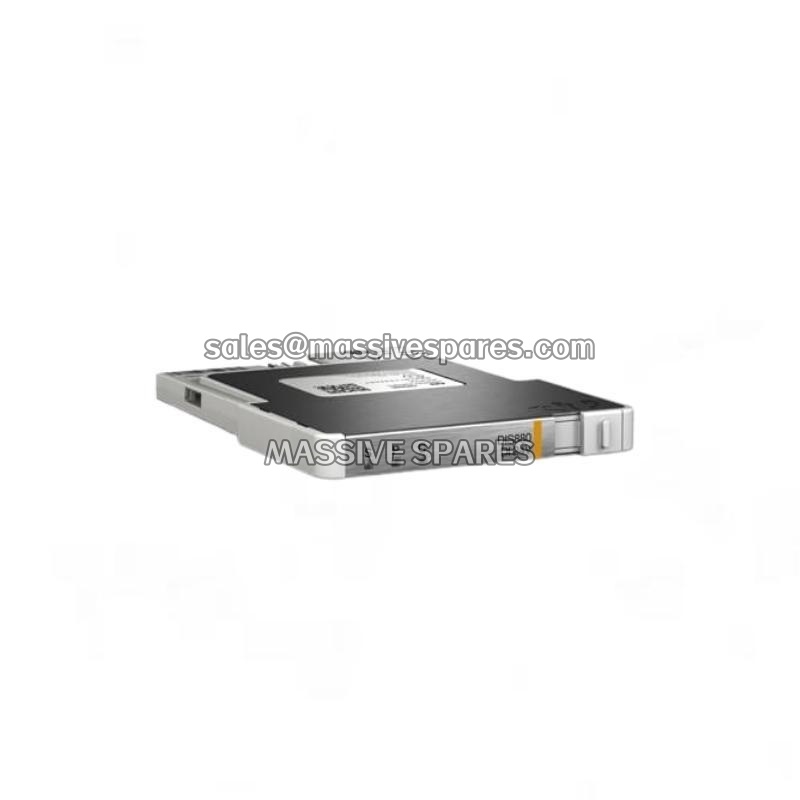

The ABB DIS880, article number 3BHE074057R1 in procurement records and 3BSE074057R1 in ABB’s current Select I/O hardware selector, is a single-channel, 24 V DC, SIL 3 digital-input Signal Conditioning Module (SCM) for ABB Ability™ System 800xA Select I/O. It is not a complete I/O rack or fieldbus gateway. Installed in a compatible Module Termination Unit (MTU) and Field Terminal Block (FTB), the DIS880 conditions one contact or sensor loop, provides galvanic isolation and diagnostics, and makes the signal available to the Select I/O Ethernet cluster and AC 800M control environment.
Application Scenarios
An offshore oil and gas facility was midway through an automation upgrade when the instrument count changed again: new emergency shutdown valves, pump permissives, and fire/gas skids required additional digital inputs, while the cabinet layout was already frozen. Conventional multi-channel cards would have forced the project to buy unused channels, rework marshalling, or reshuffle existing loops. Instead, engineers populated additional Select I/O positions with ABB DIS880 modules, one per critical 24 V DC contact.
The value was not simply “more I/O.” Each DIS880 occupies one slot and serves one loop, so the I/O mix could be changed without discarding an entire 8- or 16-channel card. Loop checks could begin on installed hardware while application engineering continued in the office. Dry-contact ESD/PSD inputs, proximity-device status, and externally powered 4-wire device states were acquired with open/short supervision, galvanic isolation, and Sequence of Events (SOE) context. The result was a more defensible safety-related input path and fewer last-minute cabinet changes—provided that the complete safety function, certificates, and system revision were validated.
Parameter
| Main Parameter | Value / Description |
|---|---|
| Product Designation | DIS880 |
| Article / Order Number | 3BSE074057R1 |
| Manufacturer | ABB |
| Product Category | Select I/O Signal Conditioning Module (SCM); digital input |
| System Platform | ABB Ability System 800xA Select I/O |
| Channels | 1 channel per SCM |
| Signal Type | 24 V DC digital input |
| Input Voltage Range | 19.2–30 V DC |
| Device Compatibility | 2-wire, 3-wire, and externally powered 4-wire devices; dry contacts and proximity devices |
| Field Power | Current-limited to 30 mA |
| Terminal Robustness | ±35 V between terminals |
| Isolation | Galvanic, channel-to-system and channel-to-channel; routine factory test at 3060 V DC |
| Signal Filter | Configurable 0–100 ms |
| Diagnostics | Loop open/short supervision; hardware, communication, and internal-power supervision |
| Sequence of Events | Supported |
| Safety Integrity | Certified for SIL 3 as a high-integrity digital input; project safety case still required |
| Intrinsic Safety | No — not an IS barrier version |
| Redundancy | Supported at the Select I/O cluster level |
| Hot Swap | Supported |
| Power Supply | 24 V DC through Modulebus / Select I/O carrier |
| Power Dissipation | 0.55 W |
| Dimensions | 77.9 × 105 × 9.8 mm |
| Weight | 73 g including base |
| Operating Temperature | –40 to +70 °C |
| Storage Temperature | –40 to +85 °C |
| Humidity | 5–95%, non-condensing |
| Pollution Degree | 2 per IEC 664-1 |
| Altitude | –1000 to 5000 m; restrictions apply |
| EMC | IEC/EN 61000-6-4 and IEC/EN 61000-6-2 |
| Overvoltage Category | II per IEC 60664-1 |
| Protection Rating | IP20 per IEC 60529; install inside a protected cabinet |
| Certifications / Approvals | CE, UKCA; electrical safety to IEC/EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1-12, IEC/EN 61010-2-201, UL 61010-2-201, and CSA C22.2 No. 61010-2-201; confirm country-specific approvals |
| Hazardous Location | Installation in hazardous areas/locations supported; check ATEX/IECEx and installation restrictions per project certification |
