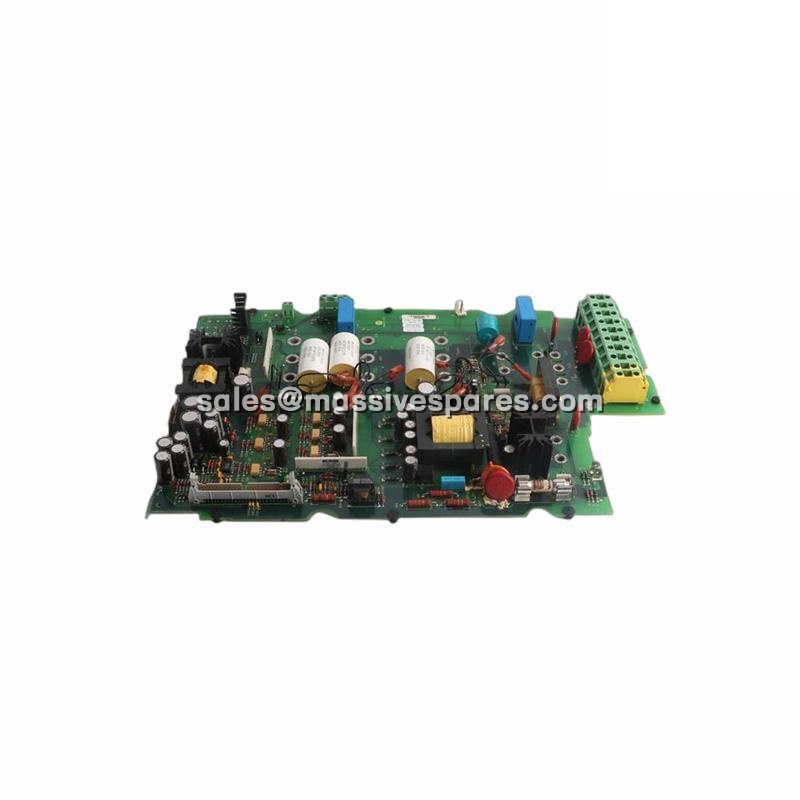

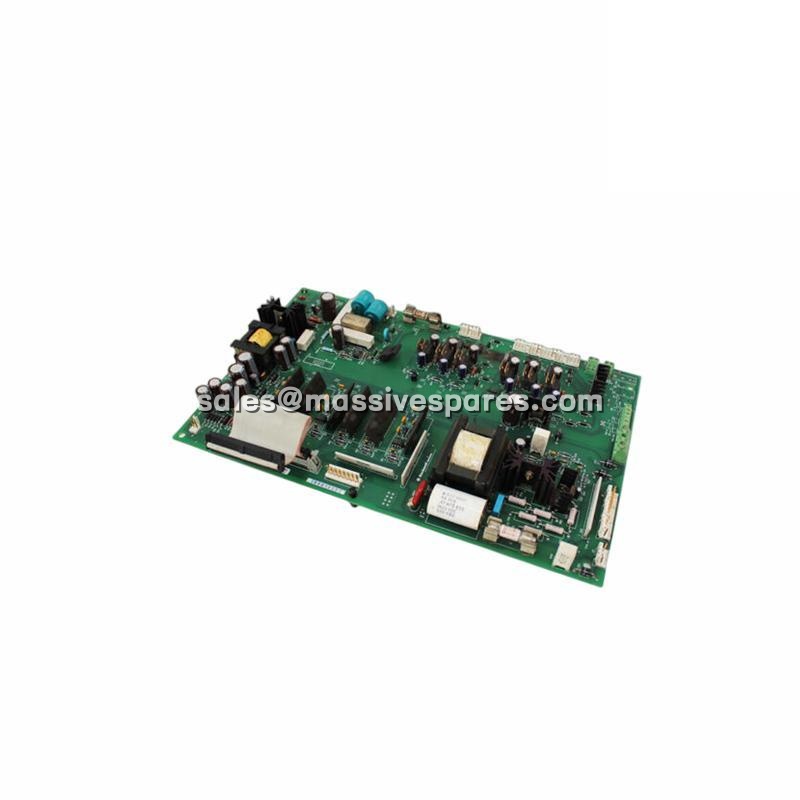

Allen-Bradley 1336-BDB-SP5C Gate Driver Board for 1336STG Drives

Application Scenarios

In a manufacturing facility running legacy Allen-Bradley 1336STG variable frequency drives for conveyor systems or extruder motors, a gate drive board failure can bring an entire production line to a halt. When a 1336-BDB-SP5C fails due to component degradation or electrical fault, the drive loses its ability to properly switch the power transistors, resulting in motor stoppage or erratic operation. Maintenance teams face a critical decision: replace the entire drive at significant cost and lead time, or source the specific gate driver board to restore the existing unit.

The 1336-BDB-SP5C addresses this exact pain point. As a direct replacement board designed for the 1336STG platform, it allows maintenance personnel to perform targeted repairs rather than full drive replacement. In industries where 1336 drives remain in service despite being discontinued, having access to a reliable 1336-BDB-SP5C spare means the difference between a one-day repair and a week-long production interruption while waiting for a complete drive replacement.

For plant engineers managing aging infrastructure, the 1336-BDB-SP5C represents a cost-effective path to extending the operational life of existing drive systems. The board’s 460V AC voltage rating and 25 HP capacity align with typical industrial motor control requirements, making it a practical solution for facilities that continue to rely on Allen-Bradley 1336 technology.
