Description

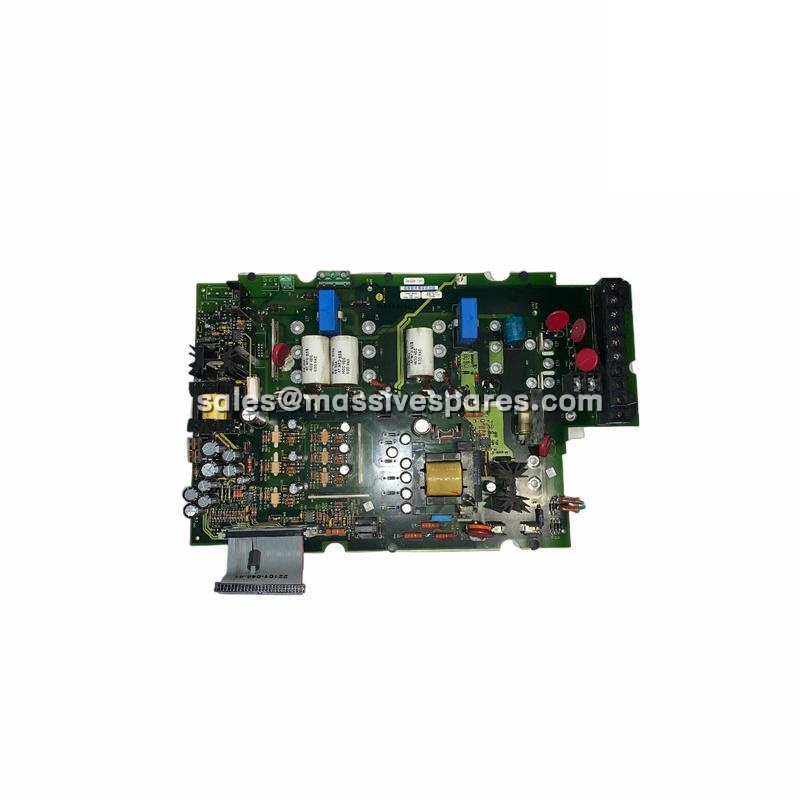

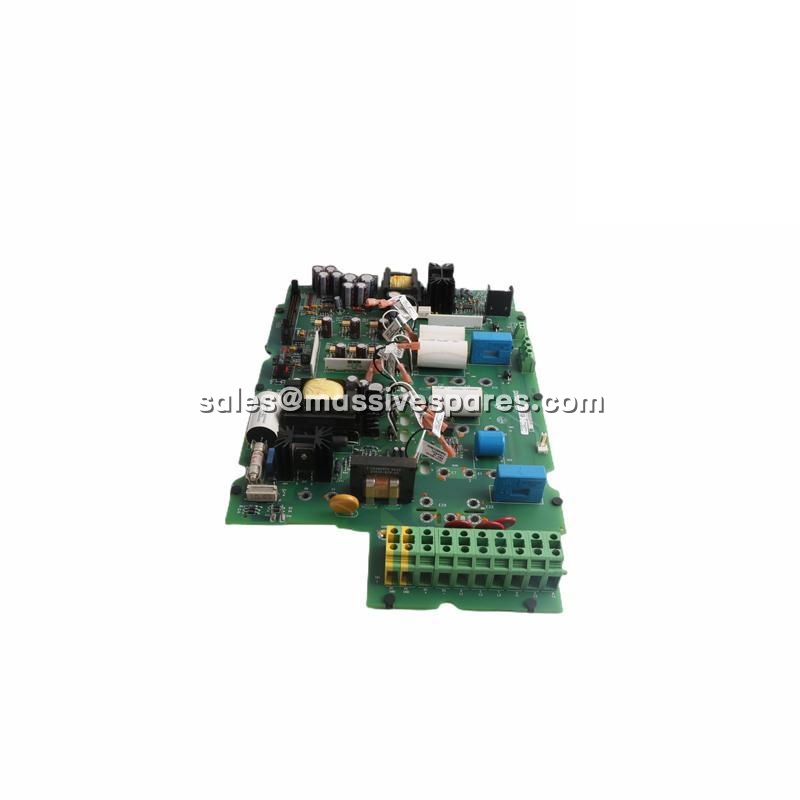

The 1336-BDB-SP5D is a factory-original gate driver printed circuit board (PCB) manufactured by Allen-Bradley (Rockwell Automation). It is a critical internal component of the 1336 family of adjustable frequency AC drives—including the PLUS, PLUS II, FORCE, IMPACT, and REGEN series—functioning as the vital interface between the drive’s low-voltage control logic and its high-power IGBT/SCR switching devices.
Designed for 460V AC, 25-horsepower (18.6 kW), Frame B applications, the 1336-BDB-SP5D converts low-level PWM switching signals from the main control processor into precisely timed, high-current gate pulses that turn the IGBT power modules on and off. It is a Level 1 spare part, meaning one board is required per drive, and is typically stocked as part of a plant’s critical-spare strategy for maintaining legacy 1336-series assets.
Application Scenarios
Picture a food-and-beverage bottling plant where a 20-HP conveyor drive—powered by a 1336 PLUS II VFD—has run reliably for 15 years. One morning, the line goes down: the drive faults on “Overcurrent” followed by “Gate Fault,” and a visual inspection of the gate driver board reveals a discolored trace and a failed resistor network near the IGBT interface. The motor and power module test clean, but the drive will not run. A full VFD replacement would mean re-engineering the panel, re-terminating cables, re-entering parameters, and a multiday production stoppage.
By sourcing a tested 1336-BDB-SP5D gate drive board, the plant’s maintenance team performs a board-level swap in under an hour. The control parameters remain intact on the drive’s main control board; only the gate driver assembly is replaced. The line is back online the same shift, at a fraction of the cost of a full drive change-out. This is the practical, high-value role the 1336-BDB-SP5D plays in hundreds of MRO programs worldwide: keeping proven installed assets running without the cost and disruption of full system replacement.
Parameter
| Main Parameters | Value / Description |
|---|---|
| Product Model | 1336-BDB-SP5D |
| Alternate Part Number | 74103-244-55 |
| Manufacturer | Allen-Bradley / Rockwell Automation (USA) |
| Product Type | PCB Gate Drive Board (Base Driver Board) |
| Compatible Drive Series | 1336 PLUS (Series C+), PLUS II (Series A+), FORCE (Series C+), IMPACT (Series C+), REGEN |
| Voltage Rating | 460V AC |
| Power Rating | 25 HP (18.6 kW) |
| Drive Frame Size | Frame B |
| Quantity Required per Drive | 1 |
| Spare Part Level | Level 1 (primary replacement component) |
| Input Voltage Range | 460V AC (three-phase industrial supply) |
| Operating Temperature | 0 °C to 40 °C (installed within drive enclosure) |
| Isolation Type | Optical isolation between control logic and power stage |
| Protection Features | Desaturation detection, under-voltage lockout (UVLO), short-circuit / shoot-through protection |
| Board-to-Board Connectors | J2, J6, J7, J8, J9, J10 jumper connectors; TB6 fan connector |
| Mounting Method | Screw-mounted PCB inside drive chassis; vertical orientation |
| Product Lifecycle Status | Discontinued / Obsolete (available as surplus, refurbished, or repaired) |
| Physical Dimensions | Approx. 40.7 cm × 25.7 cm × 5 cm |
| Weight | Approx. 1.52 kg – 2.0 kg (depending on revision) |
| UPC | 662453676432 |
