Application Scenarios
A North American manufacturing facility operating a conveyor system with multiple 1336 PLUS II drives experienced intermittent drive faults that shut down the line without clear error codes. The maintenance team traced the issue to degraded signal processing on the main control board, which caused erratic motor speed commands during high-load periods. After replacing the 1336F-MCB-SP2L in the affected drives, the conveyor system resumed stable operation, and the unexplained faults disappeared entirely. This scenario highlights the 1336F-MCB-SP2L‘s critical role as the command center that translates control logic into precise motor operation.
Parameters
| Parameter | Value/Description |
|---|---|

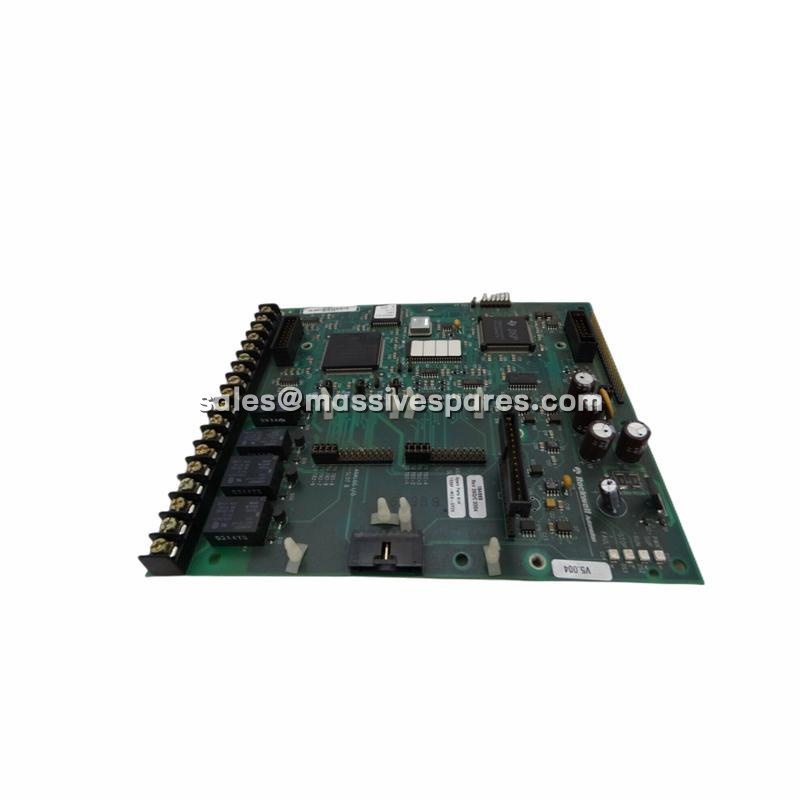

| Product Model | 1336F-MCB-SP2L |
| Catalog Number | 164989 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Category | Main Control PC Board |
| Compatible Drive Series | 1336 PLUS II |
| Frame Compatibility | A Frames |
| Voltage Rating | 230–460 V AC |
| Dimensions | 19.3 cm × 16.5 cm × 3 cm |
| Weight | 0.24 kg |
| Country of Origin | USA |
| UPC / GTIN | 00662453100623 |
Technical Principles and Innovative Values
- Innovation Point 1: Drive-specific control architecture. The 1336F-MCB-SP2L is engineered exclusively for the 1336 PLUS II platform, ensuring native compatibility with the drive’s IGBT power stage and sensorless vector control algorithms. This tight integration eliminates the configuration overhead typical of generic control boards .
- Innovation Point 2: Integrated surge protection circuitry. The 1336 PLUS II drives equipped with the 1336F-MCB-SP2L include MOV (Metal Oxide Varistor) surge suppression devices that provide phase-to-phase and phase-to-ground protection designed to meet IEEE 587 standards . This built-in protection reduces the need for external surge suppression and enhances drive reliability in electrically noisy environments.
- Innovation Point 3: Balanced distribution system compatibility. The 1336F-MCB-SP2L is designed to operate on three-phase supply systems with symmetrical line voltages, with isolation transformers recommended where phase-to-ground voltages exceed 125% of nominal . This design consideration ensures stable operation across diverse industrial power distribution configurations.
