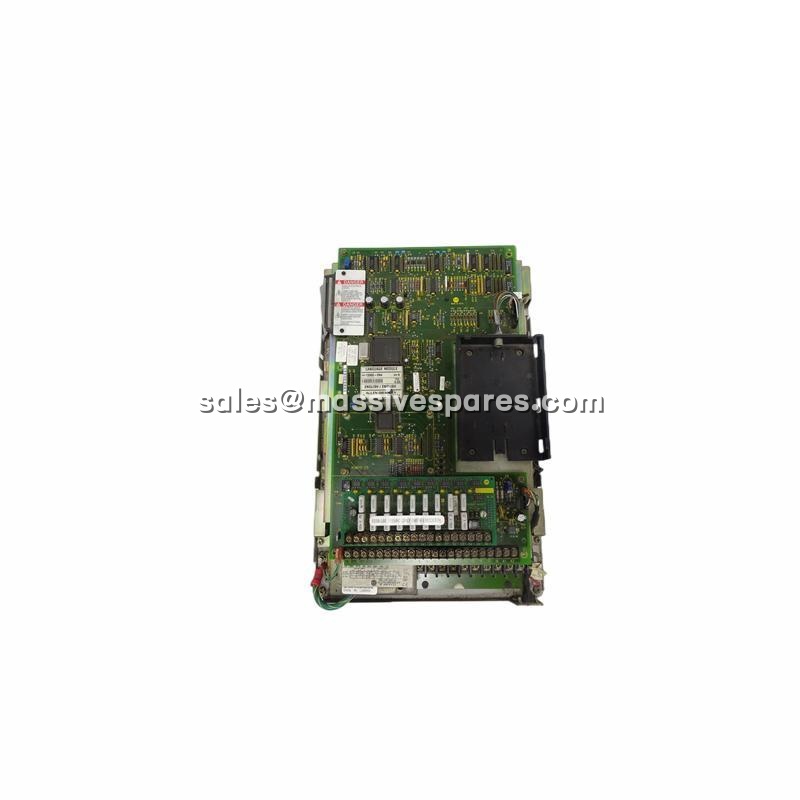

Allen-Bradley 1336S-B010-AN-EN4 10 HP AC Drive for 380-480V Applications

Application Scenarios

In a food processing facility, a conveyor system responsible for moving packaged goods between processing stages is driven by a 10 HP motor. Precise speed control is essential—too fast, and products jam at transfer points; too slow, and throughput drops. The 1336S-B010-AN-EN4 is mounted inside the plant‘s motor control center cabinet, receiving 480 VAC three-phase power and delivering variable frequency output to the conveyor motor. Operators adjust speed via the drive’s interface, while the drive‘s programmable acceleration and deceleration ramps prevent product tipping during start-stop cycles.

For maintenance engineers managing aging infrastructure, the 1336S-B010-AN-EN4 represents a critical spare component. The 1336 PLUS series has been discontinued, meaning facilities with existing installations must source replacements through aftermarket channels to maintain production continuity. When a drive fails, the 1336S-B010-AN-EN4 allows a targeted replacement rather than requiring a complete system redesign. Its open enclosure design assumes the drive will be housed within a protected cabinet, which is standard practice in most industrial motor control installations where drives are kept away from dust, moisture, and direct operator contact.

In a municipal water treatment plant, the 1336S-B010-AN-EN4 controls a raw water intake pump, adjusting flow based on demand signals from the plant’s SCADA system. The drive‘s ability to maintain precise speed control across varying load conditions helps match pump output to actual demand, reducing energy waste compared to constant-speed operation.
