Description

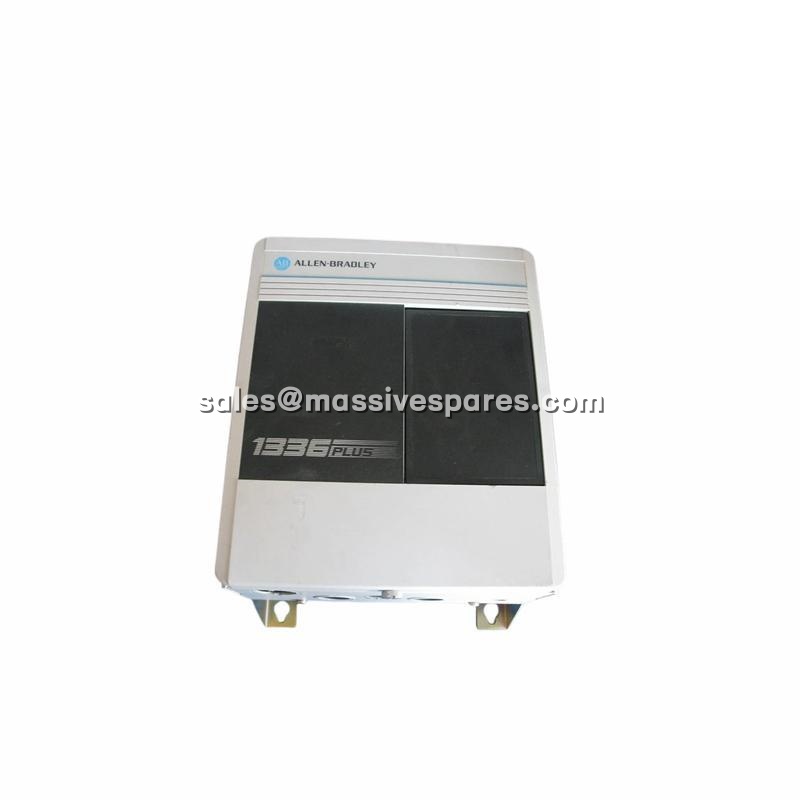

The 1336S-BRF10-AA-EN-HAP-L6 is a compact, high-performance adjustable frequency AC drive manufactured by Allen-Bradley (Rockwell Automation). Part of the 1336 PLUS series, this 1 HP (0.75 kW), 460V three-phase drive is engineered to deliver precise variable-speed control for AC induction motors in industrial applications ranging from fans, pumps, and conveyors to material handling and process equipment.
What distinguishes the 1336S-BRF10-AA-EN-HAP-L6 within the broader 1336 family is its combination of sensorless vector (SVC) and Volts/Hertz (V/Hz) control modes, packaged in a NEMA Type 1 (IP20) enclosure with a human interface module (HIM), English language firmware, and the HAP programmer/control option. Its compact book-style form factor—just 9.25 in × 5.51 in × 7.60 in—makes it ideal for panel installations where space is at a premium, while delivering the reliability and flexibility expected from the Allen-Bradley 1336 platform.
Application Scenarios
Imagine a small manufacturing facility upgrading an aging 1 HP exhaust fan that has run at full speed for 20 years, consuming maximum energy regardless of actual ventilation demand. The plant wants to reduce energy costs and add variable-speed control but has limited panel space and a maintenance team trained on Allen-Bradley equipment. A full modern drive replacement would require new panel design, rewiring, and retraining.
By installing the 1336S-BRF10-AA-EN-HAP-L6, the facility gains a compact, panel-friendly 460V drive with built-in Volts/Hertz control—perfect for a simple fan application. The drive’s English-language HIM and HAP programmer make commissioning intuitive: set the minimum and maximum speed, configure acceleration and deceleration ramps, and the fan ramps smoothly to match actual demand. Energy consumption drops proportionally to the cube of the speed reduction—a 20% reduction in fan speed can yield nearly 50% energy savings. When process requirements change, the sensorless vector mode is available for applications needing higher starting torque. This is the practical value the 1336S-BRF10-AA-EN-HAP-L6 delivers: proven Allen-Bradley reliability in a space-efficient, easy-to-configure package.
Parameter

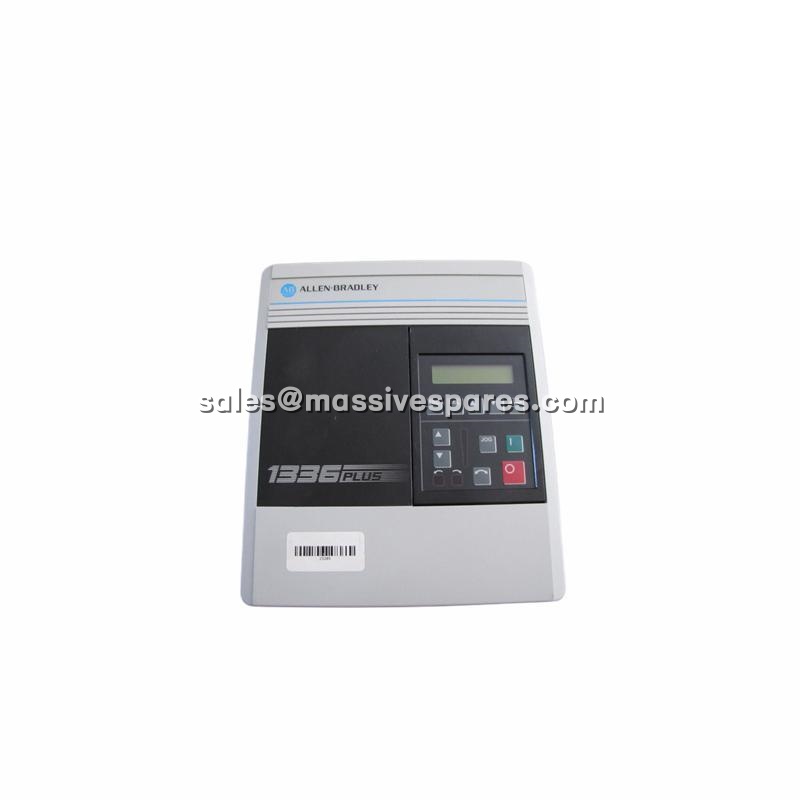

| Main Parameters | Value / Description |
|---|---|
| Product Model | 1336S-BRF10-AA-EN-HAP-L6 |
| Manufacturer | Allen-Bradley / Rockwell Automation (USA) |
| Product Family | 1336 PLUS (1336S) Adjustable Frequency AC Drive |
| Horsepower Rating | 1 HP (0.75 kW) |
| Input Voltage | 460V AC, 3-Phase, 50/60 Hz |
| Input Current | 3.8 A (480V 3-Phase) |
| Output Current | 3.0 A (480V 3-Phase) |
| Output Frequency Range | 0–400 Hz |
| Control Modes | Volts/Hertz (V/Hz), Sensorless Vector Control (SVC) |
| Enclosure Rating | NEMA Type 1 / IP20 (General Purpose, Indoor) |
| Mounting Orientation | Book-style / side-by-side mounting; vertical (side-by-side) orientation supported |
| Human Interface | HIM (Human Interface Module) — keypad and display for local operation |
| Language / Programmer | EN = English; HAP = HAP Programmer/Control Option |
| Dynamic Braking | Available (DB option supported on BRF frames) |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Altitude Rating | Up to 1000 m (3300 ft) without derating |
| Humidity | 5–95% RH, non-condensing |
| EMC Filter | Optional (–E suffix models); available for conducted/radiated emission mitigation |
| Communication | SCANport/DPI (Device Port Interface) for optional communication modules (DeviceNet, ControlNet, DH+) |
| Protection Features | Overcurrent, overvoltage, undervoltage, motor overload, ground fault, short-circuit |
| Start/Stop Control | 2-Wire / 3-Wire selectable |
| Accel/Decel Ramps | Programmable 0–3000 seconds |
| Physical Dimensions | 9.25 in (H) × 5.51 in (W) × 7.60 in (D) — 235 mm × 140 mm × 193 mm |
| Weight | 7.7 lb (3.5 kg) |
| Product Lifecycle Status | Discontinued / Obsolete (available as surplus, refurbished, or repaired) |
