Product Overview

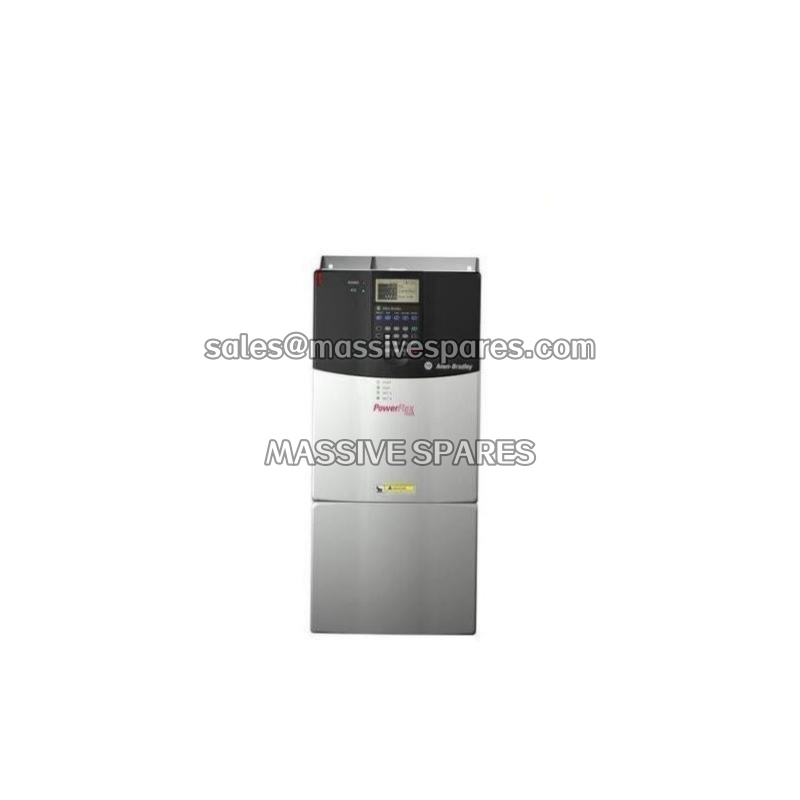

The Allen-Bradley 20BD065A0AYNAND0 is a PowerFlex 700 adjustable-frequency AC drive manufactured by Rockwell Automation. It converts fixed-frequency, three-phase 480 VAC power into a controllable voltage and frequency for operating three-phase induction motors at variable speed and torque. With a continuous output current of 65 A, the 20BD065A0AYNAND0 is rated for 50 HP in normal-duty applications and 40 HP in heavy-duty applications. This makes it suitable for fans, pumps, compressors, conveyors, extruders, mixers, material-handling systems, and other rotating equipment where energy efficiency, process control, and mechanical stress reduction are priorities.
Housed in a Frame 3, IP20/NEMA Type 1 enclosure, the Allen-Bradley 20BD065A0AYNAND0 uses sine-coded PWM and supports V/Hz, sensorless vector control, and optional enhanced vector-control configurations. The installed vector-control cassette provides 115 VAC digital and analog I/O, allowing the drive to receive start/stop commands, speed references, and interlock signals while returning status, fault, and feedback information. Sensorless vector control delivers improved speed and torque regulation without an encoder, reducing wiring, cost, and failure points.
This specific catalog configuration includes a factory-installed brake IGBT, although it does not include an internal braking resistor. It also includes a second-environment EMC filter and common-mode choke to support compliance with the CE EMC Directive, and its printed-circuit boards are conformally coated for improved resistance to moisture, corrosive atmospheres, and conductive contamination. The drive has no Human Interface Module; a blank plate occupies the HIM position. Rockwell Automation has discontinued the PowerFlex 700 Frame 7–10 family, including the 20BD065A0AYNAND0, and recommends the PowerFlex 755 as an engineering-replacement platform. Nevertheless, verified spares remain essential for supporting installed PowerFlex 700 systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 20BD065A0AYNAND0 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | Adjustable-frequency AC drive / VFD |
| Series | PowerFlex 700 |
| Lifecycle Status | Discontinued; engineering replacement |
| Input Voltage | 480 VAC, 3-phase |
| Input Operating Range | 380–480 V drive rating; 460–528 V full-power range |
| Input Frequency | 50/60 Hz |
| Continuous Output Current | 65 A @ 650 VDC bus |
| One-Minute Overload Current | 78 A |
| Three-Second Overload Current | 104 A |
| Normal-Duty Rating | 50 HP |
| Heavy-Duty Rating | 40 HP |
| Output Voltage | 0–460 VAC at 480 VAC input |
| Maximum Output Frequency | 400 Hz |
| PWM Carrier Frequency | 2, 4, 8, and 10 kHz; drive rated at 4 kHz |
| Control Methods | V/Hz and sensorless vector control |
| I/O Configuration | Vector control with 115 VAC I/O |
| Brake IGBT | Installed |
| Internal Brake Resistor | None |
| EMC Filtering | Second-environment filter and common-mode choke |
| Human Interface Module | None; supplied with blank plate |
| Communication Module | None installed |
| Feedback Option | None |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Frame Size | Frame 3 |
| Efficiency | 97.5% at rated current and nominal voltage |
| Nominal DC Bus Voltage | 648 VDC @ 480 VAC input |
| AC Input Undervoltage Trip | 280 VAC |
| AC Input Overvoltage Trip | 570 VAC |
| DC Bus Overvoltage Trip | 810 VDC |
| DC Bus Undervoltage Shutoff | 305 VDC |
| Protection Features | Motor overload, overcurrent, undervoltage, overvoltage, ground fault, bus regulation |
| Acceleration/Deceleration | Two independently programmable sets, 0–3600 s in 0.1 s increments |
| Operating Temperature | 0–50 °C at altitudes up to 1000 m, subject to derating |
| Relative Humidity | 5%–95%, non-condensing |
| Conformal Coating | Yes |
