roduct Overview

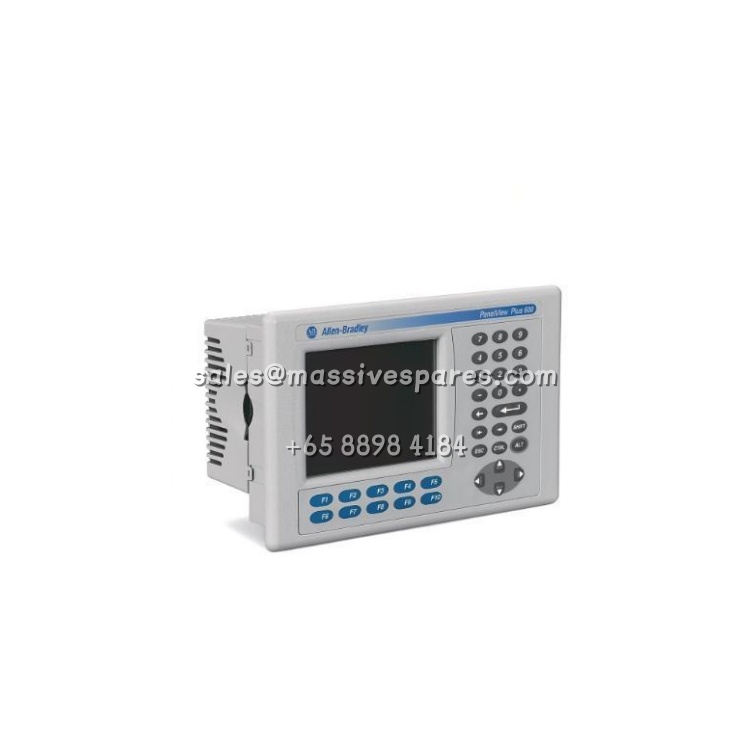

The Allen-Bradley 2711P-B6C20D8 is a 5.7-inch keypad/touch PanelView Plus 6 600 operator interface terminal from Rockwell Automation, engineered to combine visualization, control, and communication into a single integrated unit for machine-level applications. As part of the PanelView Plus 6 family, the 2711P-B6C20D8 merges the display, logic, communication, and power supply into one base unit, eliminating the modular architecture used by larger PanelView Plus terminals and delivering a cost-effective, space-saving solution for OEM machinery, skid-mounted equipment, and plant-floor control panels where operator interaction with Allen-Bradley controllers is required.
At the heart of the 2711P-B6C20D8 is a 5.7-inch color active-matrix TFT display delivering 320 × 240 pixel resolution in 18-bit color with a luminance of 440 cd/m², ensuring clear visibility of graphics, alarm banners, and process data even in brightly lit production environments. Input flexibility is provided through a combination of a stainless-steel membrane keypad with numeric, navigation, and function keys, plus a 4-wire analog resistive touch screen rated for one million actuations. Powered by Windows CE 6.0 and running FactoryTalk View Machine Edition Station runtime, the Allen-Bradley 2711P-B6C20D8 delivers premier integration with the Rockwell Integrated Architecture platform, connecting natively over Ethernet and RS-232 to ControlLogix, CompactLogix, SLC 500, and MicroLogix controllers.
With 256 MB of RAM, 512 MB of nonvolatile memory, a hot-swappable SD card slot for application transfer and firmware upgrades, and two USB ports (one host, one device) for peripheral connectivity and programming, the 2711P-B6C20D8 provides the processing headroom and expandability demanded by modern machine-level HMI applications. NEMA/UL Type 12, 13, and 4X indoor enclosure ratings with IEC IP66 protection, Class I Division 2 hazardous-location certification, and an operating temperature range of 0 to 55 °C allow deployment in the most demanding industrial environments. Whether installed on new machinery or as a strategic component in a PanelView Standard migration program, the Allen-Bradley 2711P-B6C20D8 remains a cornerstone operator interface for Rockwell-based control architectures worldwide.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 2711P-B6C20D8 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Type | PanelView Plus 6 600 Keypad/Touch Operator Interface Terminal |
| Display Type | Color active-matrix TFT |
| Display Size | 5.7 in. |
| Display Area (W × H) | 115 × 86 mm (4.5 × 3.4 in.) |
| Resolution | 320 × 240 pixels, 18-bit color graphics |
| Brightness | 440 cd/m² (Nits) |
| Backlight | White LED, not replaceable; 25,000 hours minimum at 25 °C |
| Operator Input | Keypad and touch (stainless-steel membrane keypad + 4-wire analog resistive touch) |
| Touch Screen Actuation | 1 million presses; operating force 10–110 g |
| Communication Ports | Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, 1 USB host, 1 USB device |
| Memory | 256 MB RAM, 512 MB nonvolatile (approx. 73 MB free user memory) |
| External Storage | Hot-swappable SD card slot (1784-SDx); USB flash drive via USB host port |
| Operating System | Windows CE 6.0 (without extended features/file viewers) |
| Runtime Software | FactoryTalk View Machine Edition Station, version 6.10 or later (preloaded) |
| Input Voltage, DC | 18–30V DC (24V DC nominal); Class 2 / SELV / PELV supply required |
| Power Consumption, DC | 15 W maximum (0.6 A at 24V DC); 9 W typical (0.375 A at 24V DC) |
| Recommended Power Supply | 1606-XLE120E (SELV/PELV, 100–240V AC input) |
| Dimensions (H × W × D) | 167 × 266 × 68 mm (6.58 × 10.47 × 2.68 in.); 98 mm depth with AC module |
| Panel Cutout (H × W) | 142 × 241 mm (5.61 × 9.50 in.) |
| Enclosure Rating | NEMA/UL Type 12, 13, 4X (indoor use only); IEC IP66 |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
| Storage Temperature | –25 to +70 °C (–13 to +158 °F) |
| Relative Humidity | 5–95% noncondensing |
| Vibration | 10–57 Hz, 0.012 mm peak-to-peak; 57–500 Hz, 2 g peak acceleration |
| Shock (Operating / Nonoperating) | 15 g / 30 g at 11 ms |
| Certifications | cULus Listed (Class I Div 2 Groups A,B,C,D; Class II Div 2 Groups F,G; Class III), CE, KCC, RoHS, C-Tick |
| Country of Origin | United States |
