AMSAMOTION 3DB30 USB-PPI Multi-Master Programming Cable for Siemens S7-200 PLC

Product Overview

The AMSAMOTION 3DB30​ is a professional-grade USB-PPI smart multi-master programming cable engineered as a fully functional, cost-effective alternative to the discontinued Siemens OEM cable 6ES7901-3DB30-0XA0. Designed specifically for the Siemens SIMATIC S7-200 family of programmable logic controllers, the AMSAMOTION 3DB30​ bridges the USB port of a modern engineering workstation with the RS485-based PPI (Point-to-Point Interface) communication port on S7-200 CPUs and EM277 PROFIBUS-DP slave modules. For maintenance engineers tasked with servicing legacy S7-200 installations — still ubiquitous in injection molding, packaging, textile, small water-treatment skids, and stand-alone machine tools — the AMSAMOTION 3DB30​ eliminates both the need to hunt down scarce, inflated-price original Siemens cables and the need to keep a museum-piece laptop with a physical RS232 COM port.

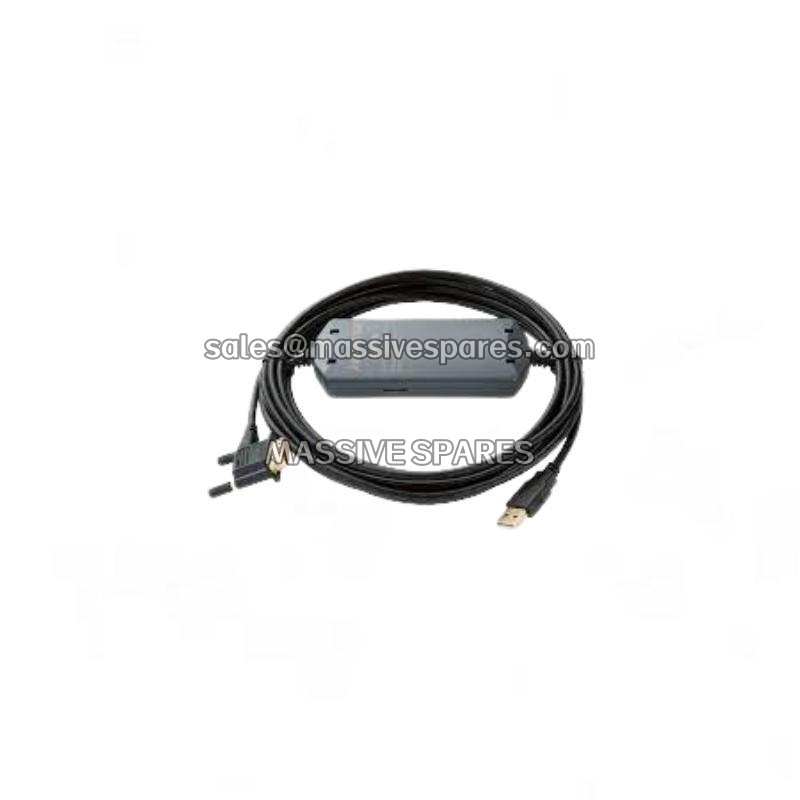

Physically, the AMSAMOTION 3DB30​ presents a gold-plated USB Type-A connector on the PC side (USB 1.1/2.0 compatible) and a DB9 male connector on the PLC side, wired to the S7-200 PPI pinout. Cable length is typically 3 m, 4.5 m, or 5 m​ depending on production batch, with the 5 m variant being the most commonly stocked. The cable draws operating power directly from the USB bus at 5 VDC, requiring no external power supply, and incorporates high-speed optocouplers with DC/DC isolated power conversion to achieve ≥2500 VDC​ signal-to-power double isolation. This galvanic barrier is not a marketing flourish: it protects both the engineering laptop’s USB controller and the S7-200 CPU’s communication port from ground-loop currents and transient voltage spikes — the notorious cause of “my port died after the VFD started” incidents in industrial cabinets shared with contactors, soft starters, and high-current switching devices.

The defining intelligence of the AMSAMOTION 3DB30​ lies in its firmware-level PPI token management. The S7-200 PPI network is a token-passing bus: only the device holding the token may transmit. Ordinary budget USB-PPI cables are passive slaves — they cannot seize the token, and therefore fail the moment a TD200 text display, a SMART 700 HMI, or another CPU’s NETR/NETW instruction is present on the network. The AMSAMOTION 3DB30​ replicates the original Siemens “smart multi-master” behavior: it actively manages the network token, allowing STEP 7-Micro/WIN and an HMI to coexist on the same PPI network without communication conflicts. Baud rates are auto-adaptive across 9.6 / 19.2 / 187.5 kbps​ — the latter being the S7-200 CPU’s native maximum, making program uploads, downloads, and online monitoring genuinely fast. Three status LEDs (USB Tx, USB Rx, PPI/RS485 activity) give the engineer immediate visual confirmation of link health, turning a ten-minute “is it the cable, the driver, or the PLC?” diagnosis into a ten-second one.
