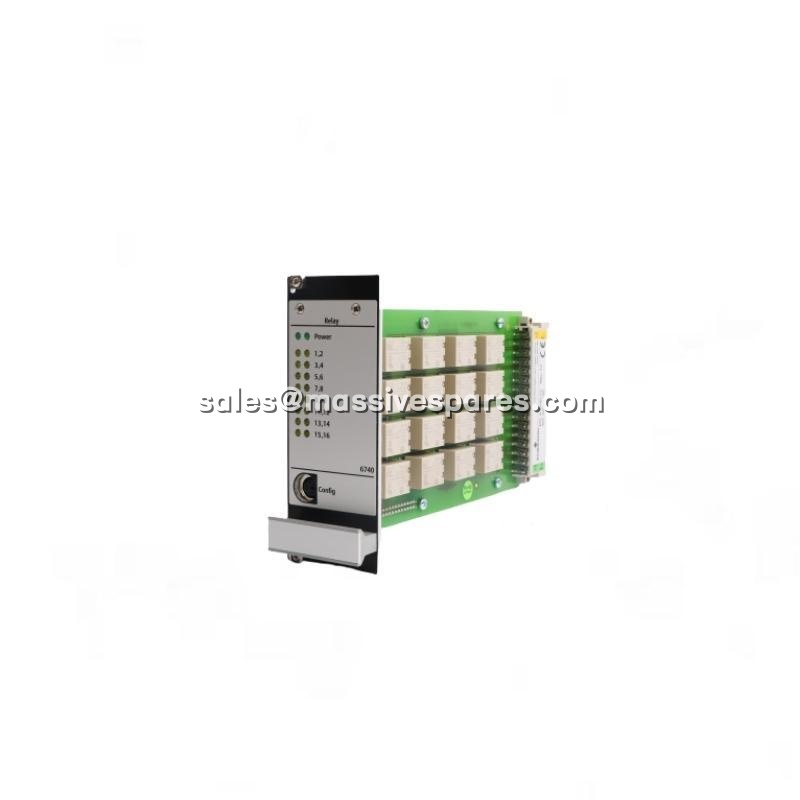

Emerson A6740-10 Output Relay Module – 16-Channel API 670 Machinery Protection

Application Scenarios

In a large combined-cycle power plant, steam turbine protection relied on a complex matrix of vibration, temperature, and speed signals feeding into the machinery protection system. The plant’s AMS 6500 system processed these inputs and needed a reliable mechanism to trigger emergency shutdown relays, alarm annunciators, and DCS interlock signals. The Emerson A6740-10 served as the output relay module, accepting clear, alert, and danger signals from the AMS 6500 system and executing configurable Boolean logic with time delays before actuating the appropriate relays . When a bearing vibration exceeded the danger threshold, the Emerson A6740-10 executed a 2-out-of-3 voting logic expression, applied a brief time delay to prevent nuisance trips, and energized the shutdown relay within milliseconds. The turbine tripped safely before damage could escalate, and the plant avoided what could have been a catastrophic rotor failure.

In an offshore gas compression platform, space within the control cabinet was at a premium. The maintenance team needed to add protection relay outputs for two new compressor trains without expanding the existing cabinet footprint. The compact 3U, 2-slot design of the Emerson A6740-10 allowed the module to fit into the existing IMR6500 rack alongside the other monitoring cards, consuming only 10TE of width while providing 16 independent relay outputs . The hot-swappable capability meant that if a relay module required replacement during operation, technicians could exchange the unit without shutting down the protection system—a critical advantage on a platform where unplanned downtime costs thousands of dollars per hour .
