Description

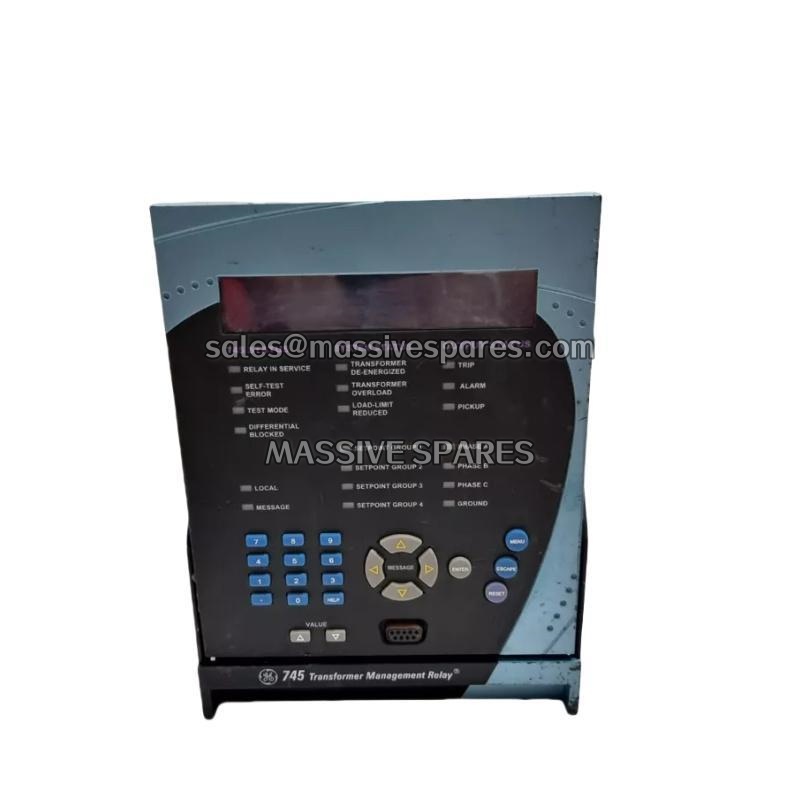

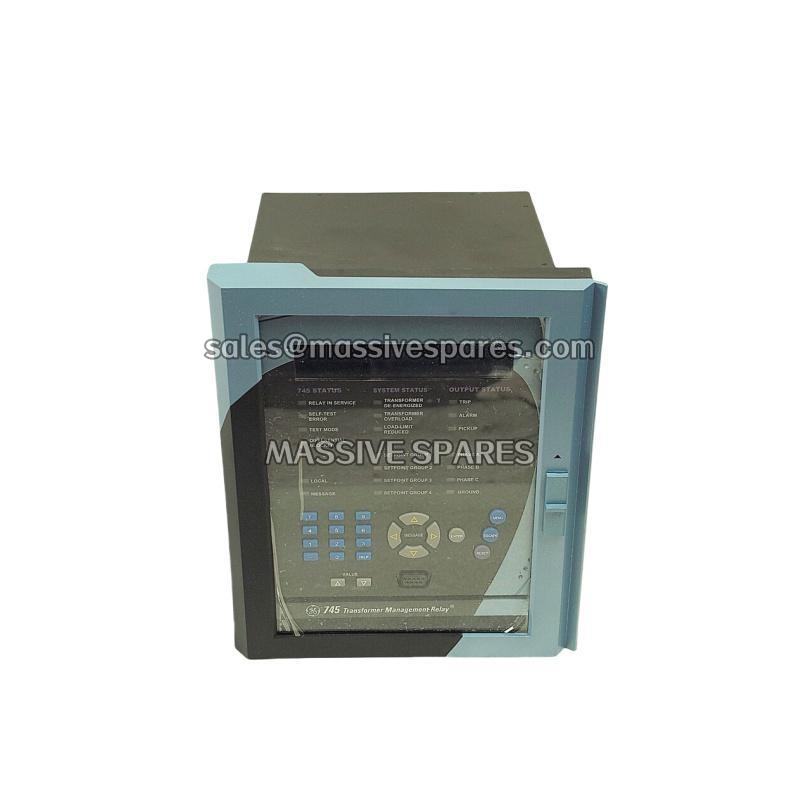

The 745-W2-P5-G5-HI-R-E-H is a GE Multilin 745 series transformer management relay, a microprocessor-based protection and control device designed specifically for two-winding power transformers, autotransformers, and reactors. As a comprehensive digital protection IED (Intelligent Electronic Device), the 745-W2-P5-G5-HI-R-E-H integrates percentage differential protection, restricted ground fault detection, thermal monitoring, harmonic analysis, and extensive metering functions within a single draw-out assembly, making it a cornerstone solution for transformer asset protection across utility substations and industrial power systems.
Application Scenarios
In a large industrial facility with a 50 MVA, 138 kV/13.8 kV two-winding transformer supplying critical process loads, nuisance trips during transformer energization had become a recurring problem. The existing protection scheme, relying on traditional differential relays, could not adequately distinguish between magnetizing inrush current and genuine internal faults, leading to unnecessary outages that disrupted production. After installing the 745-W2-P5-G5-HI-R-E-H, plant engineers gained access to the relay’s advanced second-harmonic and fifth-harmonic blocking algorithms, which effectively discriminate between inrush phenomena and actual fault conditions. The relay’s built-in oscillography captured 128 cycles of waveform data during each energization, enabling engineers to verify protection coordination and adjust settings with confidence. Within the first six months of deployment, nuisance trips during transformer switching were eliminated entirely, recovering an estimated 40 hours of production time and avoiding approximately $200,000 in lost output. The 745-W2-P5-G5-HI-R-E-H‘s draw-out construction also proved invaluable during a scheduled maintenance window, allowing the relay chassis to be removed and tested while the case remained wired, reducing maintenance downtime from a full shift to under two hours.
