Description

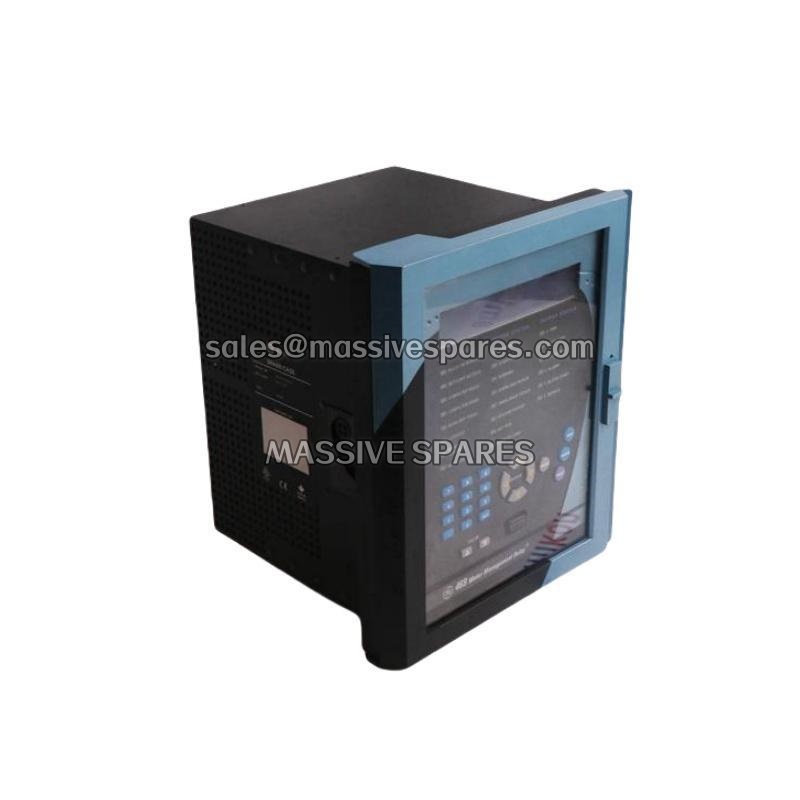

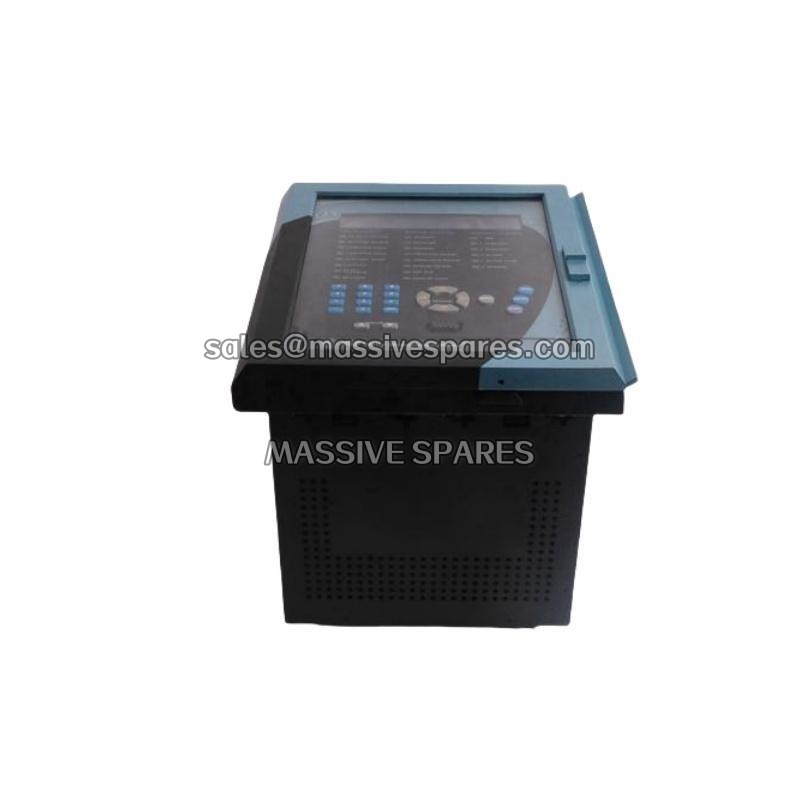

The GE Multilin 745-W3-P5-G5-HI-A-L-R-E-H is a high-speed, microprocessor-based transformer management relay manufactured by GE Multilin (now GE Vernova Grid Solutions), purpose-built to deliver primary and backup protection, revenue-grade metering, disturbance recording, and transformer asset monitoring in a single drawout chassis. As a flagship member of the 745 Transformer Protection System family, this fully loaded configuration protects three-winding power transformers, autotransformers, and shunt reactors with dual-slope percentage differential protection, adaptive harmonic restraint, and a comprehensive suite of backup elements — effectively replacing an entire panel of electromechanical and static relays with one intelligent electronic device.
Application Scenarios
Imagine a coastal industrial substation where a 50 MVA three-winding transformer feeds critical process loads across multiple voltage levels. The salt-laden air and elevated humidity have been quietly corroding standard control electronics for years, and the last thing the plant manager wants is a protection relay failing during a monsoon. The GE Multilin 745-W3-P5-G5-HI-A-L-R-E-H is installed as a drop-in replacement, its “H” suffix conformal coating forming a protective barrier against moisture and chemical contaminants. When a turn-to-turn fault develops in the tertiary winding, the relay’s 64-samples-per-cycle digital processing and adaptive second/fifth-harmonic restraint distinguish the genuine internal fault from harmless inrush current, issuing a trip in milliseconds. Meanwhile, the “L” option has been tracking winding hotspot temperature and insulation aging for months, giving the asset team a clear read on remaining useful life — information that previously required an external temperature transmitter and a separate monitoring system.
