Description:

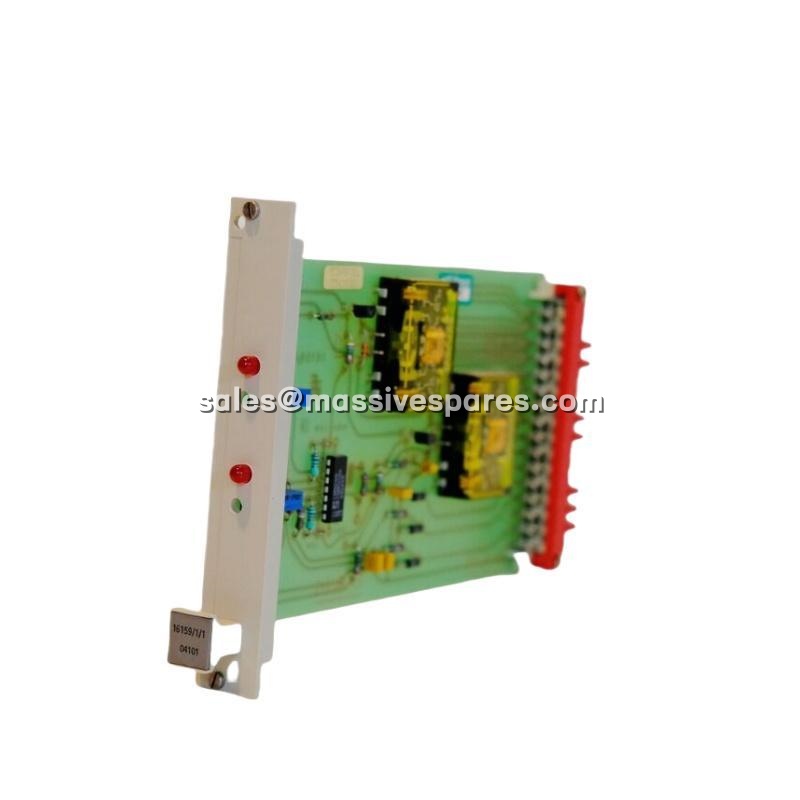

The 16159/1/1 is a digital input module from Honeywell’s FSC (Fail Safe Controller) platform, used to acquire discrete field states — switch contacts, relay outputs, proximity sensors, valve position feedback, emergency stop buttons — and present them to the FSC logic solver for monitoring, alarming, interlocking and safety functions. Available product references consistently identify it as a 16-channel isolated digital input module, and one industrial automation supplier additionally lists 04101 as an alternate reference for the part.
What the 16159/1/1 is not, however, matters just as much as what it is. It is not a standalone fieldbus device: it has no independent communication stack and no field-configurable protocol of its own, so any description positioning it as a Modbus RTU or ASCII node with a 9600 bps link should be treated as a marketplace error rather than a specification. Its real role is as one slot in a larger, engineered FSC architecture.
A transparency note for buyers: published third-party data for the 16159/1/1 conflicts materially. Input voltage is variously given as 24 VDC nominal or “24 VDC or 240 VAC”; dimensions appear as 210 × 32 × 120 mm, 90 × 90 × 75 mm and roughly 20 × 127 × 191 mm; channel counts are reported as 8 or 16 depending on revision. Treat 16 isolated channels and 24 VDC nominal as the working assumption, and confirm the rest against the documentation for the exact hardware revision installed at your site before you order or energise anything.
Application Scenarios:
Consider the input layer of an emergency shutdown system. The logic solver can only act on what it is told, and what it is told arrives as a scattered collection of hard contacts spread across a plant: mushroom-head stop buttons in the field, pressure switch contacts on a separator, level switches on a knockout drum, valve position feedback from a shutdown valve, permissive contacts from a lube-oil system, a fire-and-gas panel relay. Each of these sits at the end of a long cable run through an electrically hostile environment, and each one has to be read correctly every single scan — because a contact that is misread as “healthy” when it is actually open is the failure mode that defeats the whole safety system.
This is the working environment of the 16159/1/1. Its value is not raw speed or channel density; it is that each input channel is electrically isolated from the FSC backplane, so the noise, ground-potential differences and transients arriving on hundreds of metres of field cable stop at the module instead of propagating into the controller. In a plant where a VFD-induced surge on one cable run would otherwise take out a rack of shared-reference inputs, that isolation is what keeps a single bad circuit from becoming a system-wide problem.
The second scenario is the maintenance reality. When an operator reports that a permissive never clears, the question is always “field device, wiring, or card?” The 16159/1/1 answers that in seconds rather than hours: per-channel LED indication shows whether the module sees the contact at all, which immediately splits the fault domain in half. If the LED tracks the field device, the problem is upstream in the logic or the application; if it does not, the problem is in the contact, the termination or the cable. That single diagnostic split is worth more to a maintenance crew during a short window than any amount of documentation.
Parameter:
| Main Parameters | Value/Description |
|---|---|
| Product Model | 16159/1/1 |
| Manufacturer | Honeywell — FSC (Fail Safe Controller) platform |
| Product Category | Digital input module, discrete signal acquisition |
| Input Channels | 16 isolated digital inputs (16-channel configuration is the commonly reported version; 8-channel variants are cited for some revisions — verify) |
| Input Signal Type | Discrete on/off; potential-free contacts, proximity switches and voltage-sourced signals depending on revision |
| Nominal Input Voltage | 24 VDC nominal — 18–32 VDC operating range cited by some references; “24 VDC or 240 VAC” appears in some listings and must be confirmed |
| Input Current | Approximately 20 mA per channel (as published) |
| Input Impedance | Approximately 100 kΩ (as published) |
| Isolation | Channel-to-system galvanic isolation — values cited range from 1500 Vrms to 3000 VDC; confirm against revision documentation |
| Logic Recognition | Distinguishes energised (logic 1) and de-energised (logic 0) field states |
| Fail-Safe Behaviour | On module fault or loss of power, inputs default to logic 0 (safe state) |
| Status Indication | Per-channel LED for input state, plus power/fault indication |
| Scan / Response | Fast discrete acquisition; response times cited from sub-millisecond to ≤10 ms depending on source and system configuration |
| Mounting | Honeywell FSC rack slot; modular plug-in card |
| Environmental Rating | 0 °C to +60 °C operating (some sources −20 °C), −40 °C to +85 °C storage; 5–95% RH non-condensing |
| Physical Data | Conflicting published figures — approximately 0.11–0.2 kg; verify dimensions for the installed revision |
| Alternate Reference | 04101 listed by one supplier as an alternate part number |
