Application Scenarios
In a large-scale water treatment facility, hundreds of analog sensors monitor flow rates, tank levels, and chemical concentrations across multiple treatment stages. Each measurement must be captured with precision, and control valves must respond accurately to maintain process stability. A facility upgrading its legacy Moore APACS control system faced a critical challenge: the existing SAM modules had accumulated signal drift over years of continuous operation, causing dosing pumps to overcorrect and chemical usage to creep upward. The plant replaced its aging I/O with MOORE 16169-1-07 modules, restoring measurement accuracy across analog input channels and ensuring that valve positioning commands were delivered without distortion. Operators reported tighter process control within weeks, with chemical consumption returning to target levels. For facilities running Moore APACS infrastructure, the 16169-1-07 serves as a direct-fit replacement that preserves wiring, rack space, and control logic without requiring a full system migration.
Parameter
| Parameter | Value/Description |
|---|---|

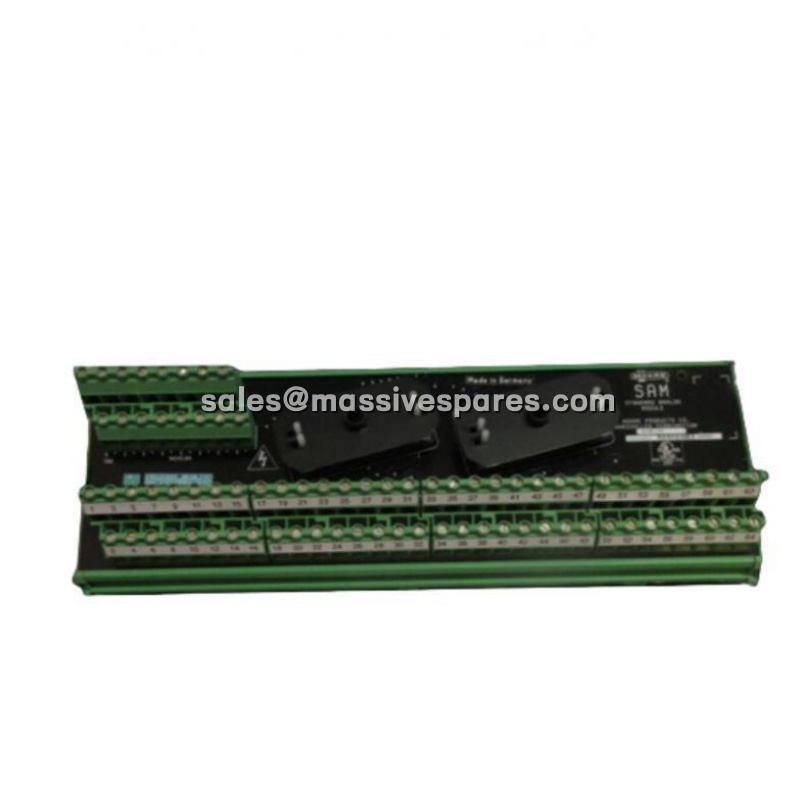

| Product Model | 16169-1-07 |
| Manufacturer | Moore |
| Product Category | Standard Analog Module (SAM) |
| Signal Capacity | Configurable analog I/O (typical SAM architecture supports 32 points) |
| Input Range | 4-20mA / 0-10V (typical) |
| Accuracy | 0.1% ±1 digit (typical) |
| Operating Temperature | -20°C to +85°C (typical) |
| Power Consumption | Approximately 1W (typical) |
| Connection Type | DIN Rail / Rack-mount with MTA interface |
| Dimensions (WxHxD) | 100mm x 100mm x 35mm (typical) |
| Weight | Approximately 0.2kg (typical) |
Technical Principles and Innovative Values
- Innovation Point 1 – Configurable point architecture: The 16169-1-07 belongs to a SAM class where individual points can be configured as analog or discrete inputs and outputs, providing exceptional flexibility in I/O allocation . This means a single module type can serve mixed signal requirements within a rack, reducing spare part variety and simplifying inventory management for maintenance teams.
- Innovation Point 2 – FlexConnect migration compatibility: For facilities considering modernization, the 16169-1-07’s termination infrastructure supports FlexConnect solutions that provide direct connection from Moore field terminations to DeltaV I/O cards . This enables a phased migration path: existing 16169-1-07 wiring and terminations can be retained while control hardware is upgraded, minimizing rewiring labor and production downtime.
- Innovation Point 3 – Termination assembly ecosystem: The 16169-1-07 works with dedicated SAM Marshalled Termination Assemblies (MTAs) and termination strips . This structured wiring approach separates field wiring from module replacement, so a 16169-1-07 can be swapped without disturbing field connections—a critical time-saving feature during unplanned maintenance.
- Innovation Point 4 – Proven APACS infrastructure: As a component of the widely deployed APACS DCS platform, the 16169-1-07 benefits from decades of field-proven reliability and a mature support ecosystem. Third-party suppliers maintain inventory and test capabilities for these modules, providing 2-year warranties on tested units .
