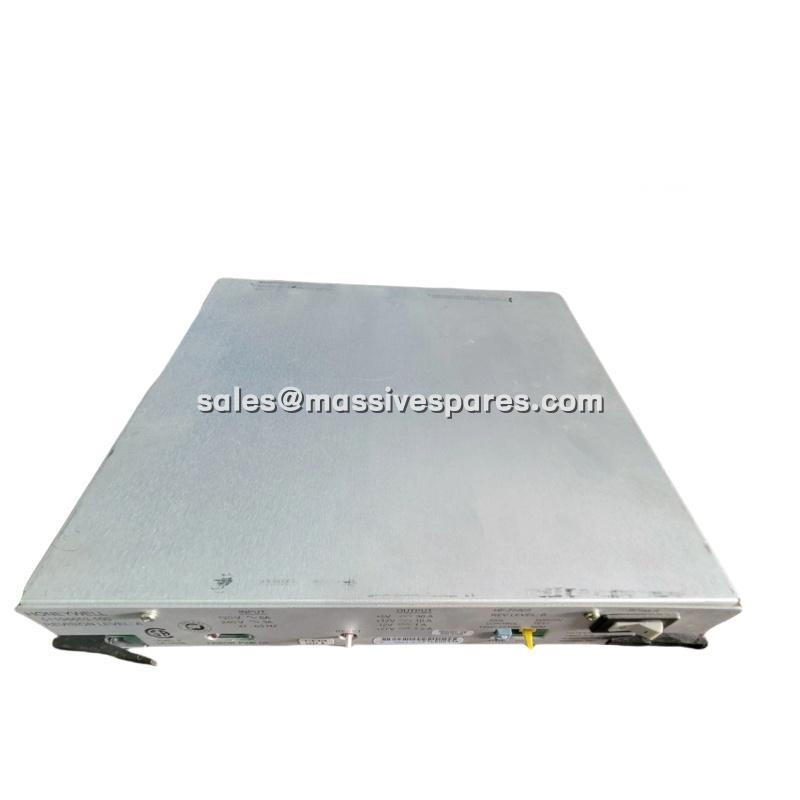

Honeywell 51196653-100 Five-Slot File Power Supply – TDC 3000 DCS Chassis Power Module

Application Scenarios

A European chemical processing facility operates a TDC 3000 distributed control system that has been in continuous service for over two decades. The plant’s control engineers noticed intermittent communication faults on several LCN nodes, with diagnostic logs pointing to voltage ripple on the backplane bus. The root cause was traced to aging power supplies in the five-slot file chassis, where degraded electrolytic capacitors were no longer maintaining stable DC rails under varying load conditions.

The maintenance team sourced Honeywell 51196653-100 power supplies as direct replacements. The module’s auto-ranging input (102–264 V AC) accommodated the plant’s 230 V AC supply without reconfiguration, and the built-in power factor correction reduced input current distortion that had been stressing upstream breakers .

After installation, the Honeywell 51196653-100 restored clean multi-rail output to the affected file chassis. Communication faults on the LCN nodes disappeared, and the DCS returned to stable operation without requiring controller replacement or firmware changes. The plant’s instrumentation supervisor noted that the module’s temperature-controlled fan ran quieter than the legacy cooling system, reducing noise in the control room .
