Product Overview

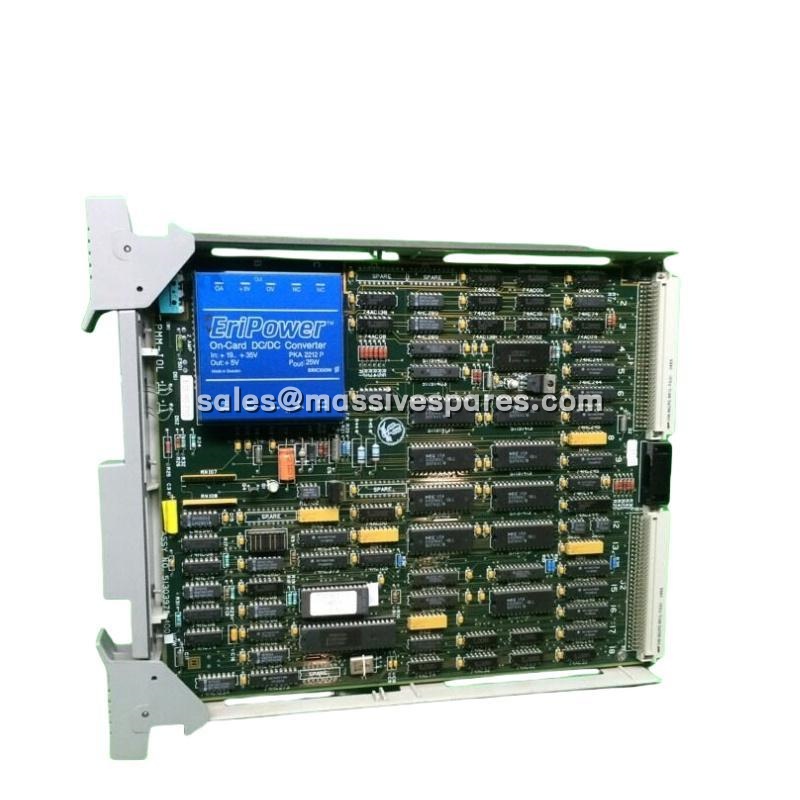

The Honeywell 51303979-400 is an I/O Link Interface Module — the dedicated communication gateway that connects a Honeywell Process Manager controller to its distributed I/O subsystem within a TDC 3000 / TotalPlant Solution (TPS) architecture. The current -400 hardware revision is also supplied in the certified-refurbishment program as Honeywell 51303979-400-RP (PMM I/O Link Interface Card), where the -RP suffix denotes Replacement Part — a unit reconditioned and certified to original factory specifications for continued service in legacy TDC 3000 systems. Alongside the related -100, -300, -500, and -550 members of the 51303979 family, the Honeywell 51303979-400 forms the serial backplane and cable interface tier of the controller I/O section, linking the main processor card rack to the remote I/O file.
The Honeywell 51303979-400 is not a field-signal-termination device and does not directly condition 4–20 mA or RTD inputs — that work belongs to dedicated I/O Processors (IOPs). Its role is one level up: it handles the high-speed serialization and deserialization of I/O data frames across the I/O Link, polls the I/O modules deterministically, and maintains the timing baseline that keeps control calculations and field values synchronized within fixed scan cycles. In redundant configurations, the module supports a fully redundant I/O Link, so a single cable break, connector failure, or link fault cannot interrupt process control. Drawing its power from the rack backplane and built on low-power CMOS, the Honeywell 51303979-400 is engineered for continuous-duty operation behind the controller. For plants maintaining TDC 3000, HPM, APM, and EHPM assets, this module is the invisible but indispensable bridge that makes hundreds of field instrument points visible to the control processor — and keeping a certified spare on hand is often the difference between a planned 20-minute swap and an unplanned controller-file outage.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 51303979-400 |
| Alternate Suffix | 51303979-400-RP (Replacement Part / certified refurbishment) |
| Manufacturer | Honeywell Process Solutions |
| Product Type | Process Manager (PMM) I/O Link Interface Card / Module |
| Series | TDC 3000 / TotalPlant Solution (TPS) |
| Compatible Controllers | HPM (High-Performance Process Manager), APM (Advanced Process Manager), EHPM |
| Primary Function | Interface between Process Manager and distributed I/O subsystem |
| Communication | Proprietary I/O Link serial bus (redundant-capable) |
| Data Transfer Rate | Standard I/O Link rate, typically 1 MBaud |
| Redundancy | Fully redundant I/O Link (dual serial tracking paths) |
| Max. I/O Processors per Subsystem | Up to 40 |
| Power Supply | Via rack backplane (low-power CMOS) |
| Signal Cabling | Shielded twisted pair, terminated at both ends |
| Status Indicators | OK / Link status LEDs (module-dependent) |
| Operating Temperature | 0 … +60 °C (32 … 140 °F) |
| Storage Temperature | −40 … +85 °C |
| Humidity | 5 … 95 % RH, non-condensing |
| Mounting | Rack / card slot, backplane-mounted in controller file |
| Weight | Approx. 1.3 kg (card assembly) |
| Country of Origin | USA |
| Compliance | CE; industrial EMC & safety standards |
Note: Exact dimensions, connector type, backplane current, and LED assignment vary with the controller-file revision. The -400 is reported as backward-compatible with -100 / -300 installations; confirm the HPM/APM hardware compatibility matrix and firmware level before substitution.
Main Features and Advantages
Process Manager to I/O subsystem bridging
The central function of the Honeywell 51303979-400 is to act as the serialized communication gateway between the controller processor stack and the distributed I/O file. It translates the controller’s high-level commands into the precise timing and protocol required by the I/O Link, then returns field data frames to the processor within deterministic scan windows. This clean separation means the control processor focuses on control execution while the link hardware manages polling, arbitration, and frame delivery — a fundamental reason TDC 3000 systems sustain predictable loop timing even at high I/O density.
Fully redundant I/O Link for fault-tolerant operation
The Honeywell 51303979-400 supports a fully redundant I/O Link: one module on the primary link and one on the secondary, each tracking the serial state of the other. In a dual-path architecture, a cable break, connector failure, or transceiver fault on one link is automatically backed by the other, preserving continuous data flow to the IOPs. For critical processes — turbine and boiler control, reactor temperature arrays, compressor anti-surge — this is not an optional feature but the basis of the plant’s availability case.
Deterministic, low-latency data delivery
By routing serialized field-data packets across the backplane with high noise rejection, the Honeywell 51303979-400 maintains the fixed timing frame required by downstream regulation and sequencing calculations. Process variables, status flags, and system diagnostics travel as native hardware-tier data, minimizing latency relative to the master Process Manager control section. In practical terms, this prevents the “stale PV” and timing-drift conditions that degraded links typically introduce into tight control loops.
Scalable distributed I/O architecture
A standard Honeywell I/O Link driven by the Honeywell 51303979-400 supports up to 40 I/O processors per subsystem, allowing large processing units with hundreds of analog and discrete points to be organized across remote I/O racks rather than concentrated in a single cabinet. This reduces home-run cabling, localizes field-wiring terminations, and lets a plant expand I/O capacity without disturbing the controller processor.
