Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

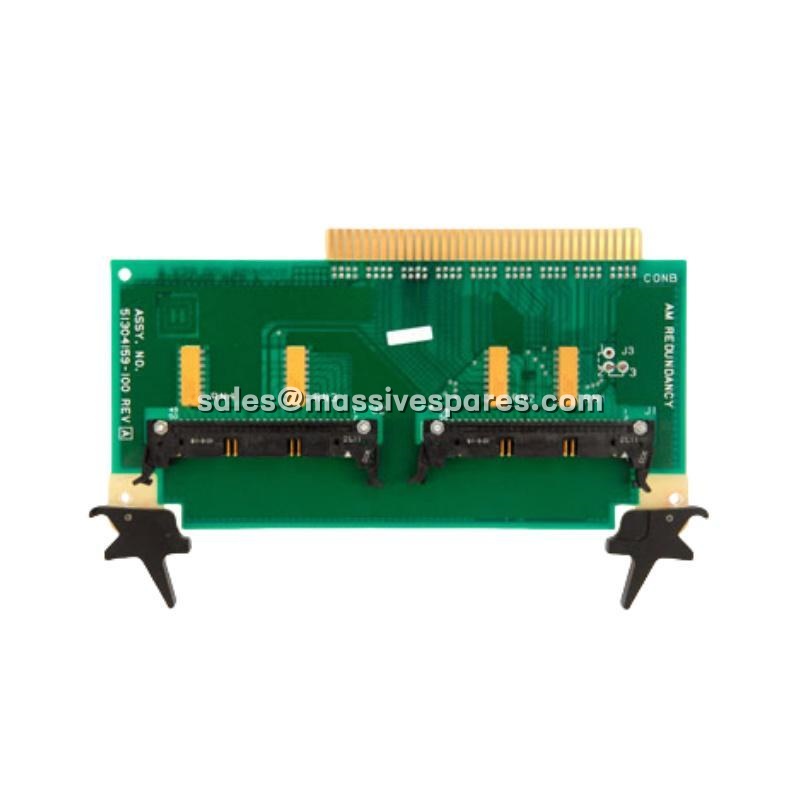

| Product Model | Honeywell 51304159-100 |
| Manufacturer | Honeywell |
| Product Type | Redundant AM I/O Module / Digital Output Module |
| System Compatibility | Experion PKS, TDC 3000, TPS |
| Number of Channels | 16 Digital Outputs |
| Output Voltage | 24 VDC nominal |
| Output Current per Channel | 0.5 A maximum |
| Redundancy Configuration | Hot-standby, IOTA-based |
| Isolation | Galvanic channel-to-channel and channel-to-bus |
| Power Source | DC-powered (system dependent) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | 22.3 × 14 × 2 cm |
| Weight | 0.45 kg |
| Country of Origin | USA |
| Certifications | CE, UL, CSA, TUV |
Main Features and Advantages
The Honeywell 51304159-100 distinguishes itself through a redundancy architecture that eliminates external hardware dependencies. Unlike conventional redundant I/O solutions that require external cabling, redundancy control devices, or dedicated switching hardware, the Honeywell 51304159-100 accomplishes fault-tolerant operation directly on the IOTA. This design simplifies system architecture, reduces cabinet footprint, and minimizes potential failure points—a significant advantage in facilities where every component added to the control loop represents an additional maintenance concern.
Hot-standby failover with bumpless transfer: In a redundant pair configuration, the standby Honeywell 51304159-100 maintains continuous synchronization with the primary module. When a hardware fault or power interruption is detected on the active unit, the standby module assumes control without interrupting the output state. This bumpless transition is critical for processes where even momentary loss of output signal could trigger actuator misoperation or safety system intervention.
Galvanic isolation and transient protection: The Honeywell 51304159-100 employs internal isolation circuitry that provides protection between individual output channels and the system bus. This prevents fault propagation from field wiring back to the DCS processor, protecting expensive controller hardware from electrical transients and common-mode interference. The isolation design also supports mixed-voltage field devices on the same module without cross-channel interference.
Comprehensive diagnostics and hot-swap capability: The Honeywell 51304159-100 reports module health and communication status through the rack backplane to the operator station, with front-panel indicators providing immediate visual confirmation of normal and fault conditions. In redundant configurations, a failed Honeywell 51304159-100 can be replaced during system operation without interrupting control, minimizing maintenance windows and supporting continuous production schedules.
