Application Scenarios
In a refinery’s atmospheric and vacuum distillation unit, dozens of smart transmitters are distributed across towers and heat exchangers, measuring temperature, pressure, and flow. These transmitters output digital signals via the HART protocol, but the control system needs to convert this data into a unified format for process monitoring and closed-loop control. When engineers install the HONEYWELL 51304516-200 in the TDC 3000 cabinet, the module can simultaneously connect up to 16 smart transmitters, with each channel independently configurable as single-ended or differential input, compatible with 4-20 mA current loops and Honeywell Digital Enhanced protocol . Operators in the central control room can view measurement values, device status, and diagnostic information from all transmitters in real time, without needing separate signal conversion equipment for each transmitter. In another chemical project, the 51304516-200 was used to connect multivariable transmitters, simultaneously acquiring differential pressure, static pressure, and temperature—three process variables—significantly reducing field wiring complexity and cabinet space requirements.
Parameter
| Parameter | Value/Description |
|---|---|

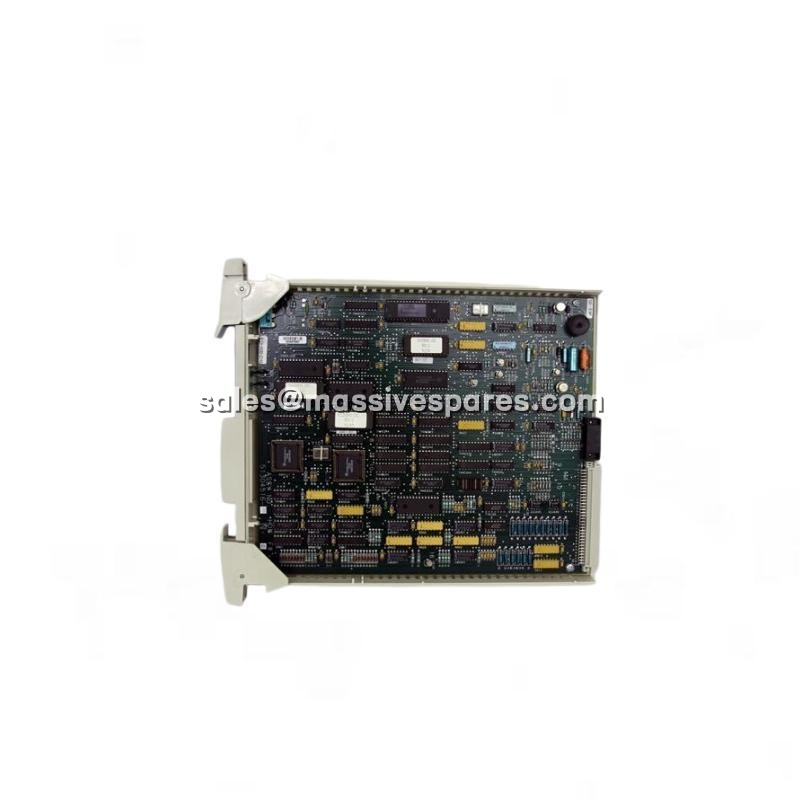

| Product Model | HONEYWELL 51304516-200 |
| Manufacturer | Honeywell |
| Product Category | Smart Transmitter Interface Processor (STIM IOP) |
| Module Model | MU-PSTX03 |
| System Compatibility | TDC 3000 / Universal Control Network (UCN) |
| Input Channels | 16 channels, independently configurable |
| Supported Transmitter Types | Single-variable, multivariable, smart transmitters |
| Input Signal Types | 4-20 mA current loop / Honeywell Digital Enhanced protocol (bidirectional) |
| Input Configuration | Single-ended or differential relative to ground |
| Redundancy Support | Yes |
| CE Compliance | Yes (replaces non-CE model 51304516-100) |
| Operating Temperature | -40°C to +85°C |
| Weight | Approx. 0.69 kg / 1.72 lb |
| Compatible FTA | Smart Transmitter Interface FTA series |
| Installation | Any card file slot |
Technical Principles and Innovative Values
Innovation Point 1: Bidirectional Smart Transmitter Communication. The 51304516-200 not only receives analog signals from transmitters but also enables bidirectional data flow through Honeywell’s Digital Enhanced protocol. This means the module can send configuration commands to smart transmitters, read device diagnostic information, and monitor transmitter health in real time. Compared to traditional input cards that only support unidirectional analog signals, this capability allows operators to perform remote transmitter calibration and troubleshooting from the control room, significantly reducing field maintenance workload .
Innovation Point 2: Independent Per-Channel Configuration Architecture. All 16 channels of the 51304516-200 can be independently configured, allowing mixed connection of smart transmitters and traditional single-variable transmitters in the same module, including flexible combinations of differential or single-ended wiring configurations. This design greatly enhances system integration flexibility, enabling plants to upgrade transmitter equipment progressively without replacing all input modules at once .
Innovation Point 3: CE Compliance with Unshielded Wiring Support. As a CE-compliant version (replacing non-CE model 51304516-100), the 51304516-200‘s companion FTA design does not require shielded field wiring, reducing cable costs and installation complexity. The module itself still maintains high interference immunity, preserving signal integrity in industrial electromagnetic environments .
