Description

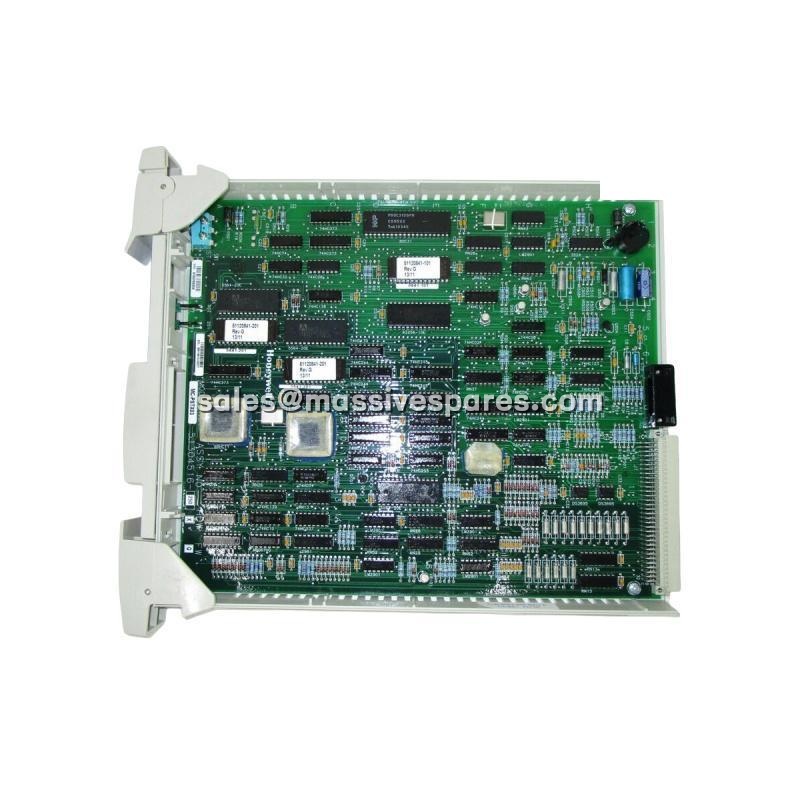

The 51304516-250 (base model MC-PSTX03) is a Smart Transmitter Interface Multivariable (STIM) I/O Processor (IOP) manufactured by Honeywell (Honeywell Process Solutions) for the TDC 3000 and Experion PKS distributed control architectures. It is the CE-compliant, conformally coated successor to the non-CE 51304516-100, purpose-built to sit in a card-file slot and serve as the dedicated interface layer between intelligent field transmitters and the control network.
In its core role, the 51304516-250 accepts up to 16 high-level analog inputs from smart transmitters, supports both single-variable and multivariable field instruments, and communicates over the Honeywell Digital Enhanced Protocol on the Universal Control Network (UCN). Each input channel can be independently configured as single-ended or differential with respect to ground. With channel-to-channel isolation, onboard signal conditioning, and robust EMC design, it is the module that turns raw field measurements into accurate, diagnosable process variables — without consuming controller scan time.
Application Scenarios
Picture a refinery crude unit where a TDC 3000 system monitors 14 process variables across three distillation columns: pressure, temperature, differential pressure (flow), and level — most of them coming from smart multivariable transmitters that carry not just the primary measurement but also static pressure, sensor temperature, and diagnostic status on the same 4–20 mA loop.
The instrument engineer needs to add a new reactor temperature profile without consuming scarce cabinet space or adding another full I/O rack. By installing a 51304516-250 STIM IOP in an available card-file slot and pairing it with the appropriate Smart Transmitter Interface FTA, the team connects 16 transmitter loops — including four multivariable temperature/pressure devices — in a single slot. The bidirectional Honeywell Digital Enhanced Protocol reads not only the process variable but also the transmitter’s self-diagnostics; conventional 4–20 mA and HART devices coexist on the same module because each channel is configured independently.
Within the same shift, the operator station is trending the new variables, and the maintenance team is receiving device-health alarms days before a calibration drift would have affected product quality. The cabinet footprint: one slot. The data: 16 channels plus diagnostics. The controller load: unchanged.
That is the practical value of the 51304516-250: high-density, intelligent field connectivity that makes adding measurements almost anticlimactic.
Parameter
| Main Parameters | Value / Description |
|---|---|
| Product Model | 51304516-250 (base model MC-PSTX03) |
| Manufacturer | Honeywell (Honeywell Process Solutions) |
| Product Category | Smart Transmitter Interface Multivariable (STIM) IOP |
| Alternate / Legacy Part | 51304516-100 (non-CE predecessor, directly replaced by -250) |
| Module Type | Transmitter Interface Processor (TIP / Smart TIP) |
| Input Channels | 16 configurable transmitter input channels |
| Supported Inputs | 4–20 mA / 0–20 mA high-level analog; smart single-variable & multivariable transmitters |
| Channel Configuration | Independently configurable as single-ended or differential (with respect to ground) |
| Communication Protocol | Honeywell Digital Enhanced Protocol (bidirectional); HART 7.0; UCN |
| Network Compatibility | Universal Control Network (UCN); peer-to-peer device communication |
| System Compatibility | Honeywell TDC 3000, Experion PKS |
| FTA Compatibility | Supports Smart Transmitter Interface FTAs; installs in any card-file slot |
| Isolation | Channel-to-channel isolation; galvanic backplane barrier protection |
| Signal Conditioning | Onboard filtering, line-impedance compensation, cold-junction compensation (CJC) |
| Redundancy | Supported (with compatible Honeywell controllers / UCN redundant devices) |
| Compliance | CE compliant (EMC enhanced) |
| Coating | Conformal coating (humidity & contaminant protection) |
| Power Consumption | 12 W typical @ 24 VDC (some sources cite 5 W typical) |
| EMC Features | Low-pass filtered backpanel IOP connectors; integrated IOP ground panels; rear backpanel shield assembly |
| Diagnostics | Continuous self-diagnostics; LED status indicators; fault detection |
| Mounting | Card-file slot / backplane IOP slot (HPMM / IOP card-slot form factor) |
| Dimensions | Standard IOP card-slot form factor (approx. 150 × 80 × 35 mm) |
| Weight | 0.35–0.79 kg (sources vary; typical ~0.5 kg) |
| Operating Temperature | 0 °C to +60 °C (standard TDC 3000 range; some sources cite -40 °C to +85 °C for extended) |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95 % RH, non-condensing |
| Enclosure | IP20 (when installed in TDC 3000 rack) |
| Certifications | CE (EMC); system-dependent UL / CSA |
